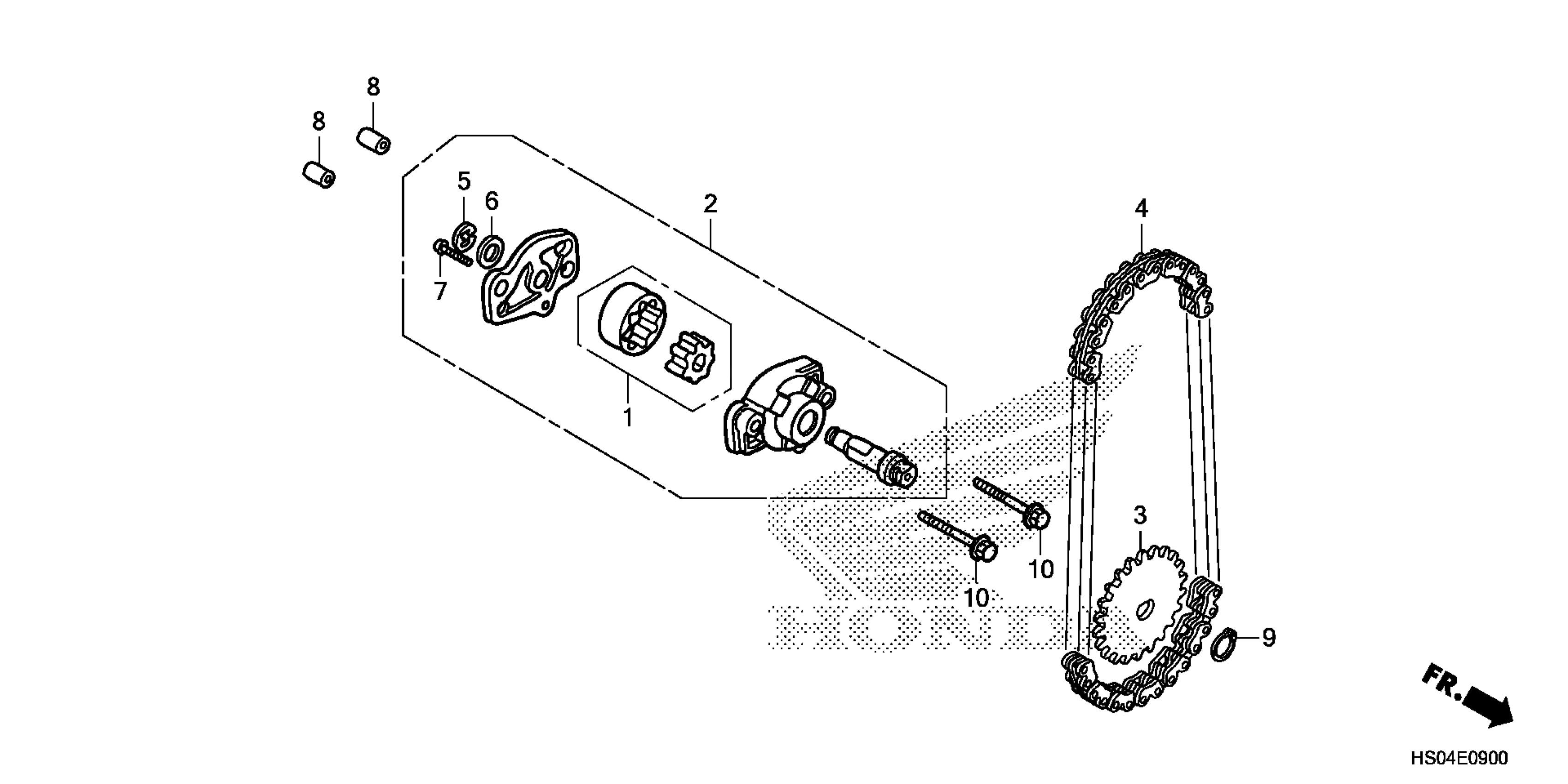

Honda TRX250TM1AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE213-K4300001 OIL PUMP Diagram

#

Description

Price

1

ROTOR SET, OIL PUMP (NA USE ALT:15100-HS0-A00)

15021-HS0-A00

Unavailable

2

PUMP ASSY., OIL

15100-HS0-A00

$126.29

3

SPROCKET, OIL PUMP DRIVEN (22T)

15133-HM8-000

$16.32

4

CHAIN, OIL PUMP (46L)

15141-HM8-003

$15.44

5

E-RING (5MM) (NA USE ALT:15100-HS0-A00)

15336-HS0-A00

Unavailable

6

WASHER (6.1MM) (NA USE ALT:15100-HS0-A00)

90435-HS0-A00

Unavailable

7

SCREW, PAN (3X12)

93500-03012-0A

$0.76

7

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$0.76

8

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

9

CIRCLIP (OUTER) (10MM)

94510-10000

$1.01

10

BOLT, FLANGE (6X35)

95701-06035-00

$1.74
