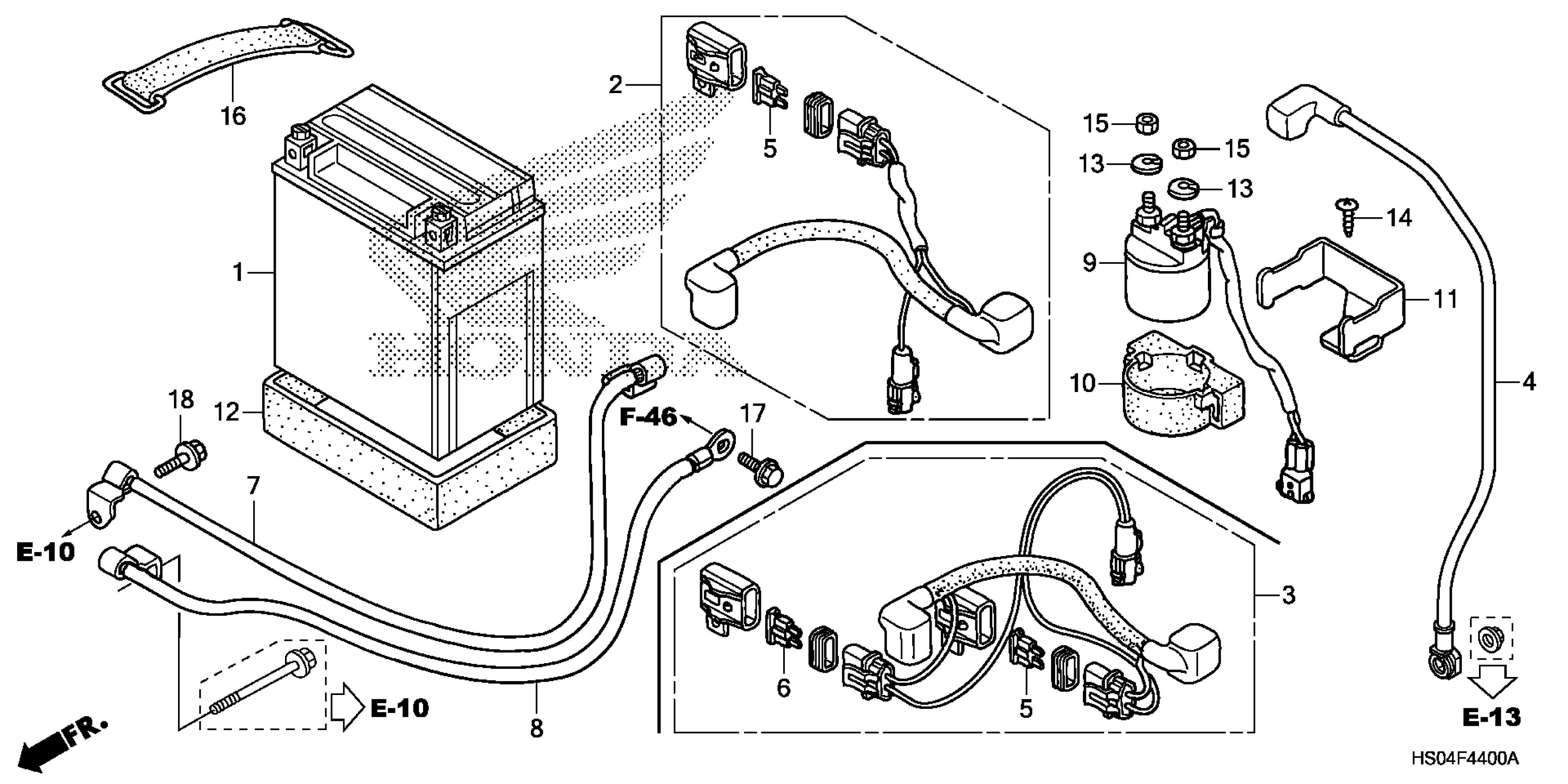

Honda TRX250TM1AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE213-K4300001 BATTERY Diagram

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

BATTERY (YTX12-BS) This part replaces 31500-HF1-678AH.

31500-HS0-AK1AH

Unavailable

CABLE, STARTER BATTERY

32401-HM8-B60

$62.44

CABLE, STARTER MOTOR

32402-HM8-B60

$34.70

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

CABLE, BATTERY GROUND

32601-HM8-B00

$24.30

CABLE, FRAME GROUND

32603-HM8-B00

$37.54

SWITCH ASSY., STARTER MAGNETIC

35850-HM8-B00

$57.09

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

RUBBER, BATTERY BAND

50383-HF1-670

$8.08

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
