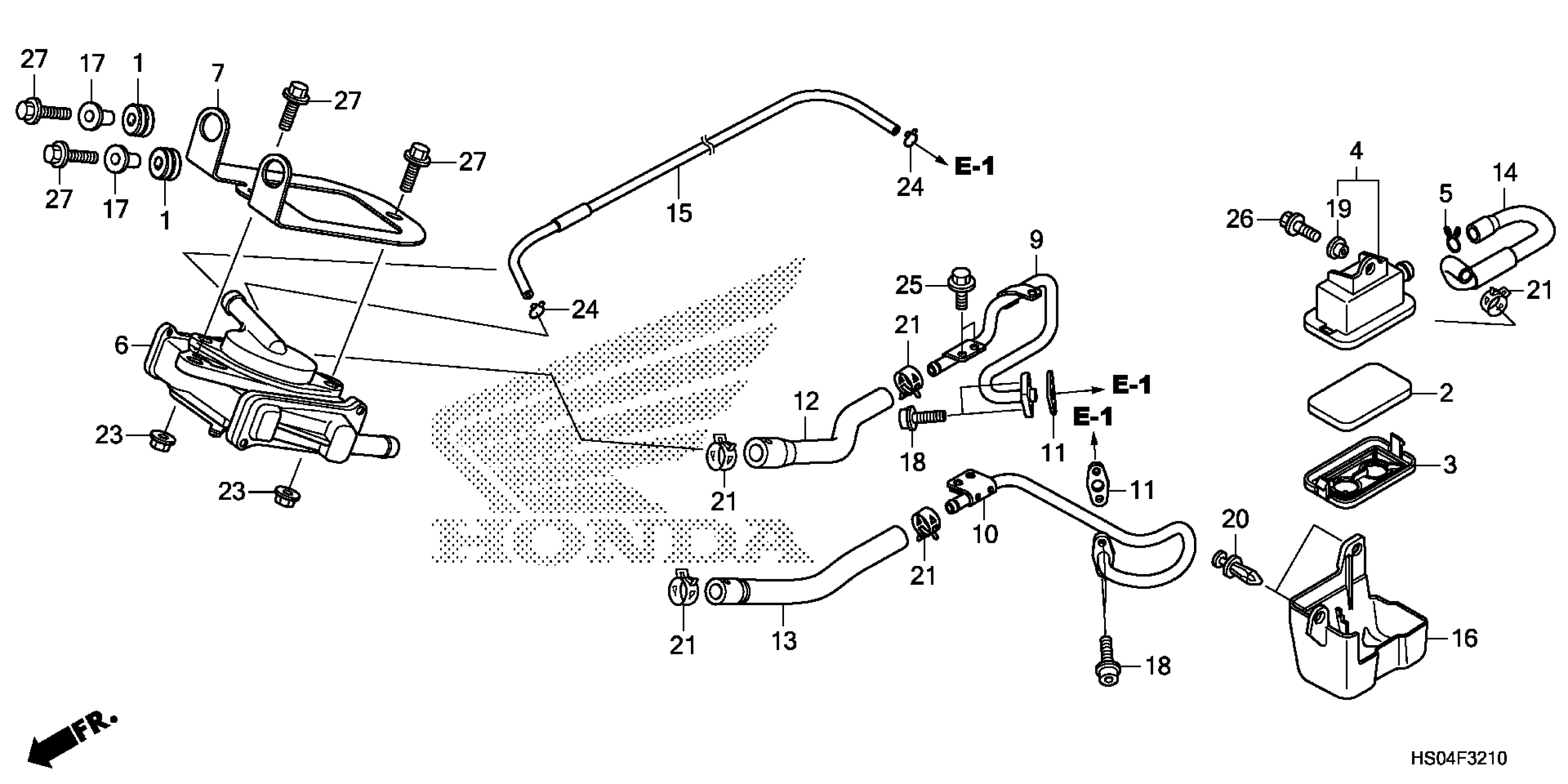

Honda TRX250TM1AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE213-K4300001 AIR SUCTION VALVE Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

FILTER, SUB-AIR CLEANER

17255-HS0-A00

$1.57

COVER, SUB-AIR CLEANER

17256-KBH-000

$12.95

CASE, SUB-AIR CLEANER

17256-MR7-010

$15.48

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

VALVE ASSY., AIR SUCTION

18600-HS0-A01

$113.77

STAY, AIR SUCTION VALVE MOUNT

18601-HS0-A00

$1.93

PIPE, R. AIR SUCTION

18640-HS0-A00

$134.70

PIPE, L. AIR SUCTION

18643-HS0-A00

$117.87

GASKET, AIR FEED PIPE

18645-HS0-A00

$1.49

HOSE, R. AIR SUCTION (A)

18651-HS0-A00

$24.98

HOSE, L. AIR SUCTION (A)

18652-HS0-A00

$26.72

HOSE, AIR SUCTION (B)

18653-HS0-A00

$17.62

TUBE, PB

18655-HS0-A00

$2.97

PROTECTOR, SUB-AIR CLEANER

18658-HS0-A00

$5.26

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

BOLT, FLANGE SOCKET (6X20)

90097-MY6-880

$4.39

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, FUEL HOSE

90678-MN5-000

$2.59

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

BOLT, FLANGE (6X10)

95701-06010-02

$1.55

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
