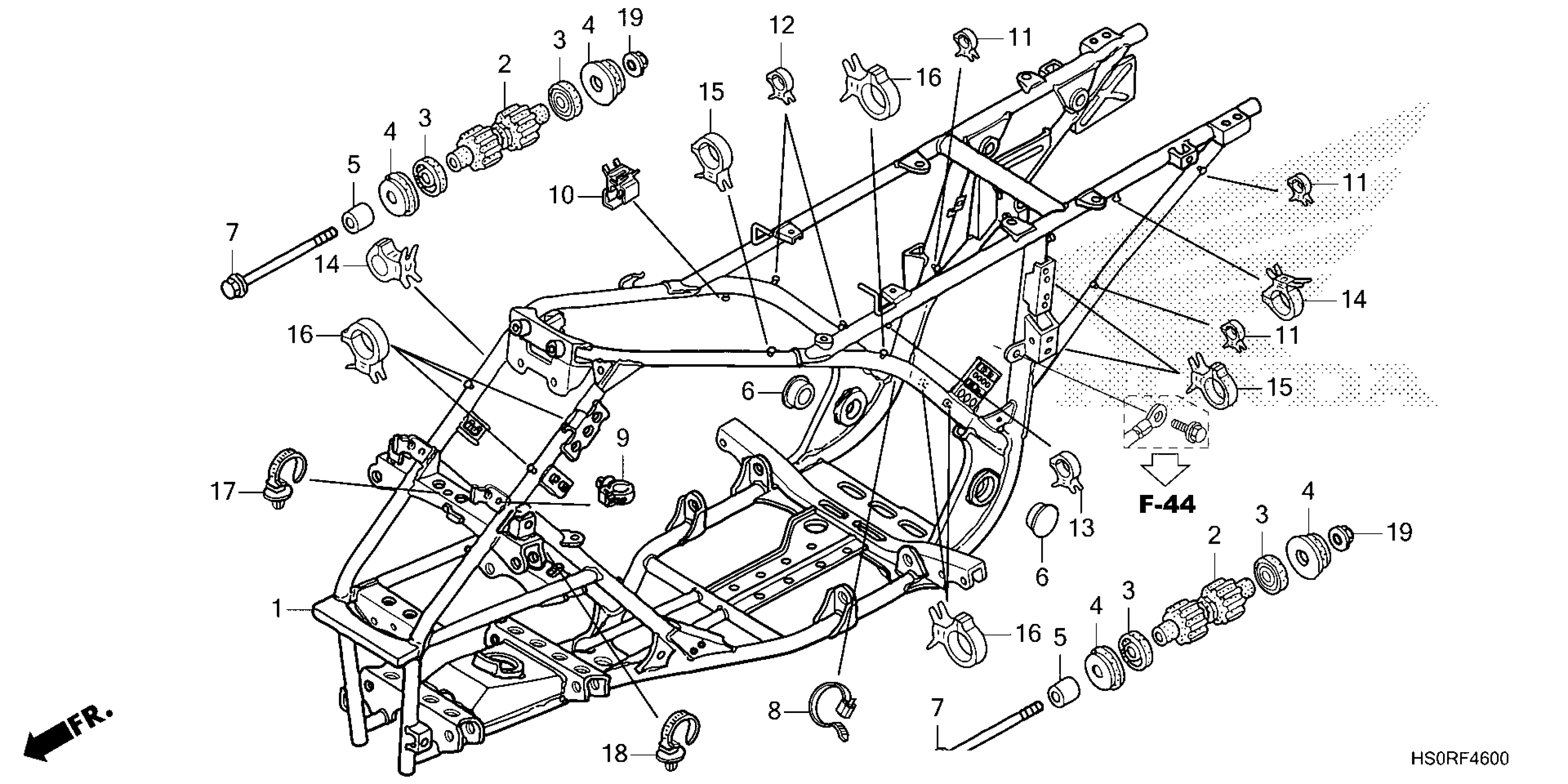

Honda TRX250TM1A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE219-R4800001 TO 1HFTE219-R4899999 FRAME Diagram

FRAME

50100-HS0-AF0

$815.93

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-B41

$17.23

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$19.10

RUBBER C, MOUNTING

50204-HM8-000

$6.76

COLLAR, ENGINE HANGER

50304-HN8-000

$5.13

CAP, MAIN STAND PIPE

50750-MB0-000

$5.73

BOLT, FLANGE (10X145)

90115-HM8-003

$6.39

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$3.13

CLIP, CABLE (8MM)

90690-GHB-631

$2.25

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.25

CLIP, CABLE (15MM)

90690-GHB-651

$2.25

CLIP, CABLE (20MM)

90690-GHB-661

$2.25

CLIP, CABLE (25MM)

90690-GHB-671

$2.25

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.90

NUT, FLANGE (10MM)

94050-10000

$1.52
