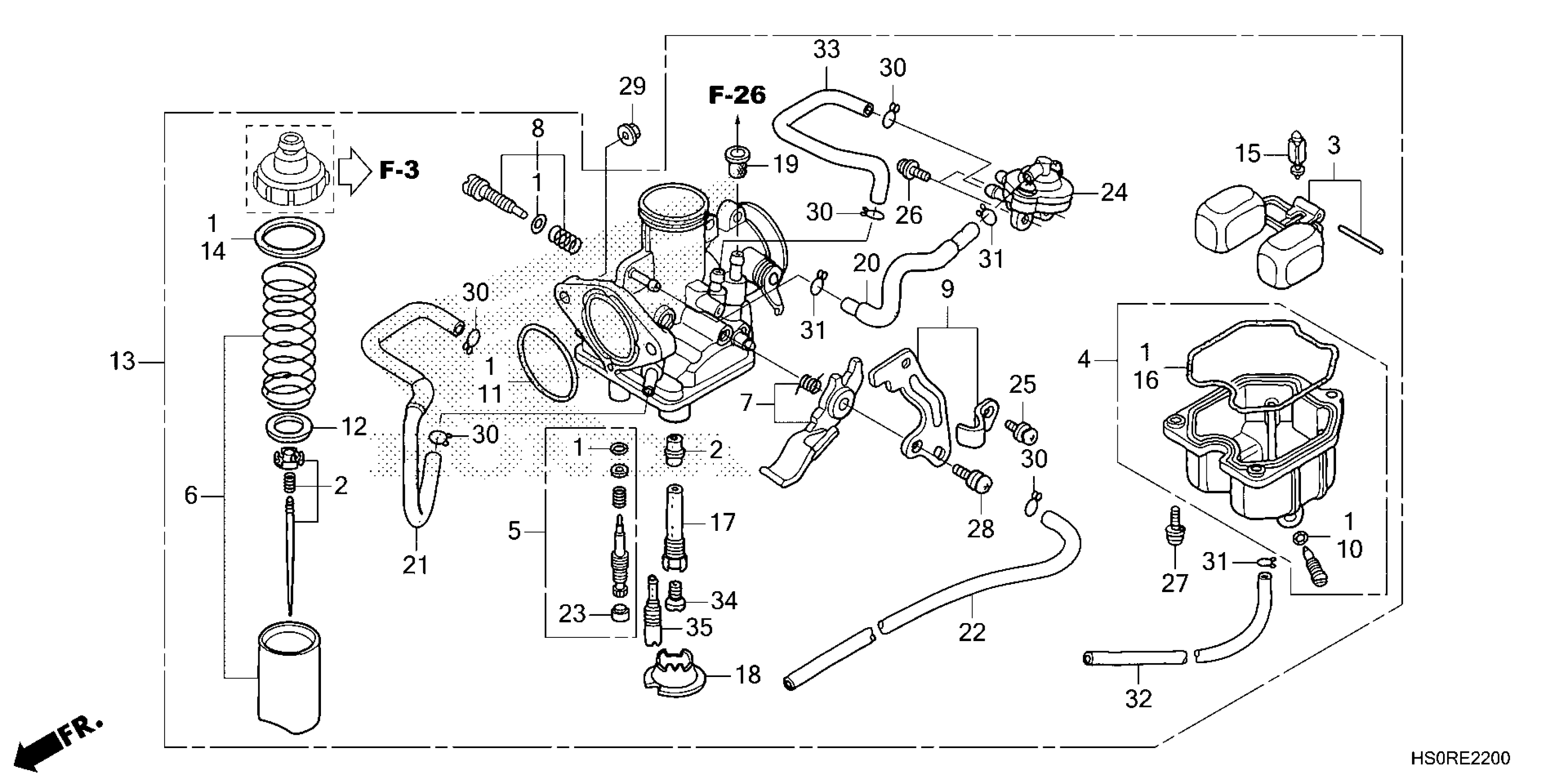

Honda TRX250TM1A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE219-R4800001 TO 1HFTE219-R4899999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KEB-G01

$38.27

2

NEEDLE SET, JET

16012-HS0-A01

$20.92

3

FLOAT SET

16013-KRP-981

$7.82

4

CHAMBER SET, FLOAT

16015-HN6-003

$126.98

5

SCREW SET A

16016-HM8-B61

$22.08

6

VALVE SET, THROTTLE

16022-HM8-B01

$35.38

7

LEVER SET, CHOKE

16025-HM8-B01

$19.07

8

SCREW SET B

16028-KEB-G01

$11.16

8

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$11.16

9

PLATE SET, STAY

16035-HM8-000

$42.62

10

O-RING (1.3X4.3)

16075-GHB-640

$2.92

11

O-RING (2.4X29)

16075-GHB-B70

$7.58

12

PLATE B, VALVE

16092-HM8-A01

$5.79

13

CARBURETOR ASSY. (PDC1N A)

16100-HS0-A01

$126.92

14

GASKET, TOP

16110-KN4-651

$7.92

15

VALVE, FLOAT

16155-KFR-701

$25.50

16

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.14

17

HOLDER, NEEDLE JET

16165-HS0-A01

$12.90

18

HOLDER, JET

16168-382-014

$8.37

19

SCREEN, FUEL STRAINER

16176-HM8-B01

$30.93

20

TUBE

16197-HM8-000

$2.75

21

TUBE

16198-HM8-000

$2.92

22

TUBE

16199-HM8-B41

$9.43

23

CAP, ADJUSTING SCREW

16312-KYK-911

$2.79

24

VALVE ASSY., AIR CUT

16510-HM8-B01

$83.67

25

SCREW-WASHER (4X8)

93892-04008-08

$1.18

25

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.18

26

SCREW-WASHER (4X14)

93892-04014-08

$1.08

26

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.08

27

SCREW-WASHER (4X16)

93892-04016-08

$0.75

27

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.75

28

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.18

28

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.18

29

NUT, FLANGE (6MM)

94050-06000

$0.64

30

CLIP, TUBE (B1 8)

95002-02089

Unavailable

31

CLIP, TUBE (B6.5)

95002-02659

$1.13

32

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$12.83

33

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$31.01

34

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.74

34

JET, MAIN (#98)

99101-GHB-0980

$6.21

35

JET, SLOW (#38)

99103-MT2-0380

$20.69
