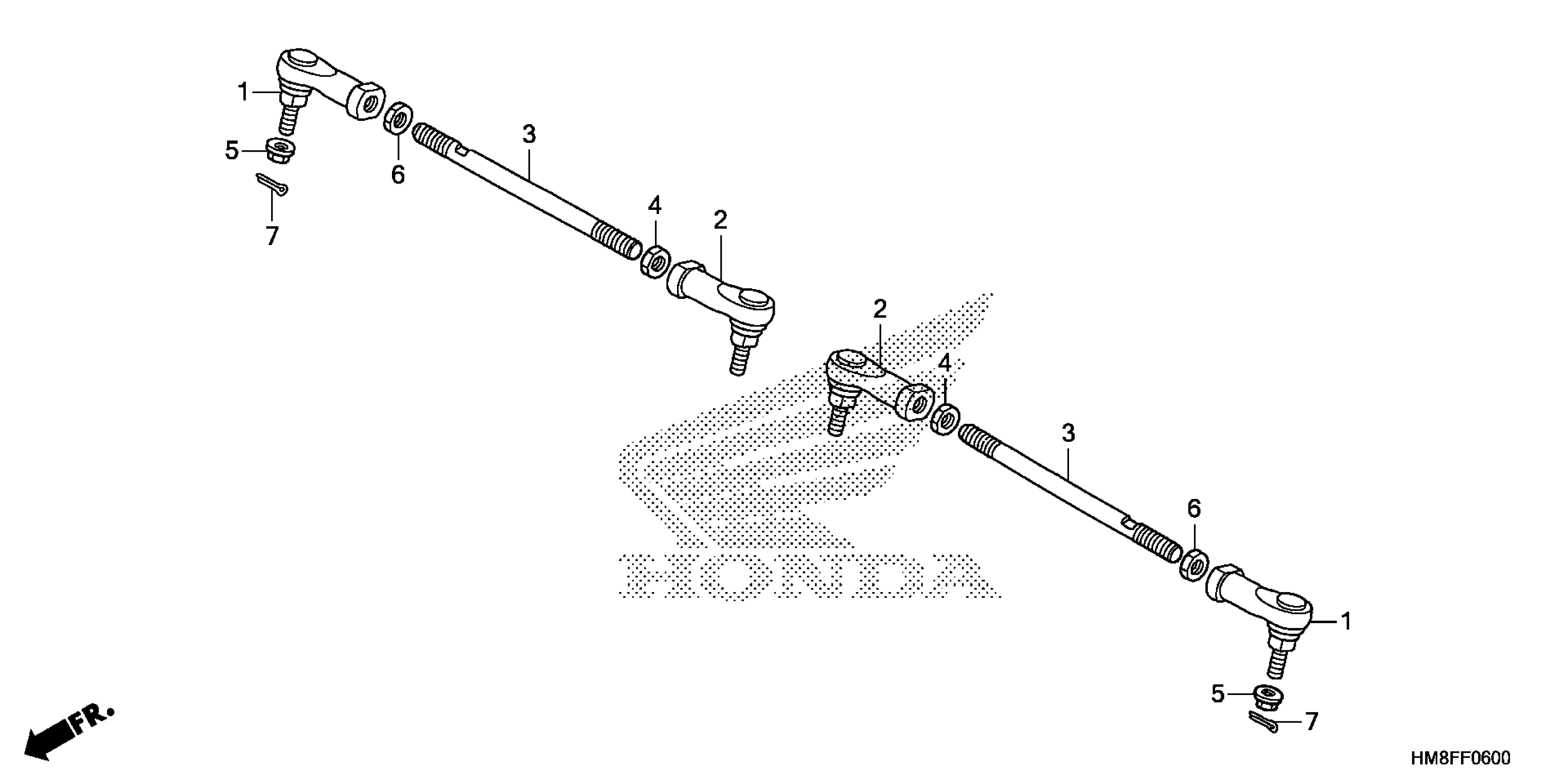

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 TIE ROD Diagram

END, R. TIE ROD (RIGHT HAND THREAD)

53157-HP5-003

$11.90

END, L. TIE ROD (LEFT HAND THREAD)

53158-HP5-003

$11.90

TIE ROD

53521-HM8-000

$13.49

NUT, TIE ROD LOCK (LEFT HAND THREAD)

53526-679-000

$3.10

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

NUT, HEX. (12MM)

94031-12280

$1.49

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, SPLIT (2.0X35)

94201-20350

$1.49
