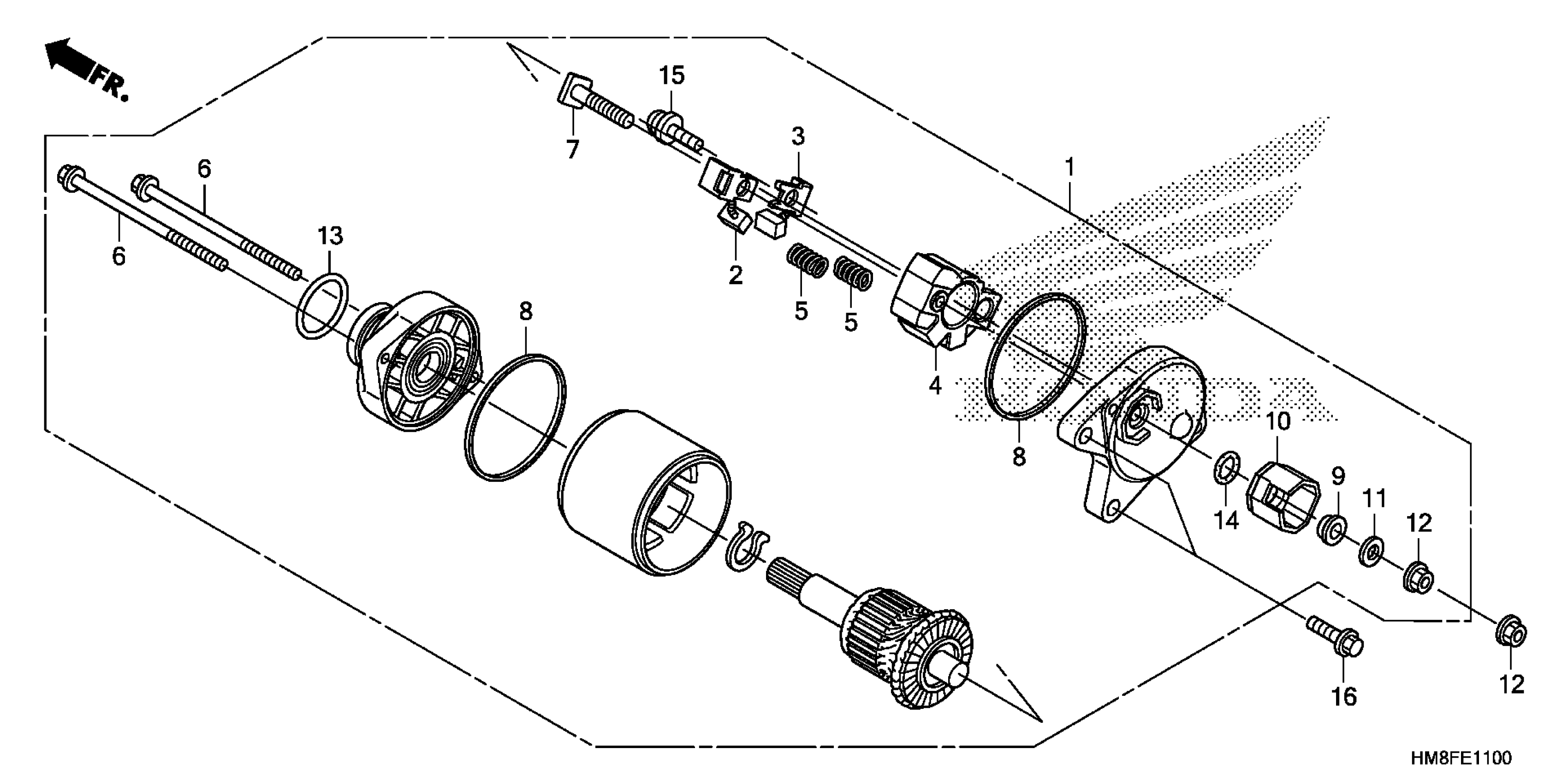

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 STARTING MOTOR Diagram

Description

Price

STARTER MOTOR ASSY.

31200-HM8-B61

$460.04

BRUSH SET A, CARBON

31201-KPC-D51

$7.45

BRUSH SET B, CARBON

31202-KPC-D51

$8.66

HOLDER, BRUSH

31203-KPC-D51

$7.64

SPRING, CARBON BRUSH

31204-MEW-921

$11.33

BOLT SET

31205-HM8-B61

$3.81

BOLT, TERMINAL

31206-MEW-921

$2.67

RING

31207-HP5-601

$1.96

INSULATOR

31208-MEW-921

$6.97

STOPPER, TERMINAL

31209-MEW-921

$10.35

WASHER

31210-MEW-921

$1.65

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

SCREW-WASHER (5X12)

93892-05012-08

$1.04

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
