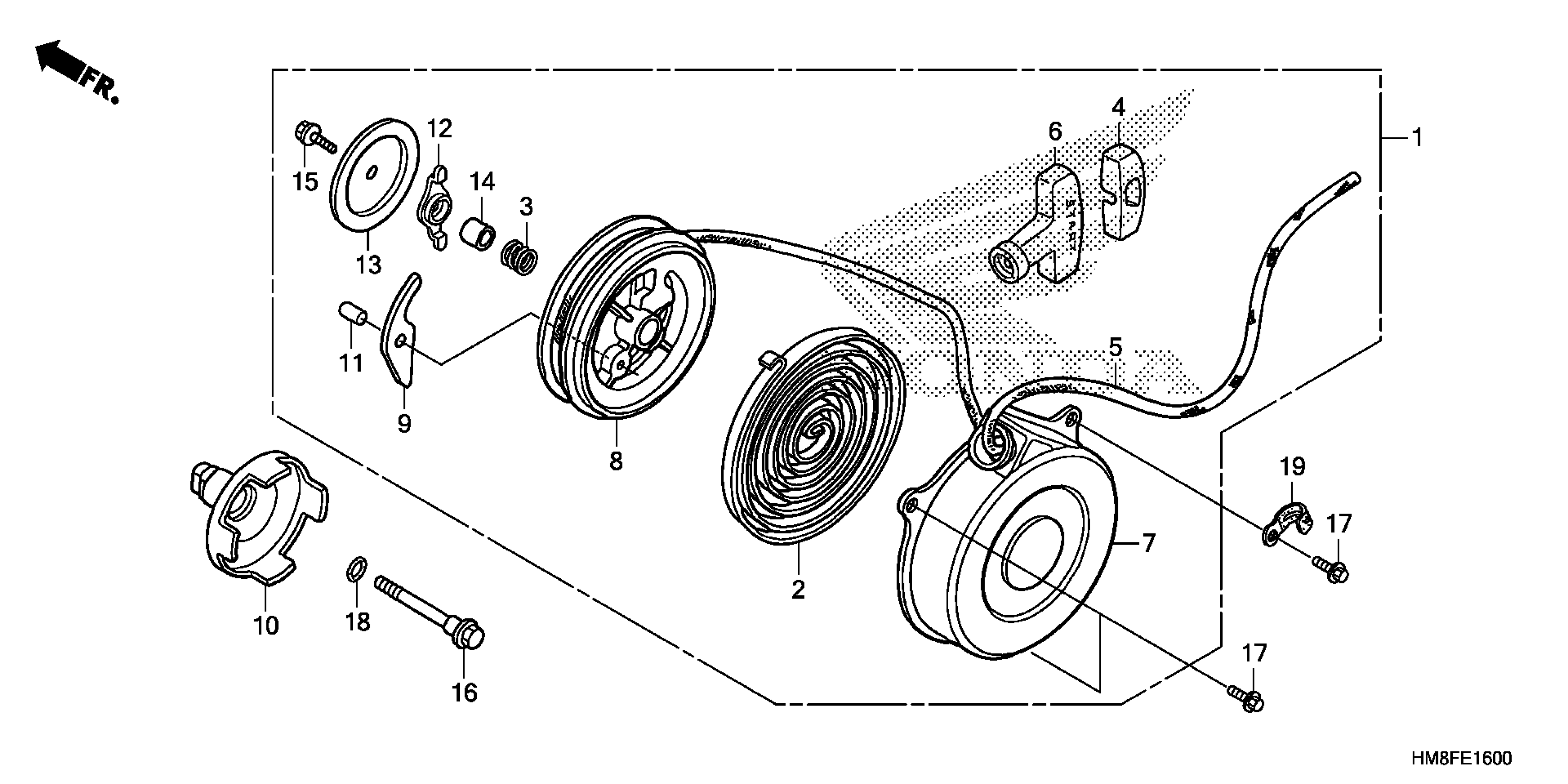

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 RECOIL STARTER Diagram

Description

Price

STARTER ASSY., RECOIL

28400-HM8-B22

$22.41

SPRING, RECOIL STARTER

28402-HB6-004

$31.41

SPRING, FRICTION

28404-HN5-M01

$13.34

CAP, KNOB

28405-HN5-M01

$5.59

ROPE, RECOIL STARTER

28407-HN5-M01

$5.65

KNOB, STARTER

28408-HN5-M01

$20.84

CASE, RECOIL STARTER

28410-HM8-B22

$23.59

REEL, RECOIL STARTER

28420-HM8-A61

$14.57

RATCHET, STARTER

28422-ZE1-003

$4.80

PULLEY, RECOIL

28430-HM8-A40

$85.42

PIN, STARTER RATCHET

28432-HB6-004

$2.48

GUIDE, RATCHET

28433-HN5-M01

$5.64

PLATE, FRICTION

28434-HN5-M01

$14.92

COVER, SPRING

28446-968-004

$5.84

BOLT

28448-HN5-M01

$5.11

BOLT, FLANGE UBS (10X66)

90001-HM8-000

$4.94

BOLT, FLANGE (6X14)

90105-MCE-750

$1.49

O-RING (1.5X9.5)

91306-MG3-000

$2.33

CLIP (2X60)

91410-679-000

$10.06
