Description

Price

1

SHOE SET, BRAKE (INCLUDES 4 SHOES)

06450-HC4-900

$39.28

2

CUP, PISTON

43325-567-003

$8.56

3

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

4

CAP, BLEEDER

43353-461-771

Unavailable

5

PLATE, BACK

45110-HM8-A01

$64.57

6

SPRING, SHOE HOLDER (NISSIN)

45172-HB3-003

$6.05

7

SPRING, BRAKE

45173-HC4-006

$4.31

8

PIN, TENSION

45175-VM0-003

$3.61

9

PISTON, WHEEL CYLINDER (NISSIN)

45314-HC4-006

$20.40

10

NUT, R. ADJUSTER

45316-VM0-003

$7.90

11

SCREW, R. ADJUSTING

45317-634-013

$5.16

12

SPRING, LOCK

45318-HB3-003

$5.79

13

SCREW-WASHER (4X6)

45319-634-003

$2.29

14

NUT, L. ADJUSTER

45336-VM0-003

$8.46

15

SCREW, L. ADJUSTING

45337-634-013

$5.53

16

ADJUSTER ASSY. (NISSIN)

45340-HB3-003

$48.80

17

BOOT, WHEEL CYLINDER

45342-HB3-003

$5.87

18

CYLINDER ASSY., R. FR. WHEEL

45350-HM8-B41

$31.01

19

CYLINDER ASSY., L. FR. WHEEL

45370-HM8-B41

$31.01

20

BOLT, FLANGE (8X12)

90115-HM4-930

$3.69

21

CLIP, PISTON (NISSIN)

90661-HC4-006

$3.71

22

O-RING (14X1.5)

91351-VM0-003

$2.41

23

BOLT-WASHER (6X12)

93402-06012-08

$1.63

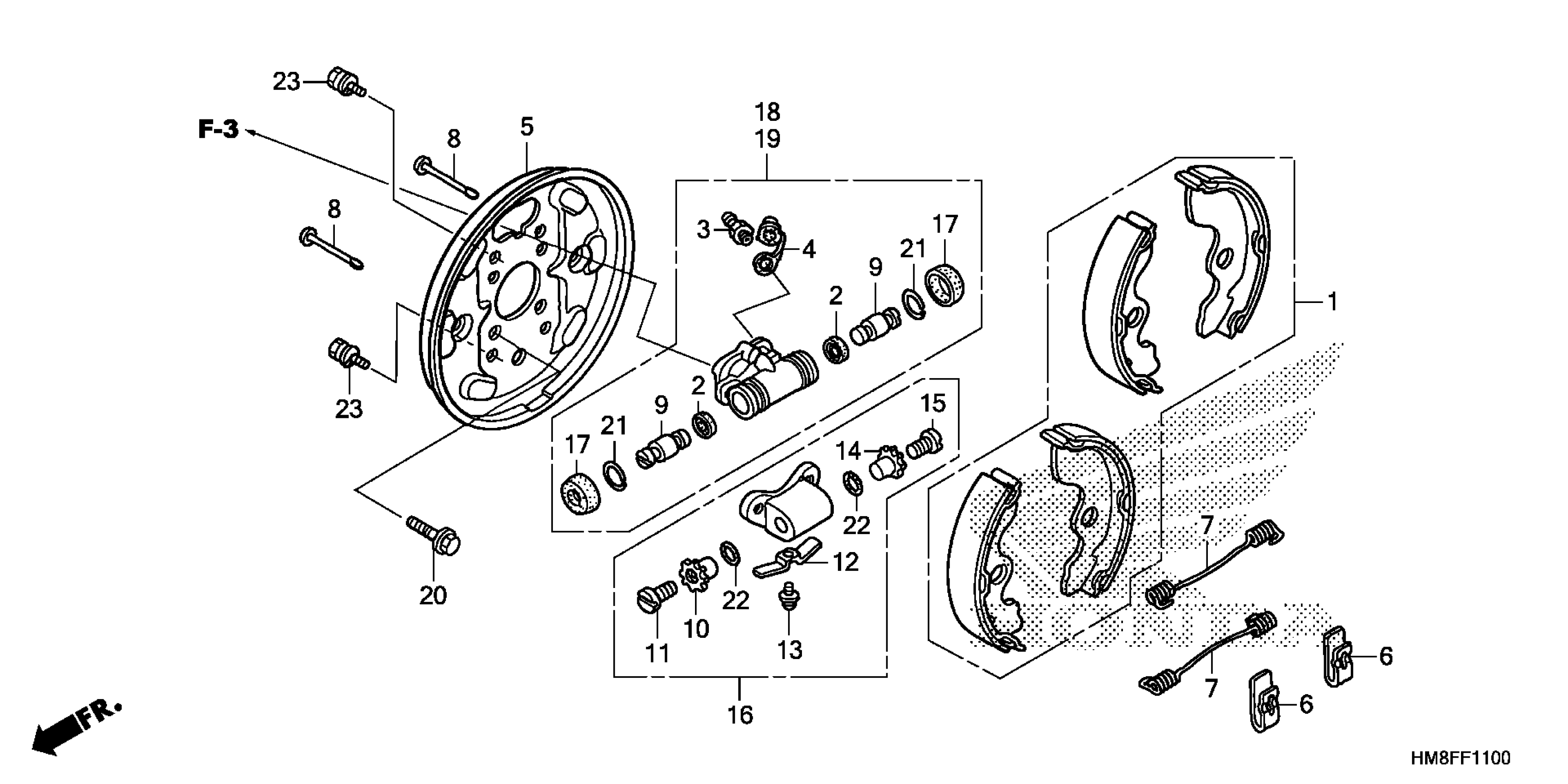

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 FRONT BRAKE PANEL Diagram
