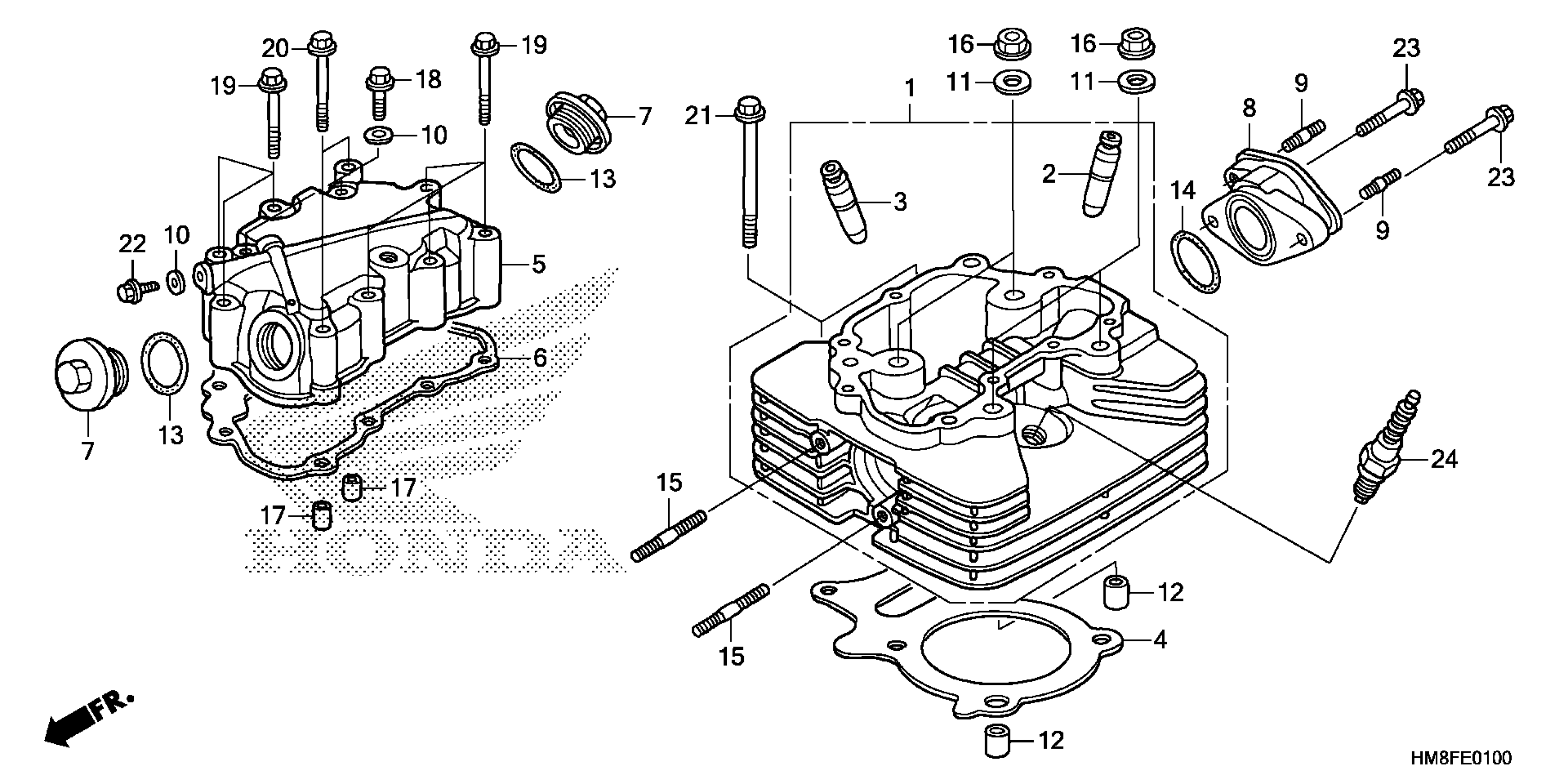

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD COMP,CYLINDE This part replaces 12200-HM8-A40.

12200-HM8-305

$775.31

2

GUIDE, VALVE (OVER SIZE)

12204-HM8-306

$15.70

3

GUIDE, EX. VALVE (OVER SIZE)

12205-HM8-306

$15.70

4

GASKET, CYLINDER HEAD

12251-HN6-000

$20.28

5

COVER, CYLINDER HEAD

12310-HN6-010

$161.79

6

GASKET, HEAD COVER

12315-HN6-010

$17.82

7

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

7

CAP, VALVE ADJ.

12361-300-000

Unavailable

7

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

8

INSULATOR, CARBURETOR

16210-HN6-000

$49.63

9

BOLT, STUD (6X18)

90011-HM8-000

$3.42

10

WASHER, SEALING (6MM)

90441-706-000

$1.49

11

WASHER (8MM)

90465-MC4-000

$2.51

12

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.28

12

PIN A, DOWEL (10X14)

94301-10140

$2.28

13

O-RING (30.8MM)

91302-001-020

$3.75

14

O-RING (33.7X2.4)

91305-HA0-680

$8.66

15

BOLT, STUD (8X25)

92900-08025-0B

$2.20

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

20

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

21

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

23

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

24

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

24

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

24

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

24

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

24

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

24

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
