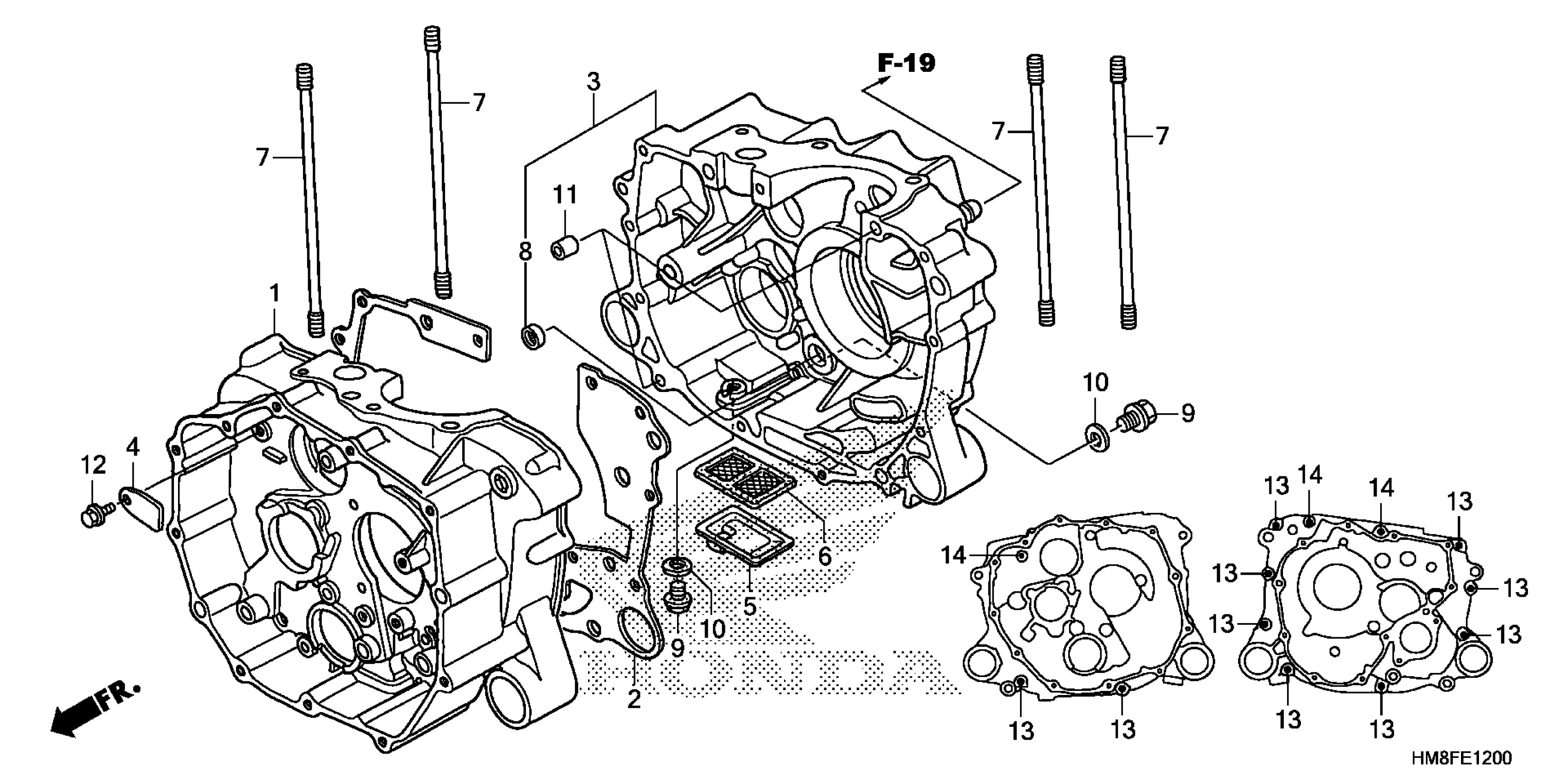

Honda TRX250TEAC (14) RECON ES, USA, VIN# 1HFTE214-E4500001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, FR.

11100-HM8-A40

$445.87

2

GASKET, CRANKCASE

11191-HM8-000

$23.64

3

CRANKCASE, RR.

11200-HM8-A40

$445.94

4

PLATE, CAM FIXING

14115-HM8-000

$4.37

5

STRAINER, OIL

15153-HM8-000

$5.84

6

SCREEN, OIL FILTER

15421-ZE9-003

$10.61

7

BOLT, STUD (8X161)

90031-HN6-000

$5.50

8

BEARING, NEEDLE (22X28X12)

91008-HB5-003

$14.66

9

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.08

10

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

11

PIN, DOWEL (8X14)

94301-08140

$2.62

12

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

13

BOLT, FLANGE (6X40)

95701-06040-00

$1.74

14

BOLT, FLANGE (6X65)

95701-06065-00

$1.40
