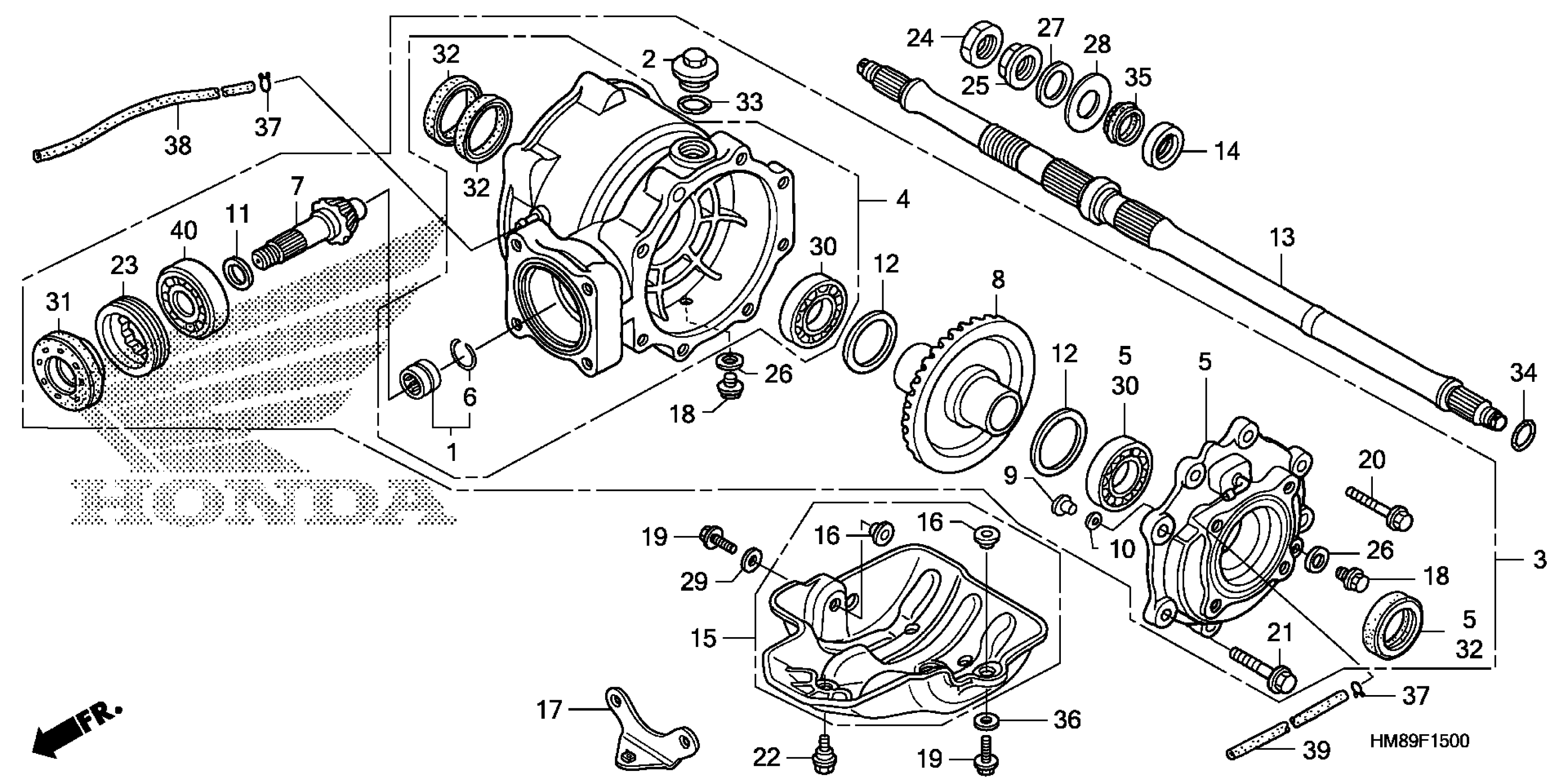

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 REAR FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM4-850

$31.53

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL

41300-HM8-B60

$1,999.16

4

CASE SET, FINAL

41311-HM8-000

$292.64

5

COVER SET, GEAR CASE

41320-HM8-020

$99.39

6

RING, STOPPER

41405-HA7-670

$2.97

7

GEAR, PINION

41421-HN5-670

$115.74

8

GEAR, RING

41431-HM8-000

$238.38

9

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

10

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

10

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

11

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

11

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

11

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

11

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

11

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

11

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

11

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

11

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

11

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

11

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

12

SPACER A, RING GEAR (1.26)

41540-HC4-000

$12.72

12

SPACER B, RING GEAR (1.32)

41541-HC4-000

$12.72

12

SPACER C, RING GEAR (1.38)

41542-HC4-000

$12.72

12

SPACER D, RING GEAR (1.44)

41543-HC4-000

$12.72

12

SPACER E, RING GEAR (1.50)

41544-HC4-000

$12.72

12

SPACER F, RING GEAR (1.56)

41545-HC4-000

$11.99

12

SPACER G, RING GEAR (1.62)

41546-HC4-000

$12.72

12

SPACER H, RING GEAR (1.68)

41547-HC4-000

$11.99

12

SPACER I, RING GEAR (1.74)

41548-HC4-000

$12.72

12

SPACER J, RING GEAR (1.80)

41549-HC4-000

$12.72

12

SPACER K, RING GEAR (1.86)

41550-HC4-000

$11.99

13

SHAFT, RR. AXLE

42311-HM8-000

$250.52

14

COLLAR, RR. AXLE

42625-HM8-000

$11.43

15

PLATE, SKID

50355-HM8-B40

$31.34

16

COLLAR, SKID PLATE

50358-HM8-B40

$4.58

17

STAY, SKID PLATE

52190-HN6-000

$3.97

18

BOLT, SEALING (8MM)

90109-371-000

$2.58

19

BOLT, FLANGE (8X20)

90131-GW0-750

$5.12

20

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

21

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

22

BOLT, FLANGE (8X18)

90186-HM8-B40

$1.52

23

NUT, LOCK (64MM)

90242-MB0-000

$32.52

24

NUT, RR. AXLE

90307-HM5-930

$3.40

25

NUT A, RR. AXLE

90308-HM5-930

$3.83

26

GASKET (8MM)

90471-580-000

$2.92

27

WASHER, TAPER

90481-HC4-000

$7.70

28

WASHER (32X60X1.5)

90501-HM8-000

$5.44

29

WASHER (8.5X26)

90504-MA6-000

$1.66

30

BEARING, RADIAL BALL (43X68X13)

91051-HC4-003

$47.70

31

OIL SEAL (34X70X11)

91251-HM8-003

$15.59

32

OIL SEAL (42X51X7)

91271-HC4-004

$10.65

33

O-RING (30.8MM)

91302-001-020

$3.75

34

O-RING (29.5X3)

91301-401-000

$3.53

34

O-RING (29.5X3) This part replaces 91302-436-003.

91301-401-000

$3.53

34

O-RING (29.5X3) This part replaces 91302-436-004.

91301-401-000

$3.53

35

RING, SEAL

91351-HB3-004

$3.78

36

WASHER, PLAIN (8MM)

94102-08800

$1.49

37

CLIP, TUBE (C6.5)

95002-35000

$1.49

38

BULK HOSE, VACUUM (3.5X1000) (3.5X800)

95005-35001-30M

$8.63

39

BULK HOSE, VACUUM (3.5X1000) (3.5X900)

95005-35001-30M

$8.63

40

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53
