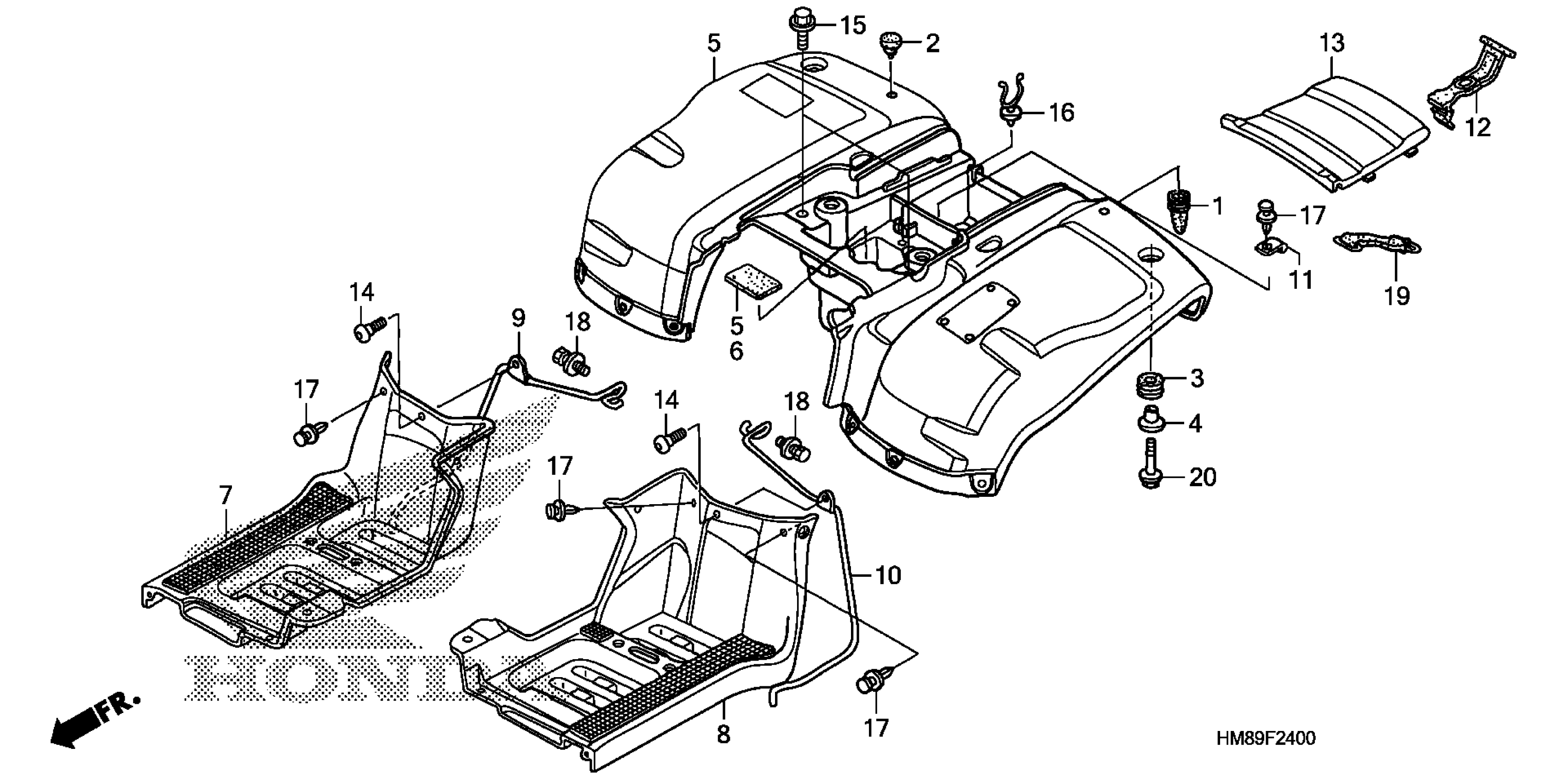

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 REAR FENDER Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$10.24

2

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

3

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

5

FENDER, RR. *G152* (ADVENTURE GREEN) | Adventure green G152;

80100-HM8-B80ZA

$197.64

5

FENDER, RR. *R232* (PATRIOT RED) | Patriot red R232;

80100-HM8-B80ZC

$186.32

6

RUBBER, BATTERY MOUNTING

80102-HN2-300

$1.49

7

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HM8-B00ZA

$63.05

8

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HM8-B00ZA

$63.05

9

STAY, R. RR. SPLASH GUARD

80123-HM8-B00

$7.58

10

STAY, L. RR. SPLASH GUARD

80124-HM8-B00

$7.58

11

STAY B, TOOL BOX

80132-HM8-000

$1.64

12

BAND, TOOL BOX

80214-HM5-850

$2.56

13

COVER, TOOL BOX *NH1* (BLACK)

80311-HM8-B00ZD

$12.18

14

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

15

BOLT, FLANGE (6MM)

90111-187-000

$5.59

16

CLAMP, HARNESS

90119-HA7-670

$3.72

17

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

18

BOLT-WASHER (6X16)

93404-06016-07

$1.55

19

BAND A, BATTERY

95012-11001

$2.92

20

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
