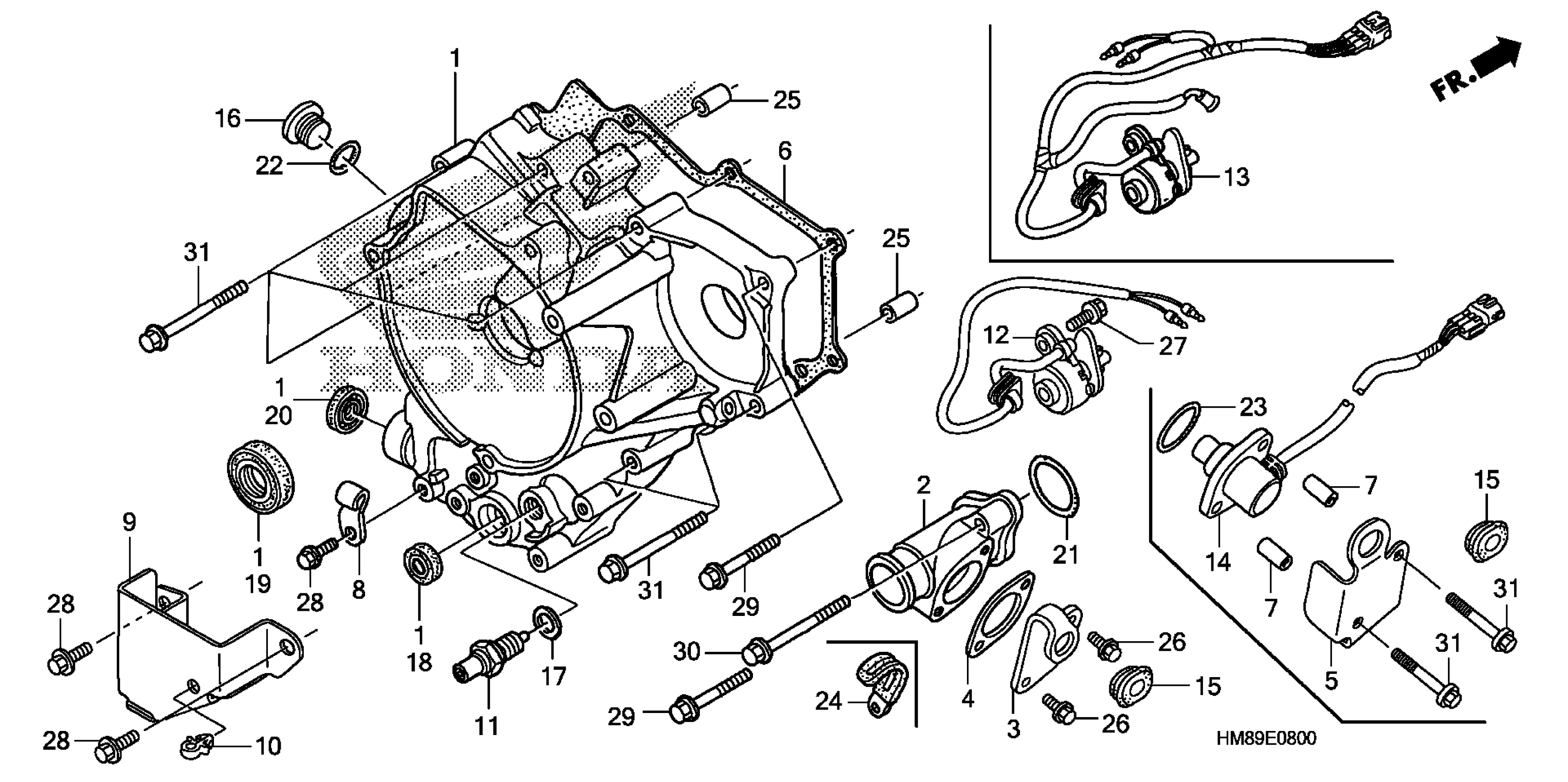

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 REAR CRANKCASE COVER Diagram

COVER, RR. CRANKCASE

11340-HM8-A50

$162.57

PROTECTOR, COUNTERSHAFT

11355-HM8-A41

$52.11

PROTECTOR, SPEED SENSOR

11359-HM8-B10

$8.93

GASKET, RR. CRANKCASE COVER

11395-HM8-A40

$15.12

COLLAR, SPEEDSENSOR PROTECTOR

18318-HM8-A50

$1.92

HOLDER, REVERSE STOPPER WIRE

24866-HM8-A40

$3.10

PROTECTOR, REVERSE LEVER

24880-HM8-B00

$10.90

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

SWITCH ASSY., CHANGE

35759-HM8-B10

$67.49

SENSOR ASSY., SPEED

37700-HM8-B10

$122.00

GROMMET, SIDE COVER

83551-HM5-730

$1.49

CAP (14MM)

90084-KY2-000

$15.97

WASHER, OIL BOLT

90545-300-000

$3.99

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

OIL SEAL (22X32X7) (ARAI)

91202-HB3-003

$9.96

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

O-RING (44.1X2.2) (NOK)

91302-P0Z-003

$7.02

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18.3X2.4) (NOK)

91321-PF4-004

$2.92

CLIP (2X60)

91410-679-000

$10.06

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
