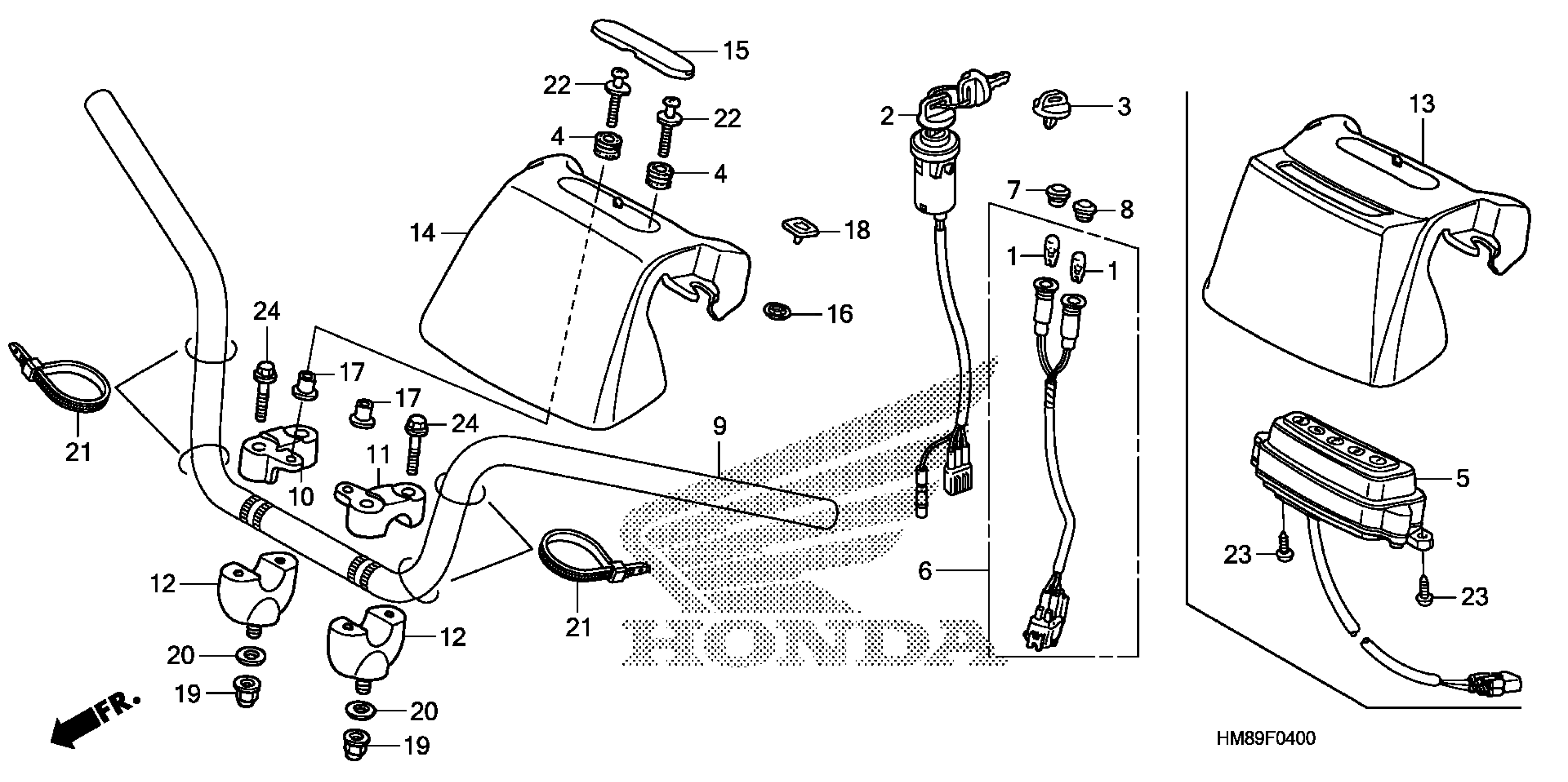

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 HANDLEBAR Diagram

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.31

SWITCH ASSY., IGNITION

35100-HM8-000

$56.61

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

RUBBER, MOUNTING

37215-HM5-670

$2.20

BOX, GEAR POSITION INDICATOR

37600-HM8-A51

$64.45

SOCKET ASSY., INDICATOR

37600-HN6-000

$58.67

LENS, NEUTRAL INDICATOR (GREEN)

37603-HM5-670

$3.73

LENS, REVERSE INDICATOR (ORANGE)

37604-HM8-B60

$6.84

HANDLEBAR

53100-HM8-B60

$142.36

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$18.84

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$18.84

HOLDER, HANDLE (LOWER)

53130-HB3-770

$21.17

COVER, HANDLE *NH1* (BLACK)

53205-HM8-B10ZA

$41.76

CAP, HANDLE COVER *NH1* (BLACK)

53206-HM8-000ZA

$2.08

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

COLLAR, COVER SETTING

83601-357-000

$5.56

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$7.66

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

WASHER (10.3MM)

90521-427-770

$2.28

BAND, WIRE HARNESS

90651-MA6-720

$3.73

SCREW-WASHER (6X20)

93894-06020-0H

$1.49

SCREW-WASHER (6X20)

93894-06020-08

$1.49

SCREW, TAPPING (5X16)

93903-25310

$1.49

BOLT, FLANGE (8X35)

95701-08035-08

$1.49
