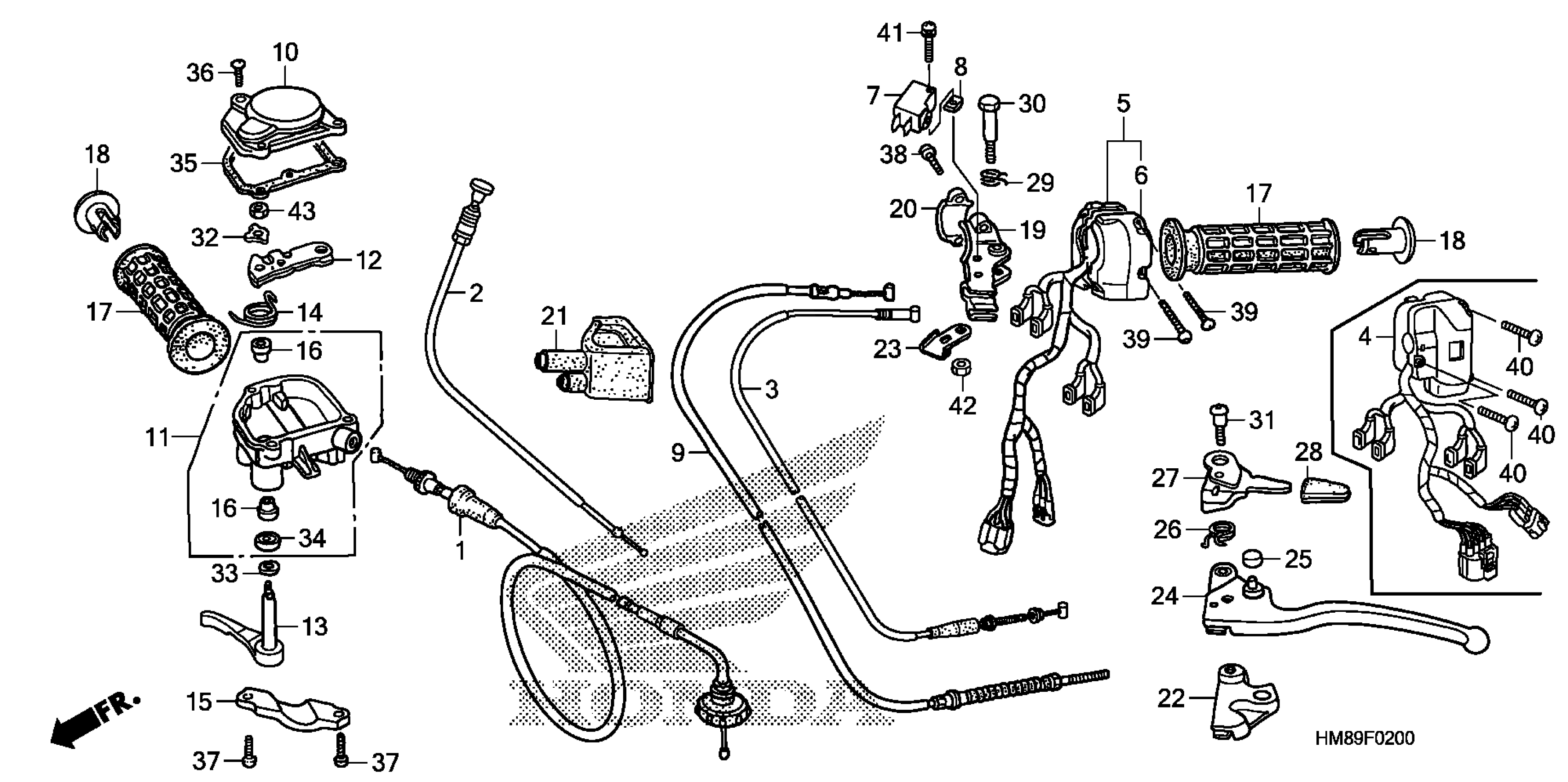

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HM8-B00

$50.40

2

CABLE, CHOKE

17950-HM8-B20

$9.32

3

CABLE, REVERSE ASSIST

22880-HM8-B00

$9.65

4

SWITCH ASSY., ELECTRIC SHIFT This part replaces 35140-HM8-B71.

35140-HM8-B73

$82.49

7

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

7

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

8

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

9

CABLE, HAND BRAKE

43460-HM8-B00

$10.92

10

COVER, THROTTLE CASE

53141-HP1-000

$36.58

11

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$50.26

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

15

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-HP5-600

$3.83

18

GUARD, HANDLE END

53167-HP5-600

$2.33

19

BRACKET, BRAKE LEVER

53172-HN5-M50

$18.11

20

HOLDER, LEVER BRACKET

53173-376-000

$10.95

21

COVER, L. HANDLE

53177-HN5-M40

$6.45

22

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

23

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$2.02

24

LEVER, RR. BRAKE

53180-HA8-770

$29.38

25

CAP, REVERSE PIN

53187-VM6-000

$3.89

26

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

27

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

28

CAP, PARKING LEVER

53193-HA0-770

$6.16

29

SPRING, PARKING LEVER RETURN

53193-HN5-C20

$3.10

30

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

33

WASHER (9X20)

90504-HA0-000

$2.28

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

35

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

36

SCREW, PAN (4X16)

93500-04016-0G

$1.49

37

SCREW, PAN (5X14)

93500-05014-0G

$3.67

38

SCREW, PAN (5X18)

93500-05018-0G

$1.49

40

SCREW, PAN (5X28)

93500-05028-0G

$1.49

41

SCREW-WASHER (4X20)

93893-04020-07

$1.49

42

NUT, HEX. (6MM)

94001-06070-0S

$1.49

43

NUT, HEX. (6MM)

94002-06000-0S

$1.49
