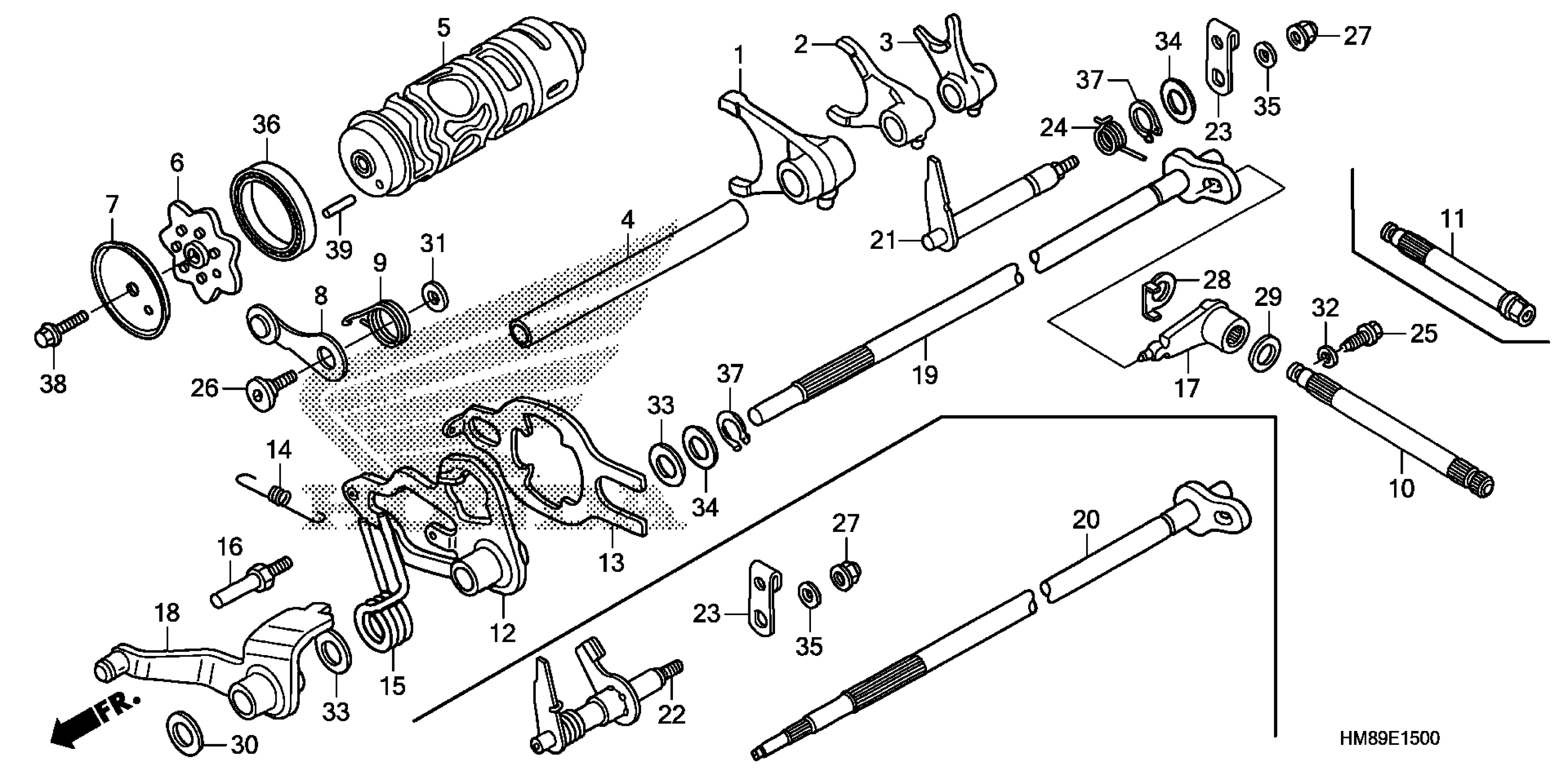

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HN6-000

$59.25

2

FORK, CENTER GEARSHIFT

24212-HM8-A40

$53.28

3

SWINGARM, GEARSHIFT

24213-HM8-A40

$53.28

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HF1-670

$20.13

5

DRUM, GEARSHIFT

24301-HM8-A40

$90.36

6

SHIFTER, DRUM

24321-HM8-B40

$24.97

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HM8-A40

$12.25

9

SPRING, SHIFT DRUM STOPPER

24435-HM8-A40

$2.89

11

SPINDLE, SECONDARY GEARSHIFT

24611-HM8-A50

$45.84

12

ARM, GEARSHIFT MASTER

24620-HF1-670

$44.72

13

PLATE, GEARSHIFT

24631-HM8-A40

$14.20

14

SPRING, SHIFT ARM

24641-HB3-004

$2.90

15

SPRING, GEARSHIFT RETURN

24651-HN6-000

$6.90

16

PIN, RETURN SPRING

24652-KY4-900

$7.99

17

ARM A, GEARSHIFT

24661-HM8-A40

$29.56

18

ARM, SUB-GEARSHIFT SPINDLE

24670-HM8-A40

$34.33

20

SPINDLE, GEARSHIFT

24680-HM8-A50

$72.21

22

SHAFT, REVERSE STOPPER

24860-HM8-A50

$39.64

23

LEVER, REVERSE STOPPER

24865-HN5-670

$4.49

25

BOLT, SPECIAL FLANGE (6X15.2)

90009-HN5-670

$2.90

26

PIVOT, SHIFT DRUM STOPPER ARM

90022-HM8-A40

$2.48

27

NUT, U (6MM)

90301-473-003

$4.07

30

WASHER (10X21.5)

90413-GE0-000

$3.90

31

WASHER, DRUM STOPPER

90417-360-000

$1.74

32

WASHER, SEALING (6MM)

90442-397-000

$2.28

33

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

34

WASHER, THRUST (12MM)

90452-166-600

$2.39

35

WASHER, CRANK ARM

90545-044-000

$1.75

36

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

37

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

38

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

39

ROLLER (4X13.8)

96220-40138

$1.49
