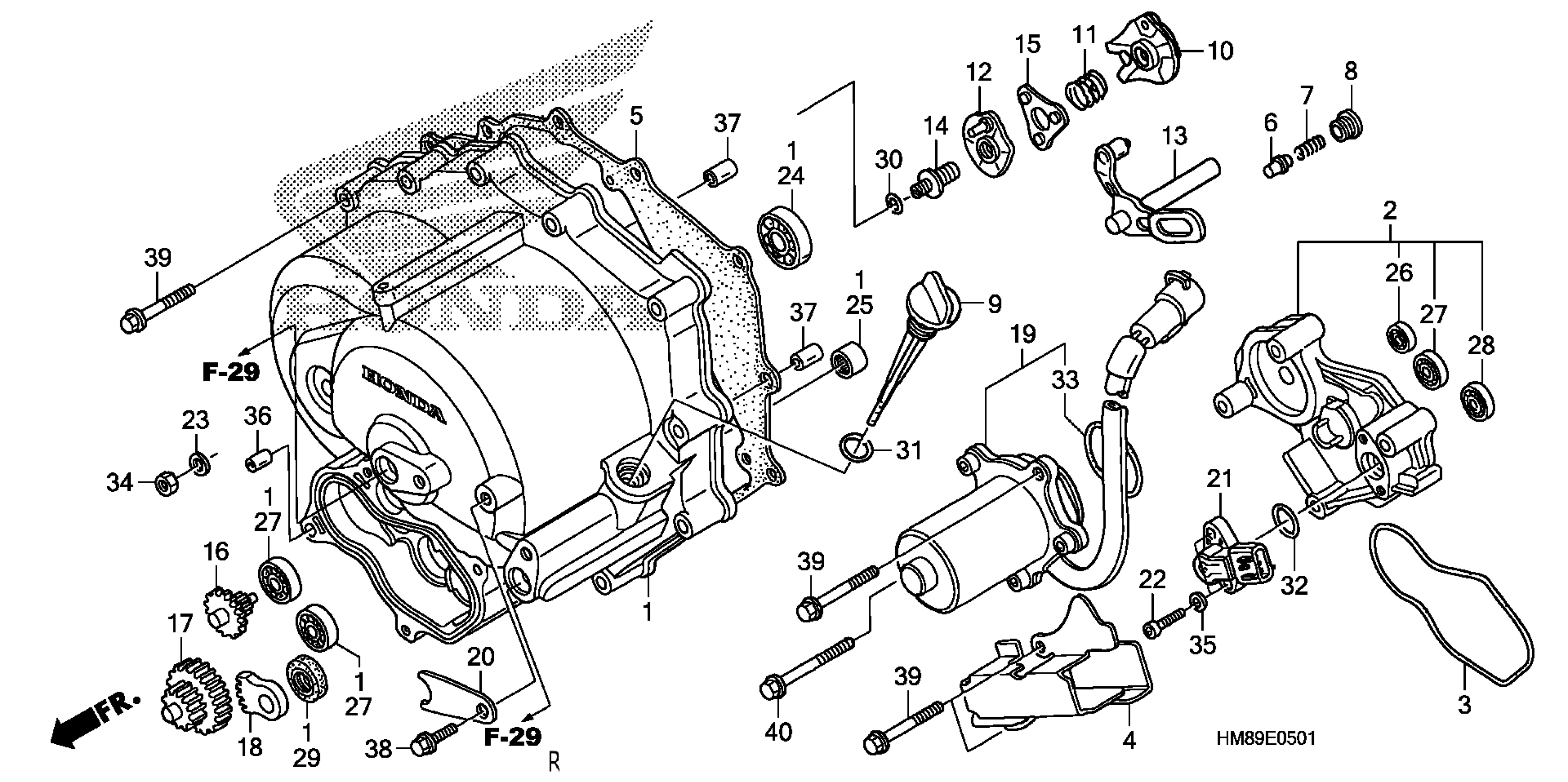

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 FRONT CRANKCASE COVER (TRX250TE) Diagram

COVER, FR. CRANKCASE

11330-HM8-A50

$206.44

COVER, REDUCTION GEAR

11335-HM8-A50

$51.34

O-RING, REDUCTION GEAR COVER

11337-HM8-A50

$5.25

PROTECTOR, ANGLE SENSOR

11339-HM8-A50

$28.54

GASKET, FR. CRANKCASE COVER

11394-HM8-000

$26.03

VALVE, RELIEF

15231-HM3-670

$12.43

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

CAP, RELIEF VALVE

15235-HM3-670

$21.69

DIPSTICK, OIL

15651-HM8-000

$10.74

PLATE, CLUTCH CAM

22820-HN6-000

$18.90

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

PLATE, CLUTCH LIFTER

22830-HB6-000

$21.17

SUB-LEVER, CLUTCH LIFTER

22840-HM8-000

$35.26

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$6.07

RETAINER, BALL

22860-HB3-000

$7.81

GEAR, REDUCTION (41T/10T)

24615-HN0-771

$16.62

GEAR, REDUCTION (40T/12T)

24616-HN0-771

$18.28

GEAR, REDUCTION (7/43T)

24617-HN0-771

$8.13

MOTOR ASSY., CONTROL

31300-HM8-A51

$229.27

PLATE, WIRE GUIDE

31305-HM8-A50

$2.11

SENSOR ASSY., ANGLE This part replaces 38800-HP0-A11.

38800-HR3-A21

$27.06

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

WASHER (8MM)

90485-040-000

$1.77

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

BEARING, NEEDLE (10X14X10) (TORRINGTON)

91021-HN0-671

$13.89

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

BEARING, RADIAL BALL (698ZZ)

91070-HN0-A11

$11.15

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (16.8X1.9)

91308-HM8-A51

$2.70

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (5MM)

94101-05800

$1.49

PIN, DOWEL (8X10)

94301-08100

$2.25

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X45)

95701-06045-08

$2.06
