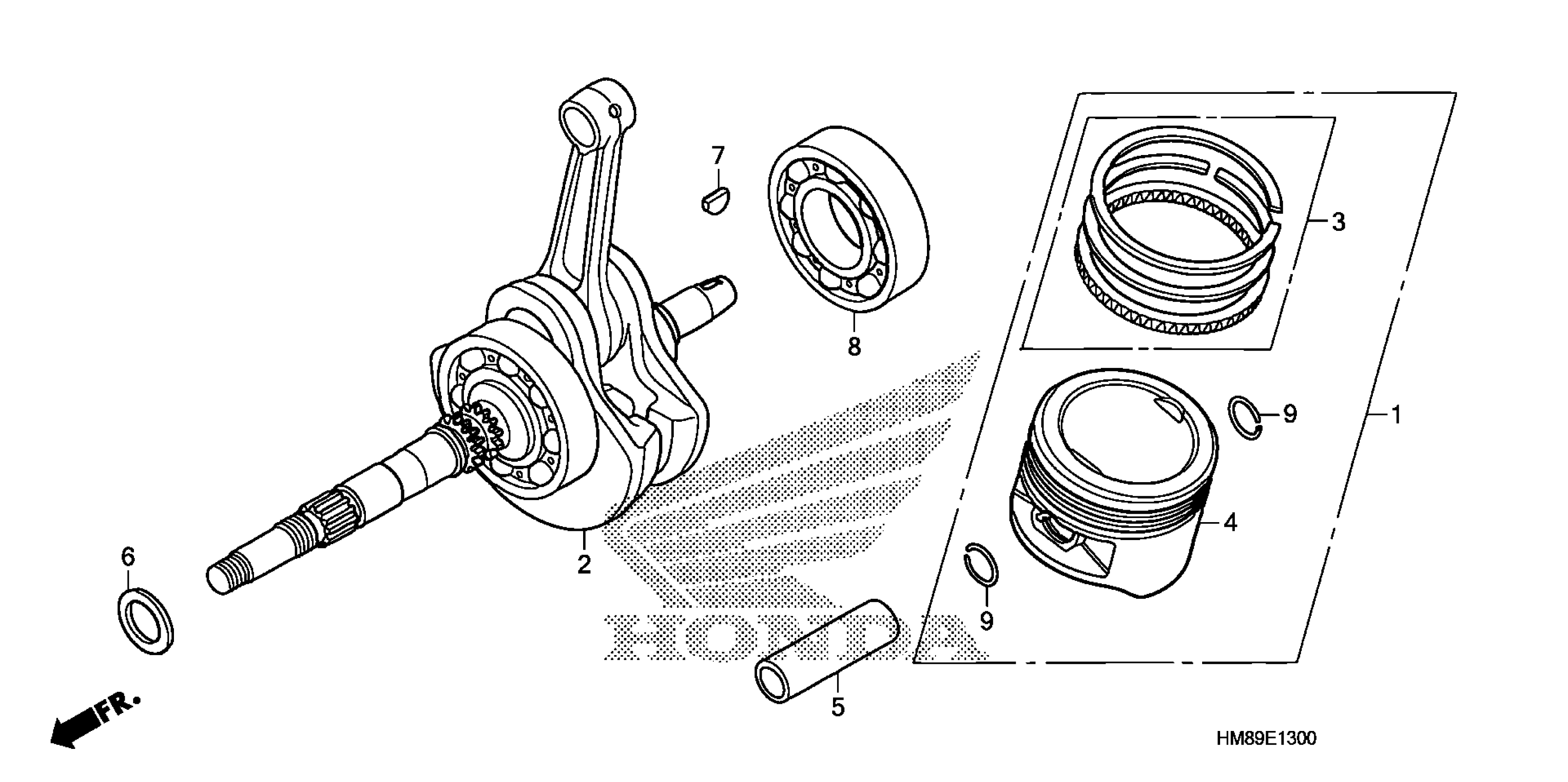

Honda TRX250TEAC (13) RECON ES, USA, VIN# 1HFTE214-D4400001 CRANKSHAFT + PISTON Diagram

PISTON KIT (STD) | (Optional).

06131-HM8-A40

$104.47

PISTON KIT (O.S. 0.25) | (Optional).

06132-HM8-A40

$94.84

PISTON KIT (O.S. 0.50) | (Optional).

06133-HM8-A40

$100.33

PISTON KIT (O.S. 0.75) | (Optional).

06134-HM8-A40

$100.33

PISTON KIT (O.S. 1.00) | (Optional).

06135-HM8-A40

$89.93

CRANKSHAFT This part replaces 13000-HM8-A40.

13000-HM8-A41

$610.98

RING SET, PISTON (STD)

13011-HM8-003

$47.31

RING SET, PISTON (O.S. 0.25) | (Optional).

13021-HM8-003

$47.31

RING SET, PISTON (O.S. 0.50) | (Optional).

13031-HM8-003

$47.31

RING SET, PISTON (O.S. 0.75) | (Optional).

13041-HM8-003

$50.18

RING SET, PISTON (O.S. 1.00) | (Optional).

13051-HM8-003

$47.31

PISTON (STD)

13101-HM8-A40

$83.83

PISTON (O.S. 0.25) | (Optional).

13102-HM8-306

$88.34

PISTON (O.S. 0.50) | (Optional).

13103-HM8-306

$88.34

PISTON (O.S. 0.75) | (Optional).

13104-HM8-306

$88.34

PISTON (O.S. 1.00) | (Optional).

13105-HM8-306

$84.52

PIN, PISTON This part replaces 13111-422-000.

13111-425-000

$21.65

PIN, PISTON

13111-425-000

$21.65

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

KEY, WOODRUFF (4MM)

90741-KFB-000

$2.92

BEARING, BALL (6207C3)

91001-HM8-003

$27.85

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
