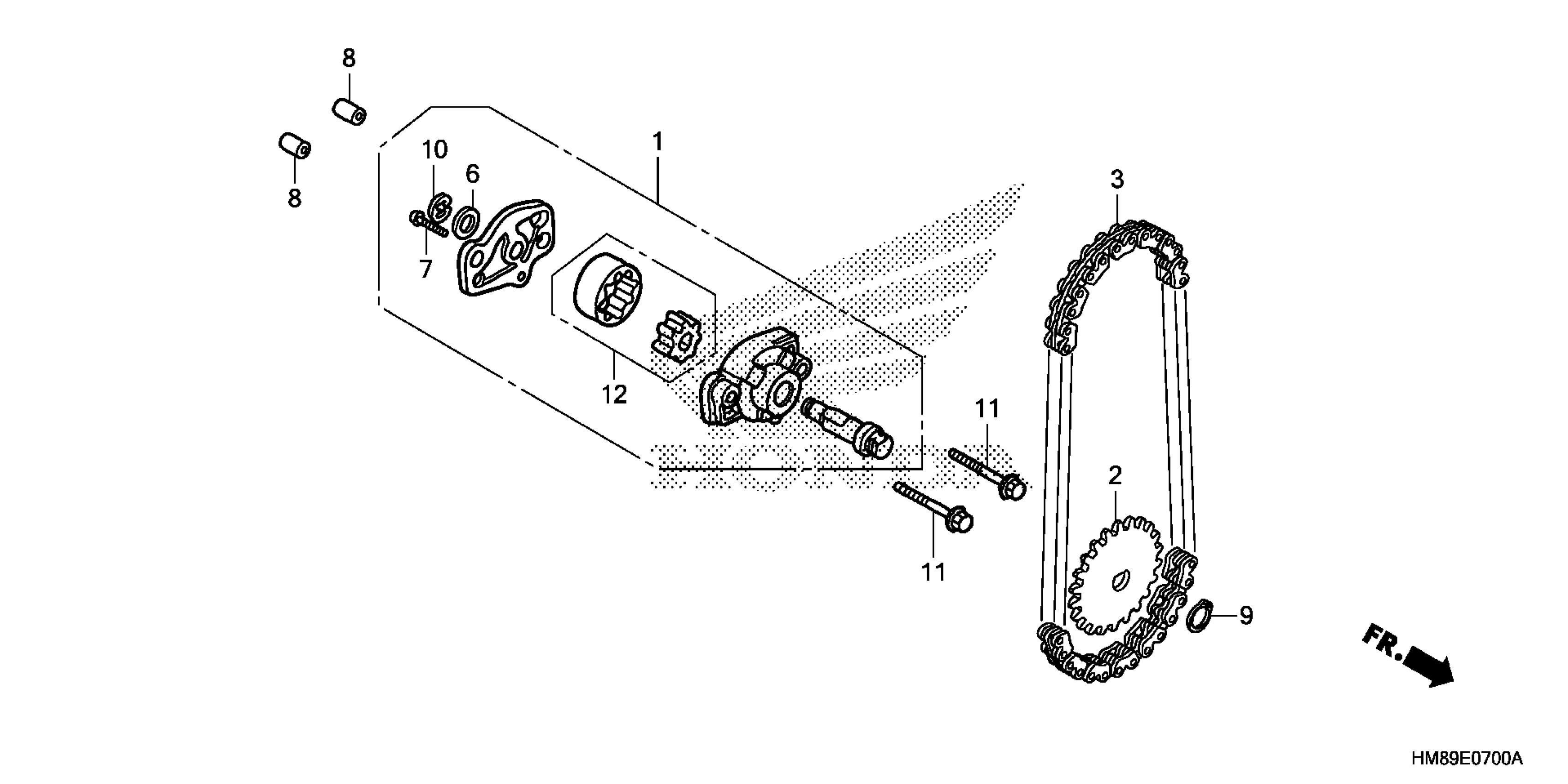

Honda TRX250TEA (12) RECON ES, USA, VIN# 1HFTE214-C4300001 TO 1HFTE214-C4399999 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-HM8-000

$63.89

2

SPROCKET, OIL PUMP DRIVEN (22T)

15133-HM8-000

$17.79

3

CHAIN, OIL PUMP (46L)

15141-HM8-003

$16.81

4

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

5

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

6

WASHER (6.1MM)

90435-HB3-000

$2.92

7

SCREW, PAN (3X12)

93500-03012-0A

$1.49

7

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

8

PIN, DOWEL (8X14)

94301-08140

$2.25

9

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

10

E-RING (5MM)

94540-05018

$2.67

11

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

12

ROTOR SET, OIL PUMP

15021-958-000

$35.25
