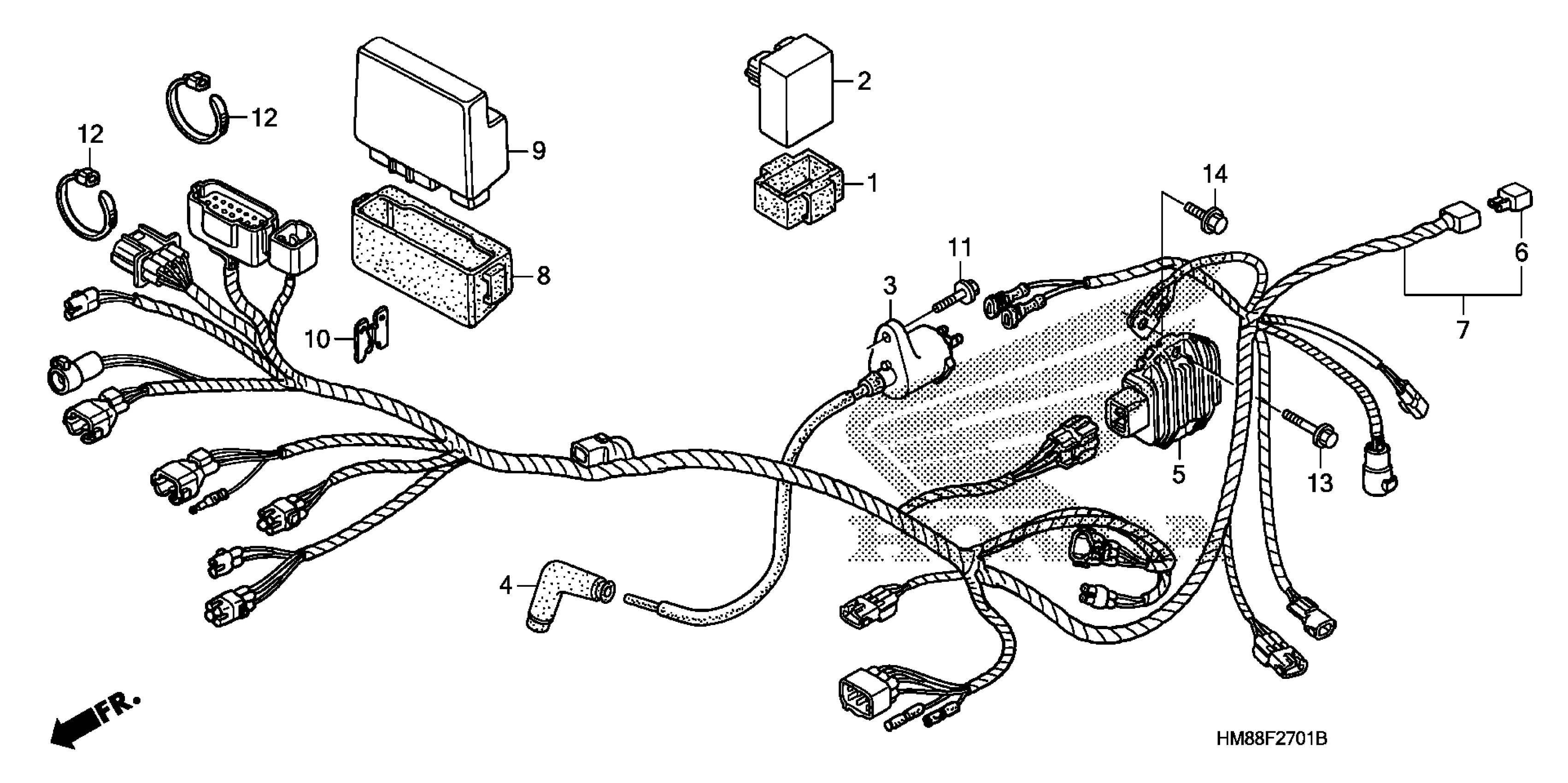

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 WIRE HARNESS (TRX250TE) Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HB6-000.

30401-HB6-010

$3.51

2

MODULE, IGNITION CONTROL (CDI)

30410-HN6-000

$117.72

3

COIL, IGNITION

30510-HN6-000

$24.57

4

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

5

RECTIFIER ASSY., REGULATOR

31600-HM8-B00

$51.70

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

7

WIRE HARNESS

32100-HM8-B50

$994.38

8

SUSPENSION, CONTROL UNIT

38901-HN5-A10

$19.02

9

CONTROL UNIT, CHANGE This part replaces 38910-HM8-A51.

38910-HM8-A52

$227.12

10

STAY, FUSE CONNECTOR

50328-HN2-000

$1.57

11

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

12

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

13

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

14

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
