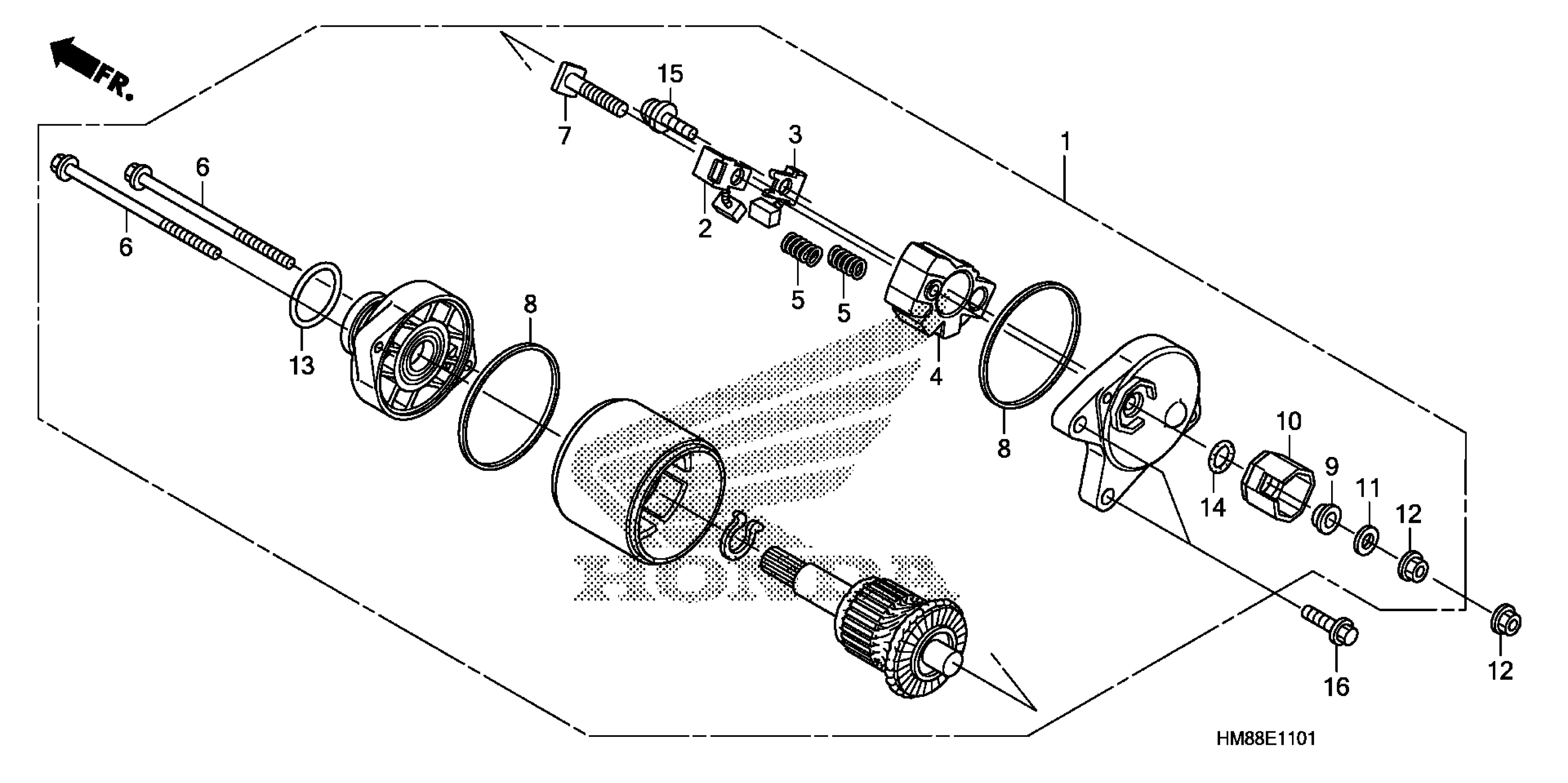

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 STARTER MOTOR ('08-'09) Diagram

Description

Price

STARTER MOTOR ASSY.

31200-HM8-B61

$476.33

BRUSH SET A, CARBON

31201-KPC-D51

$8.00

BRUSH SET B, CARBON

31202-KPC-D51

$9.65

HOLDER, BRUSH

31203-KPC-D51

$8.39

SPRING, CARBON BRUSH

31204-MEW-921

$13.00

BOLT SET

31205-HM8-B61

$4.18

BOLT, TERMINAL

31206-MEW-921

$2.92

RING

31207-HP5-601

$2.15

INSULATOR

31208-MEW-921

$7.66

STOPPER, TERMINAL

31209-MEW-921

$11.36

WASHER

31210-MEW-921

$1.82

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING (4X2)

91320-MB0-000

$2.43

SCREW-WASHER (5X12)

93892-05012-08

$1.49

BOLT, FLANGE (6X25)

95801-06025-00

$1.49
