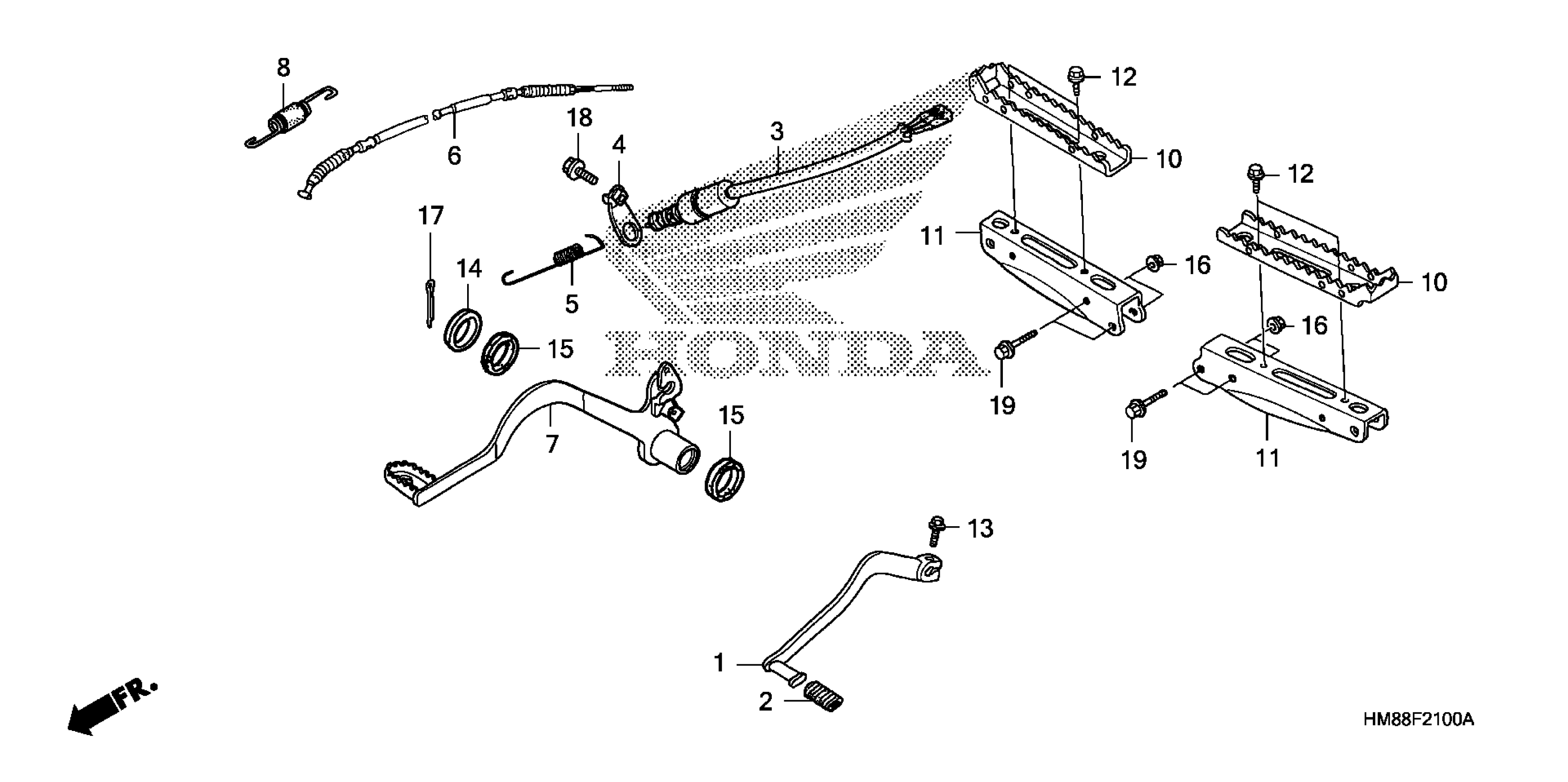

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 PEDAL + STEP Diagram

SWITCH ASSY., RR. STOP

35350-HM8-B00

$51.25

STAY, STOP SWITCH

35351-HM8-B00

$1.54

SPRING, STOP SWITCH

35357-HM8-B00

$2.48

CABLE, FOOT BRAKE

43470-HM8-000

$7.64

PEDAL, BRAKE

46500-HM8-B00

$35.63

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$13.76

STEP

50610-HN5-M40

$18.00

BRACKET, STEP

50611-HN8-000

$26.02

BOLT, FLANGE (6MM)

90111-197-890

$3.32

WASHER (17.5MM)

90512-303-000

$1.61

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.44

NUT, FLANGE (8MM)

94050-08000

$0.86

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
