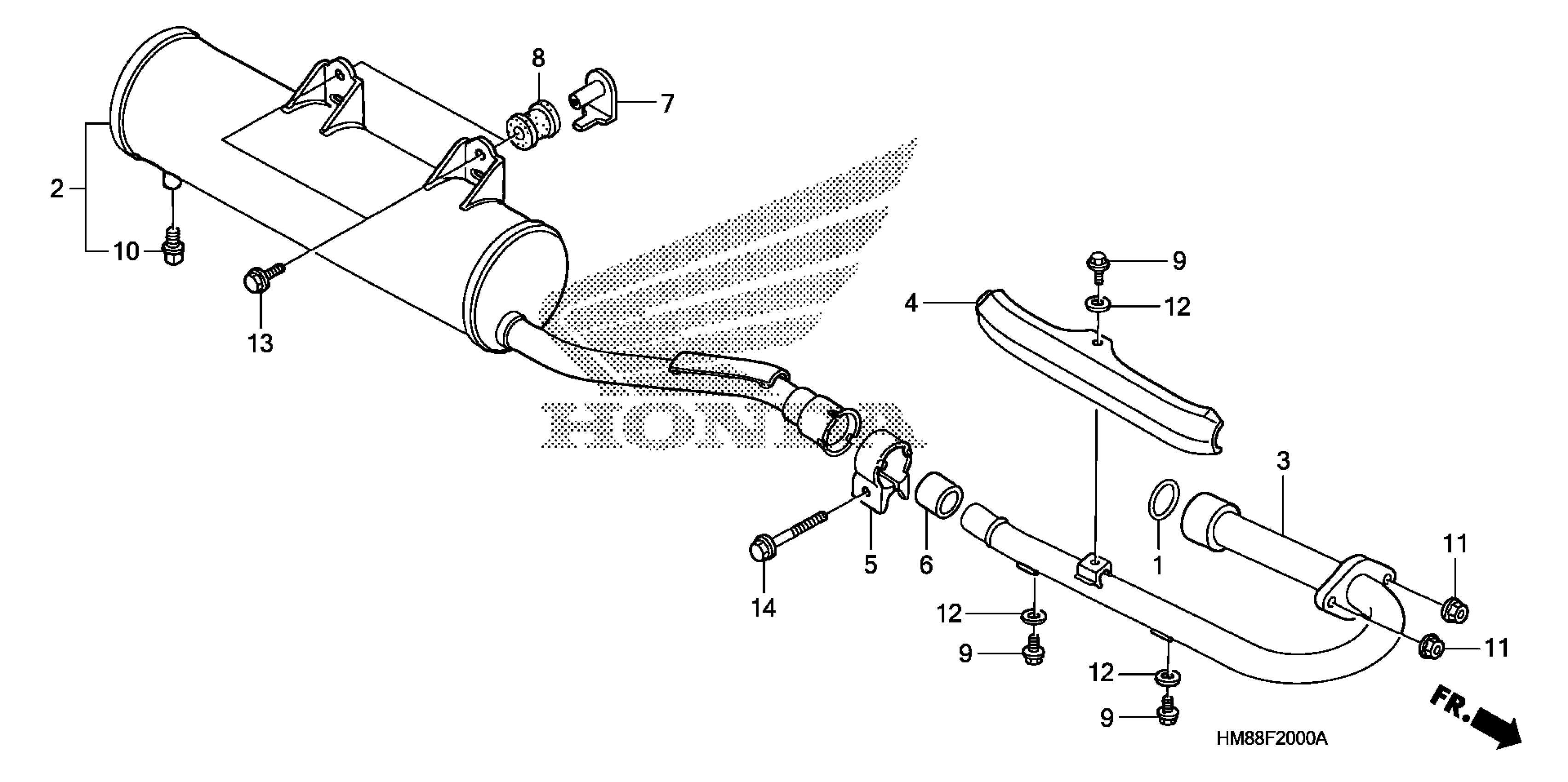

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN5-650

$3.77

MUFFLER

18310-HM8-B40

$360.68

PIPE, EX.

18320-HM8-B40

$138.92

COVER, EX. PIPE

18321-HM8-000

$148.25

BAND, L. EX. PIPE

18374-MN1-670

$14.42

GASKET, MUFFLER

18391-HM8-000

$7.93

NUT, MOUNTING RUBBER This part replaces 50607-HM8-000.

50607-HN1-A70

$24.63

NUT, MOUNTING RUBBER

50607-HN1-A70

$24.63

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.96

BOLT, FLANGE (6X12)

90011-750-801

$1.49

BOLT, ARRESTER

90183-HM5-850

$2.57

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X35)

95701-08035-08

$1.49
