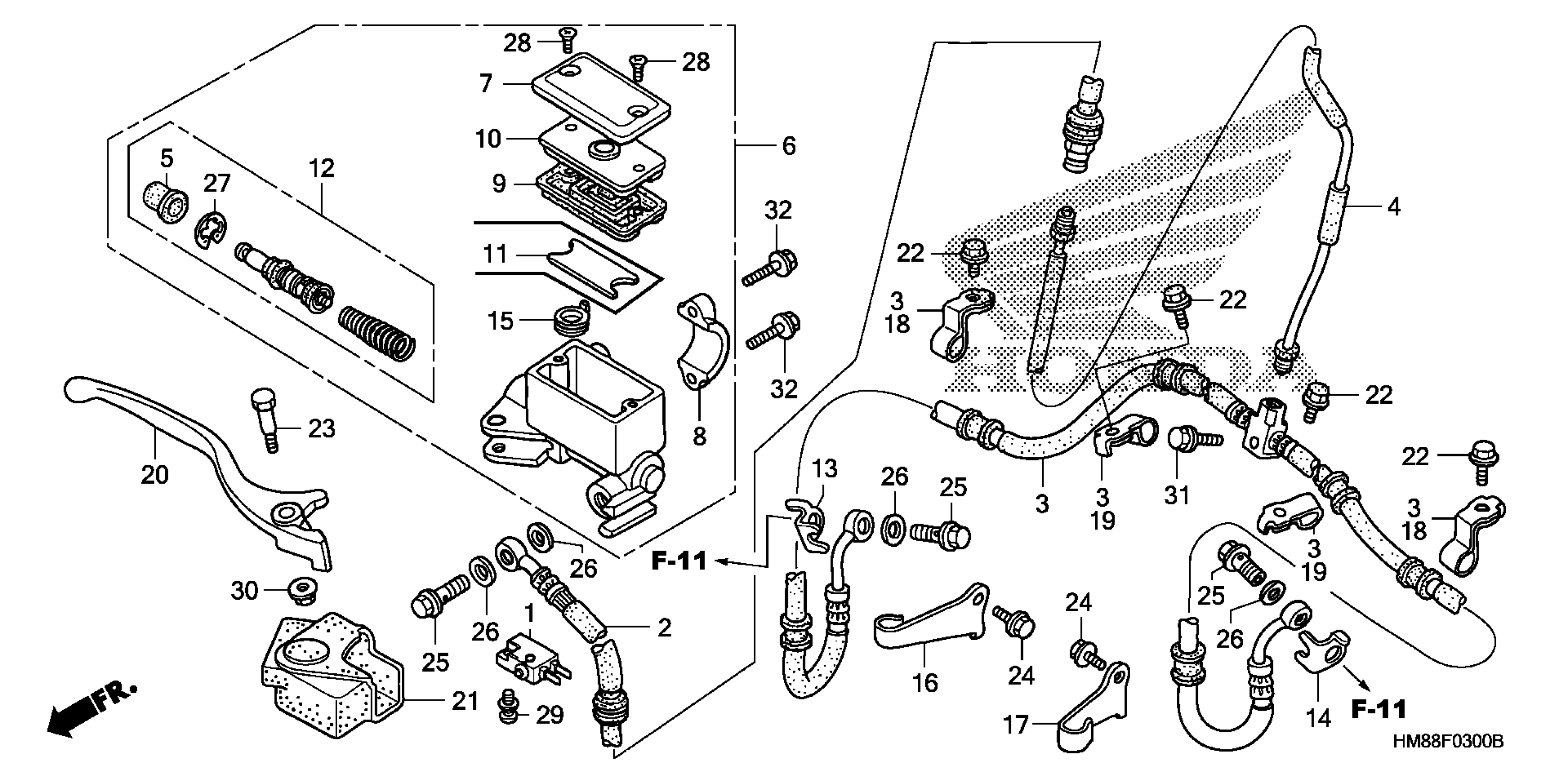

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

2

HOSE A, FR. BRAKE

45126-HM8-B21

$27.36

3

HOSE B, FR. BRAKE

45127-HM8-B21

$62.18

4

PIPE, FR. BRAKE

45128-HM8-B20

$16.38

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR.

45510-HM8-B41

$59.31

7

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

8

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

9

DIAPHRAGM

45520-MG7-006

$10.61

10

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

12

MASTER CYLINDER SET

45530-471-831

$40.86

13

WASHER, R. OIL BOLT

45535-HC4-840

$9.36

14

WASHER, L. OIL BOLT

45545-HC4-840

$9.36

15

SEPARATOR

46666-HB9-006

$9.38

16

CLAMP, R. BRAKE HOSE

51201-HM8-000

$2.43

17

CLAMP, L. BRAKE HOSE

51202-HM8-000

$2.43

18

CLAMP A, FR. BRAKE HOSE

51207-HM8-000

$9.82

19

CLAMP B, FR. BRAKE HOSE

51208-HM8-000

$2.30

20

LEVER, R. HANDLEBAR

53175-HC4-010

$22.79

21

COVER, R. HANDLE

53176-HM8-B00

$3.25

22

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

23

BOLT, HANDLE LEVER

90114-HM8-B41

$4.46

24

BOLT, FLANGE (8X12)

90115-HM4-930

$4.11

25

BOLT, OIL (10X22)

90145-MS9-612

$7.54

26

WASHER, OIL BOLT

90545-300-000

$3.99

27

CIRCLIP

90651-MA5-671

$2.66

28

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

28

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

29

SCREW-WASHER (4X14)

93893-04014-07

$1.49

29

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

32

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
