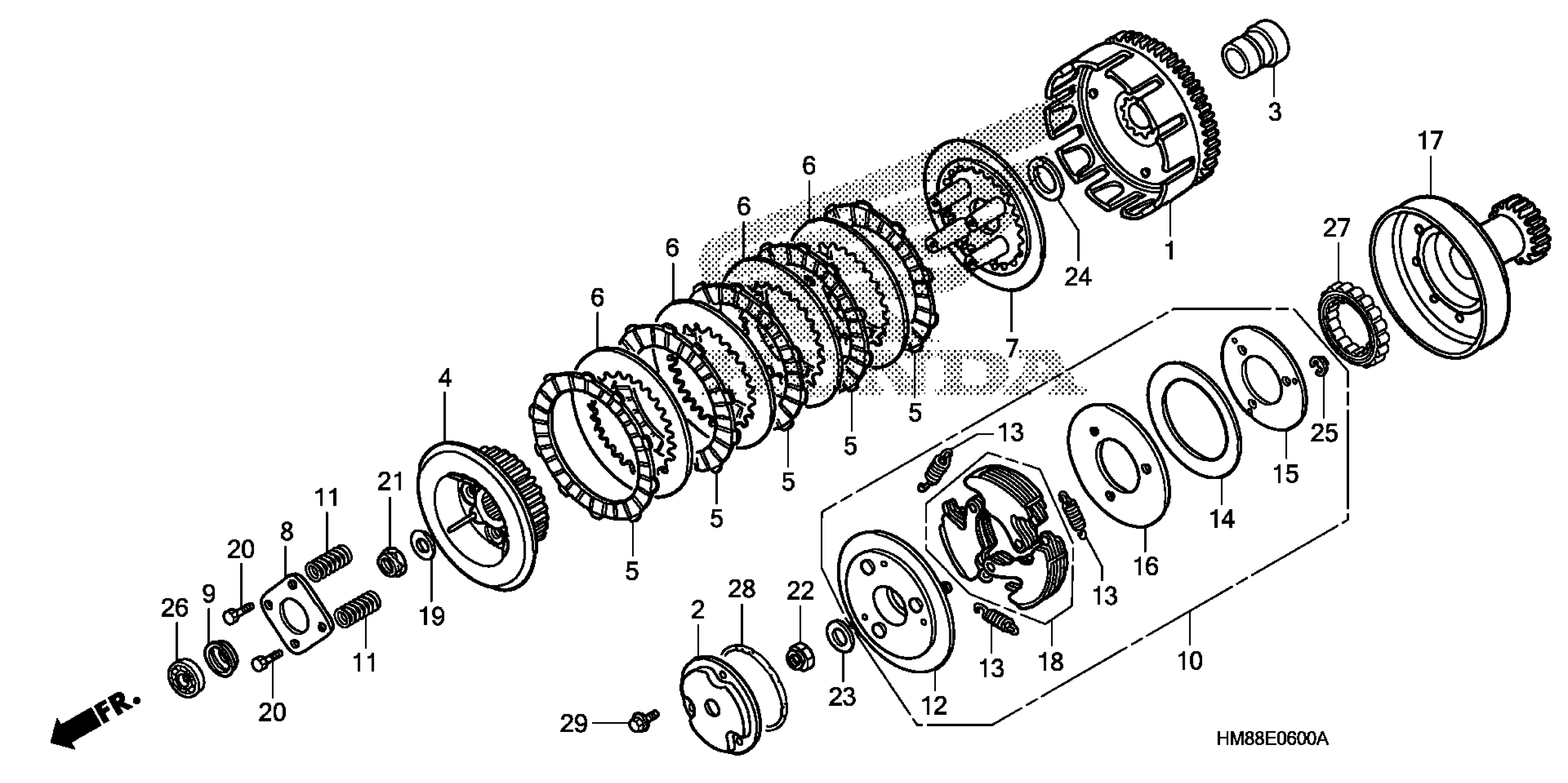

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-HM8-A40

$203.57

2

COVER, OIL FILTER

22111-HB3-771

$22.04

3

GUIDE, CLUTCH (OUTER)

22116-HB3-000

$21.88

4

CENTER, CLUTCH

22121-HM8-000

$59.04

5

DISK, CLUTCH FRICTION

22201-166-000

$15.68

6

PLATE, CLUTCH

22321-HM8-A40

$12.46

7

PLATE, CLUTCH PRESSURE

22350-HB3-000

$37.15

8

PLATE, CLUTCH LIFTER

22361-HM8-A40

$11.77

9

COLLAR, CLUTCH LIFTER

22367-HN6-000

$9.30

10

PLATE ASSY., DRIVE

22400-HM8-A41

$150.47

11

SPRING, CLUTCH

22401-HM8-A50

$5.20

12

PLATE, DRIVE

22451-HM8-A41

$70.74

13

SPRING, CLUTCH

22463-HB3-770

Unavailable

14

SPRING, CONE DISK

22470-HB3-770

$12.68

15

WASHER (48X92X1.6)

22480-HM8-A40

$8.62

16

WASHER (48X100X1.2)

22481-HM8-A40

$8.91

17

DRUM, CLUTCH (23T) This part replaces 22500-HM8-A40.

22500-HS0-A00

$110.10

18

WEIGHT SET, CLUTCH

22535-HM8-306

$74.01

19

WASHER, STEERING PIVOT

53044-HA7-670

$6.83

20

BOLT, HEX. (6X28)

90001-HM8-A40

$2.67

21

NUT, SPECIAL (16MM)

90201-HB3-000

$6.96

22

NUT, SPECIAL (18MM)

90235-HB3-000

$9.38

23

WASHER (18MM)

90432-KE5-000

$4.53

24

WASHER, THRUST (20MM)

90452-413-000

$2.42

25

CIRCLIP (7MM)

90605-HM8-000

$1.78

26

BEARING, BALL (6903) (KOYO)

91008-HC4-004

$20.71

27

CLUTCH, ONE-WAY

91101-958-003

$136.46

28

O-RING (83.5X1.5)

91301-HM8-A40

$4.78

29

BOLT, FLANGE (6X8)

95701-06008-00

$3.06
