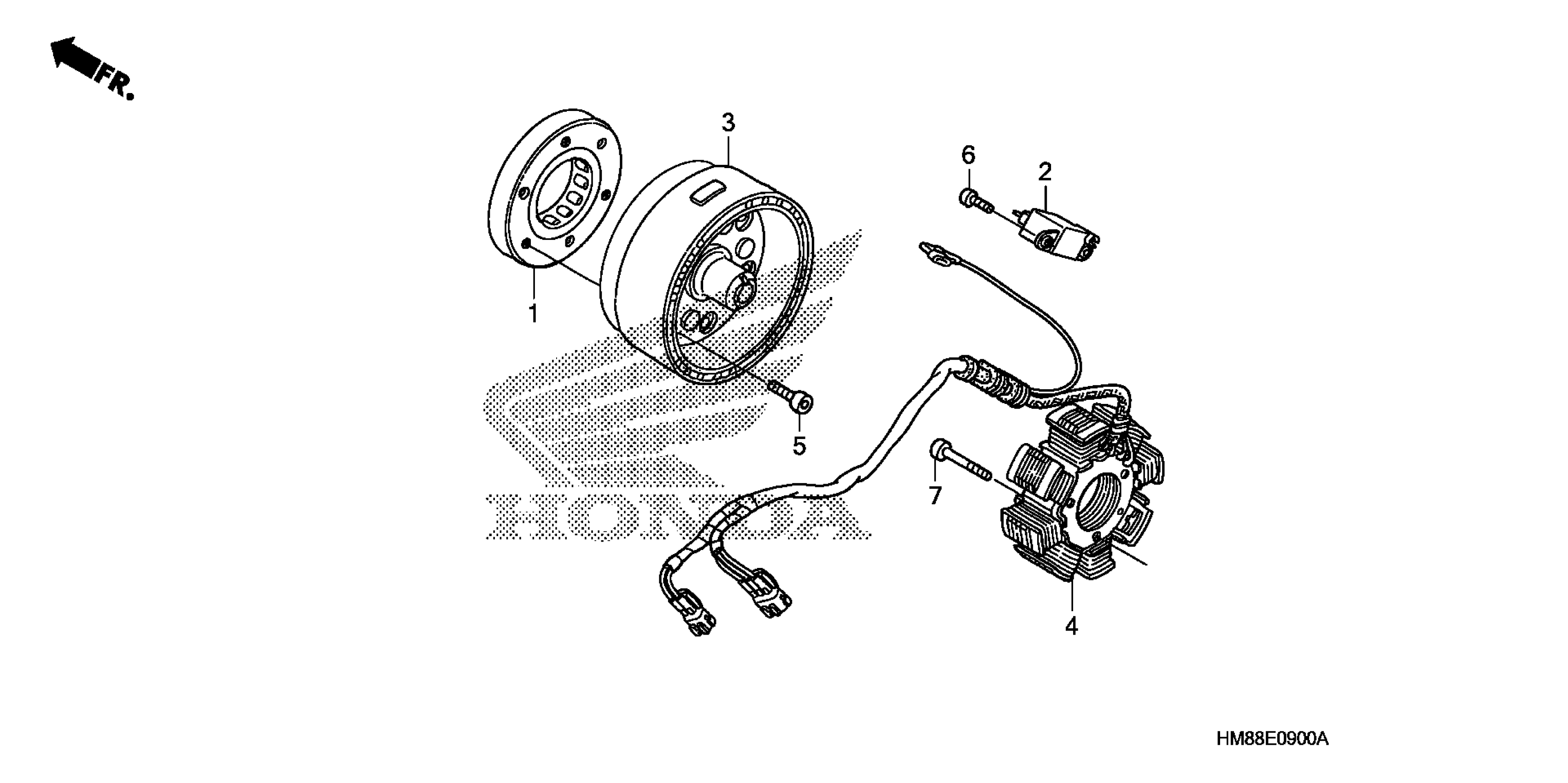

Honda TRX250TEA (09) FOURTRAX RECON ES, USA, VIN# 1HFTE214-94900001 ALTERNATOR Diagram

#

Description

Price

1

CLUTCH OUTER, STARTING

28125-HM8-A61

$81.32

2

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$37.40

3

FLYWHEEL

31110-HM8-A41

$347.59

4

STATOR This part replaces 31120-HM8-B00.

31120-HM8-B01

$280.21

5

BOLT, SOCKET (6MM)

90085-413-781

$3.87

6

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80

7

BOLT, SOCKET (6X30)

90117-GB2-000

$4.31
