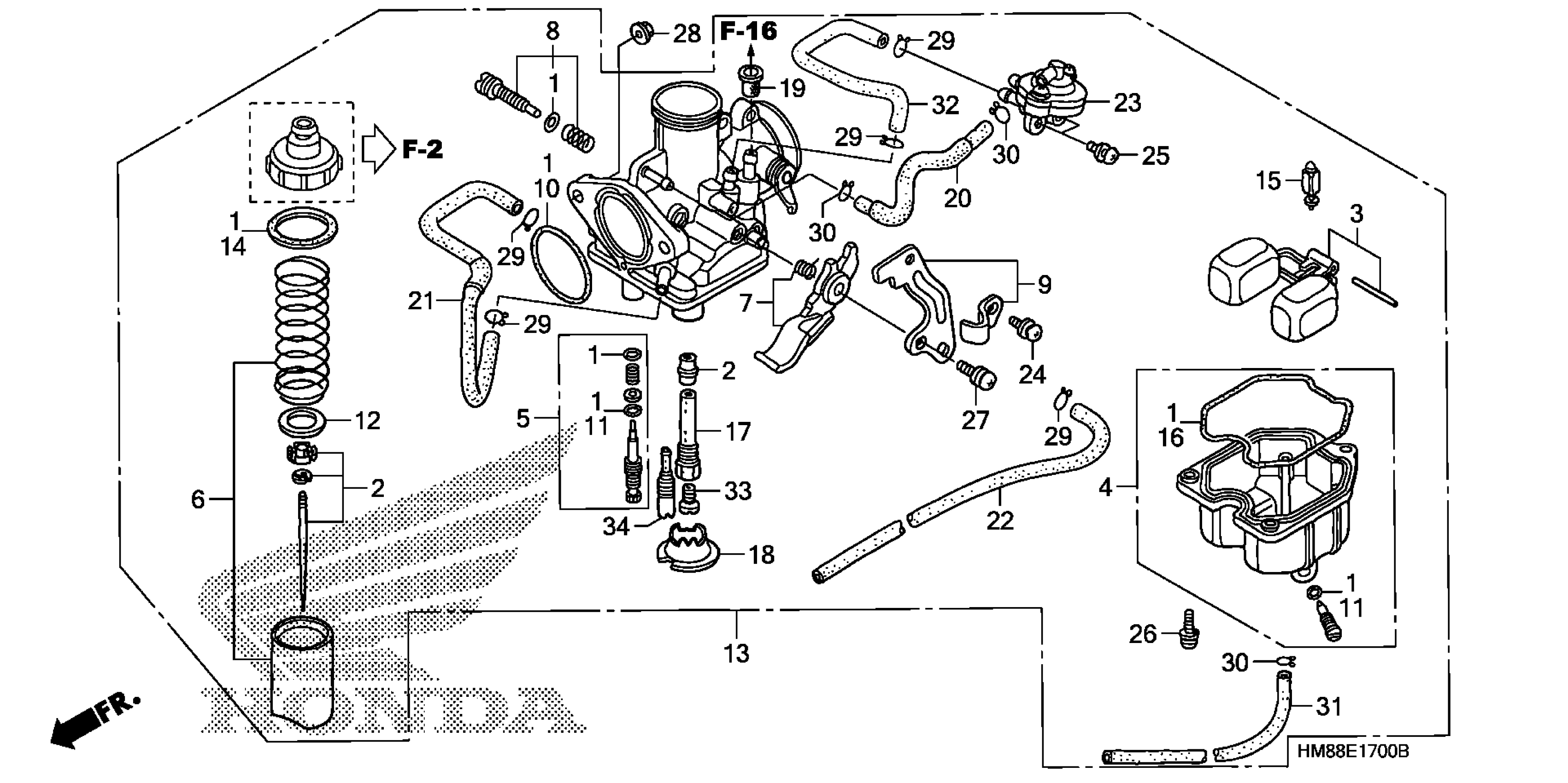

Honda TRX250TEA (07) FOURTRAX RECON ES, USA, VIN# 1HFTE214-74700001 TO 1HFTE214-74799999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HM8-000

$20.58

2

NEEDLE SET, JET

16012-HM8-B01

$23.34

3

FLOAT SET

16013-KRP-981

$7.70

4

CHAMBER SET, FLOAT

16015-HN6-003

$113.91

5

SCREW SET A

16016-HM8-B01

$19.81

6

VALVE SET, THROTTLE

16022-HM8-B01

$34.71

7

LEVER SET, CHOKE

16025-HM8-B01

$18.71

8

SCREW SET B

16028-KEB-G01

$10.71

8

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$10.71

9

PLATE SET, STAY

16035-HM8-000

$38.24

10

O-RING (2.4X29)

16075-GHB-B70

$7.47

11

O-RING (1.3X4.3)

16075-GHB-640

$2.69

12

PLATE B, VALVE

16092-HM8-A01

$5.19

13

CARBURETOR ASSY. (PDC1L A) This part replaces 16100-HM8-B41.

16100-HM8-B61

Unavailable

13

CARBURETOR ASSY. (PDC1L A) This part replaces 16100-HM8-B42.

16100-HM8-B61

Unavailable

13

CARBURETOR ASSY. (PDC1L A) This part replaces 16100-HM8-B60.

16100-HM8-B61

Unavailable

13

CARBURETOR ASSY. (PDC1L A)

16100-HM8-B61

Unavailable

14

GASKET, TOP

16110-KN4-651

$7.10

15

VALVE, FLOAT

16155-KFR-701

$25.01

16

GASKET, FLOAT CHAMBER

16163-KCS-920

$10.93

17

HOLDER, NEEDLE JET

16165-HM8-000

$29.75

18

HOLDER, JET

16168-382-014

$8.03

19

SCREEN, FUEL STRAINER

16176-HM8-B01

$27.75

20

TUBE

16197-HM8-000

$2.47

21

TUBE

16198-HM8-000

$2.80

22

TUBE

16199-HM8-B41

$8.46

23

VALVE ASSY., AIR CUT

16510-HM8-B01

$75.06

24

SCREW-WASHER (4X8)

93892-04008-08

$1.06

24

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.06

25

SCREW-WASHER (4X14)

93892-04014-08

$1.01

25

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.01

26

SCREW-WASHER (4X16)

93892-04016-08

$0.85

26

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.85

27

SCREW-WASHER (5X12)

93892-05012-08

$1.06

27

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.06

28

NUT, FLANGE (6MM)

94050-06000

$0.60

29

CLIP, TUBE (B8)

95002-02089

$0.96

30

CLIP, TUBE (B6.5)

95002-02659

$1.01

31

BULK HOSE, VACUUM (3.5X1000) (3.5X290)

95005-35001-50M

$12.64

32

BULK HOSE, VACUUM (4.5X1000) (4.5X140)

95005-45001-20M

$30.52

33

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.62

33

JET, MAIN (#98)

99101-GHB-0980

$6.11

34

JET, SLOW (#38)

99103-MT2-0380

$20.37
