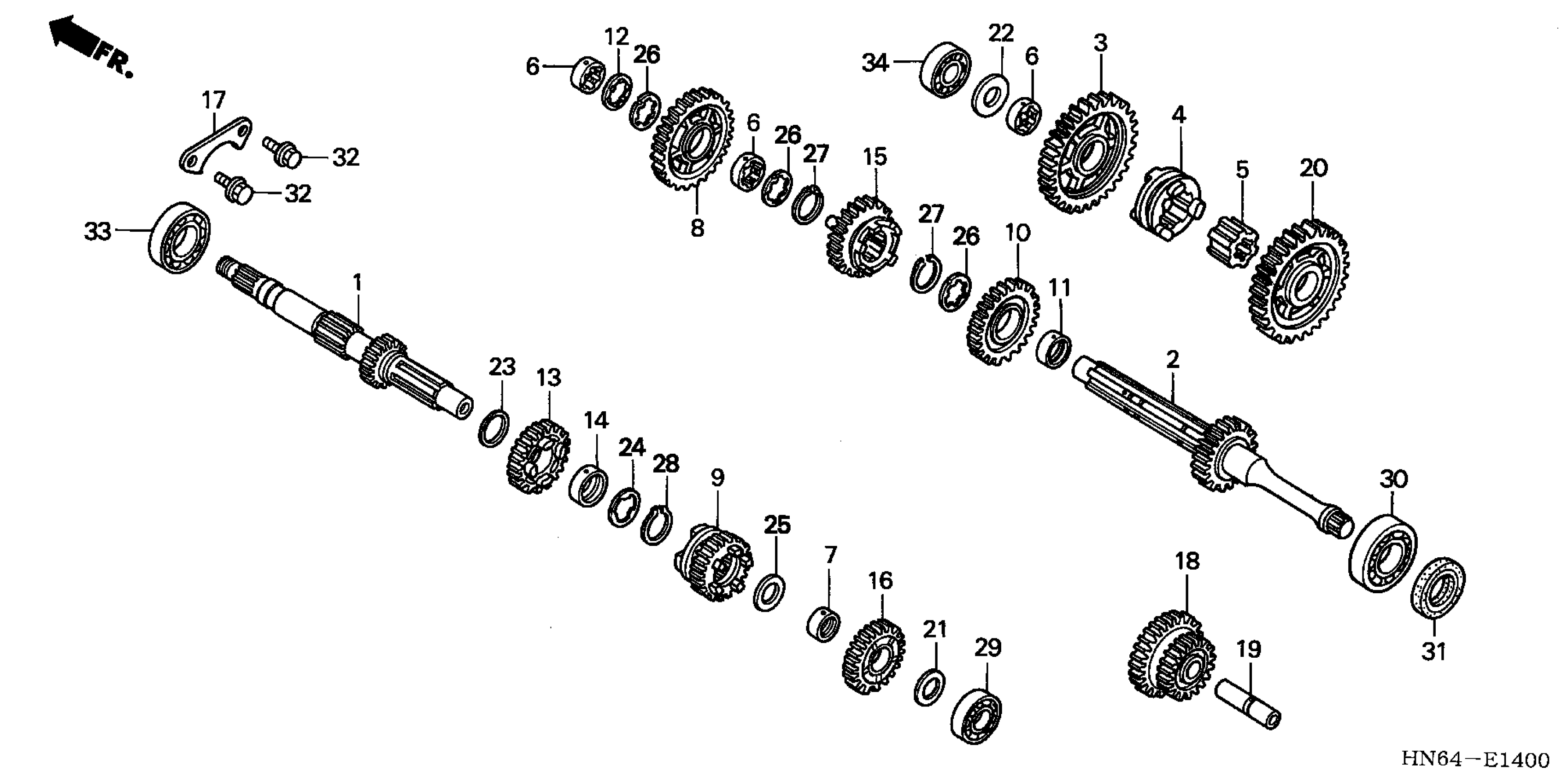

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (13T/18T)

23211-HM8-A40

$163.08

COUNTERSHAFT (25T)

23221-HM8-A40

$163.05

GEAR, COUNTERSHAFT FIRST (42T)

23411-HM8-A40

$89.70

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HM8-A40

$41.07

COLLAR, SPLINE

23413-HM8-A40

$66.30

BUSH, SPLINE (25X8.6)

23414-HN5-670

$9.21

BUSH (15MM)

23415-HB3-000

$16.80

GEAR, COUNTERSHAFT SECOND (39T)

23431-HM8-A40

$84.97

GEAR, MAINSHAFT THIRD (21T)

04101-HM8-505

Unavailable

GEAR, MAINSHAFT THIRD (21T) This part replaces 23441-HM8-A40.

04101-HM8-505

Unavailable

GEAR, COUNTERSHAFT THIRD (35T)

23451-HM8-A40

$79.75

BUSH (22MM)

23452-HB3-000

$19.64

WASHER, LOCK

23456-HN5-670

$3.70

GEAR, MAINSHAFT FOURTH (25T) This part replaces 23461-HM8-A40.

23461-HM8-B60

$74.72

GEAR, MAINSHAFT FOURTH (25T)

23461-HM8-B60

$74.72

BUSH (20MM)

23462-HB3-000

$19.64

GEAR, COUNTERSHAFT FOURTH (32T)

23471-HM8-A40

$58.02

GEAR, MAINSHAFT THIRD (21T) This part replaces 23481-HM8-A40.

04101-HM8-505

Unavailable

PLATE, BEARING SETTING

23521-HM8-000

$5.72

GEAR, REVERSE IDLE (20T/37T)

23721-HM8-A40

$72.15

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

GEAR, COUNTERSHAFT REVERSE (39T)

23751-HM8-A40

$84.97

WASHER, THRUST (15MM)

90451-107-000

$1.49

WASHER, THRUST (15MM)

90452-HB3-000

$8.07

WASHER, THRUST (20MM)

90454-107-000

$1.80

WASHER, SPLINE (20MM)

90455-HM8-A40

$2.44

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

WASHER, SPLINE (22MM)

90464-HN5-670

$2.33

CIRCLIP (22MM)

90601-329-000

$2.67

SET-RING (20MM)

90605-200-000

$2.92

BEARING, RADIAL BALL SPECIAL (6202U)

91001-HN6-003

$12.86

BEARING, RADIAL BALL (S6205) (KOYO)

91002-HE0-003

$16.79

OIL SEAL (25X41.25X6)

91202-898-003

$8.71

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

BEARING, RADIAL BALL (6202U) This part replaces 96140-62020-00.

96140-62020

$13.60
