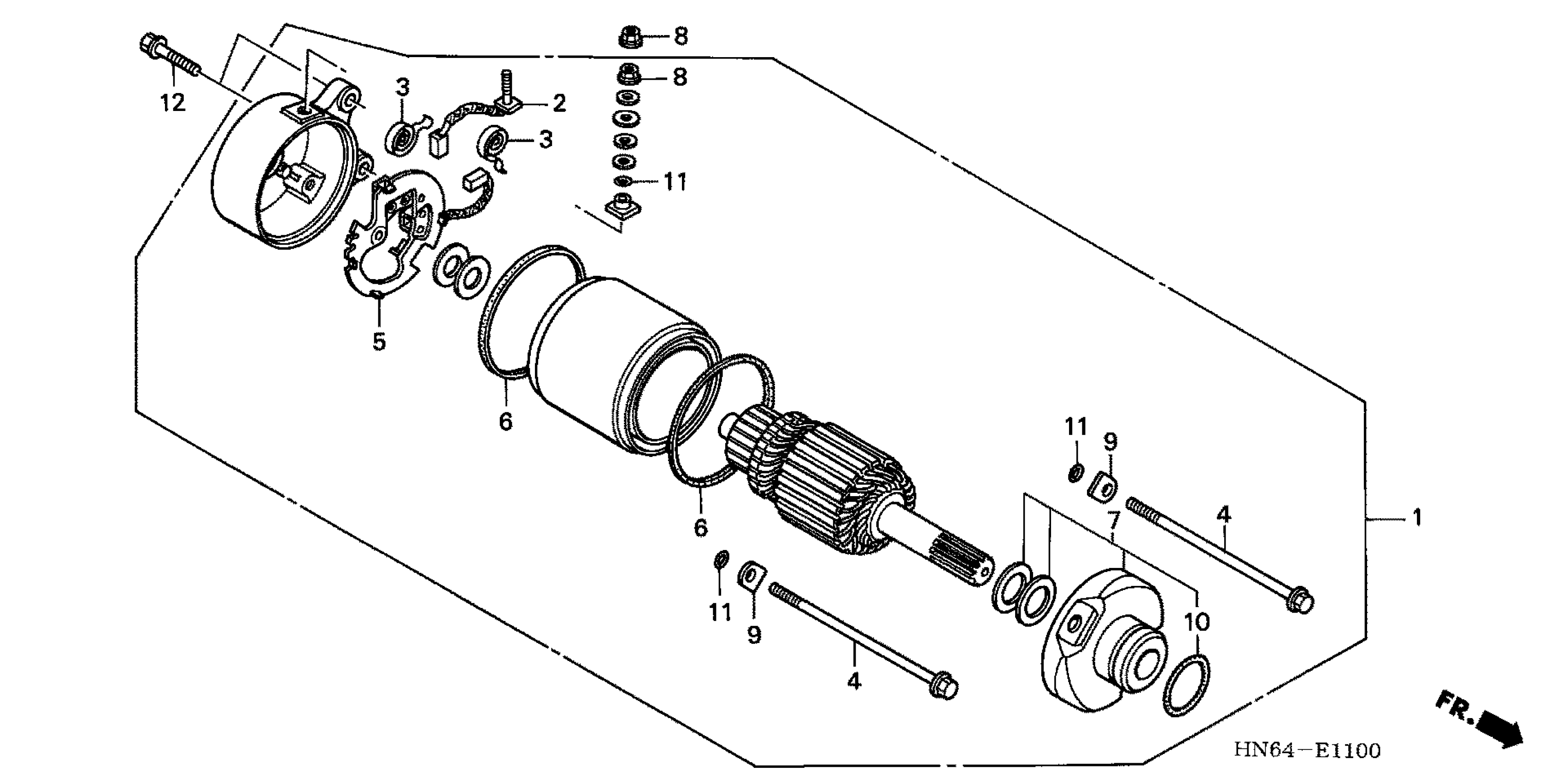

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-HM8-A41.

31200-HM8-003

$501.51

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

3

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

4

BOLT, SETTING

31205-KL8-711

$4.51

5

HOLDER SET, BRUSH

31206-MN4-008

$23.32

6

RING

31207-KS5-901

$3.12

7

BRACKET, FR.

31210-HC4-003

$67.21

8

NUT-WASHER (6MM)

90071-MB0-000

$1.97

9

WASHER, STEEL PLATE

90122-MN4-008

$2.97

10

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

10

O-RING (24.4X3.1)

91312-MG7-003

$6.34

11

O-RING (4X2)

91320-MB0-000

$2.43

12

BOLT, FLANGE (6X25)

95801-06025-00

$1.49
