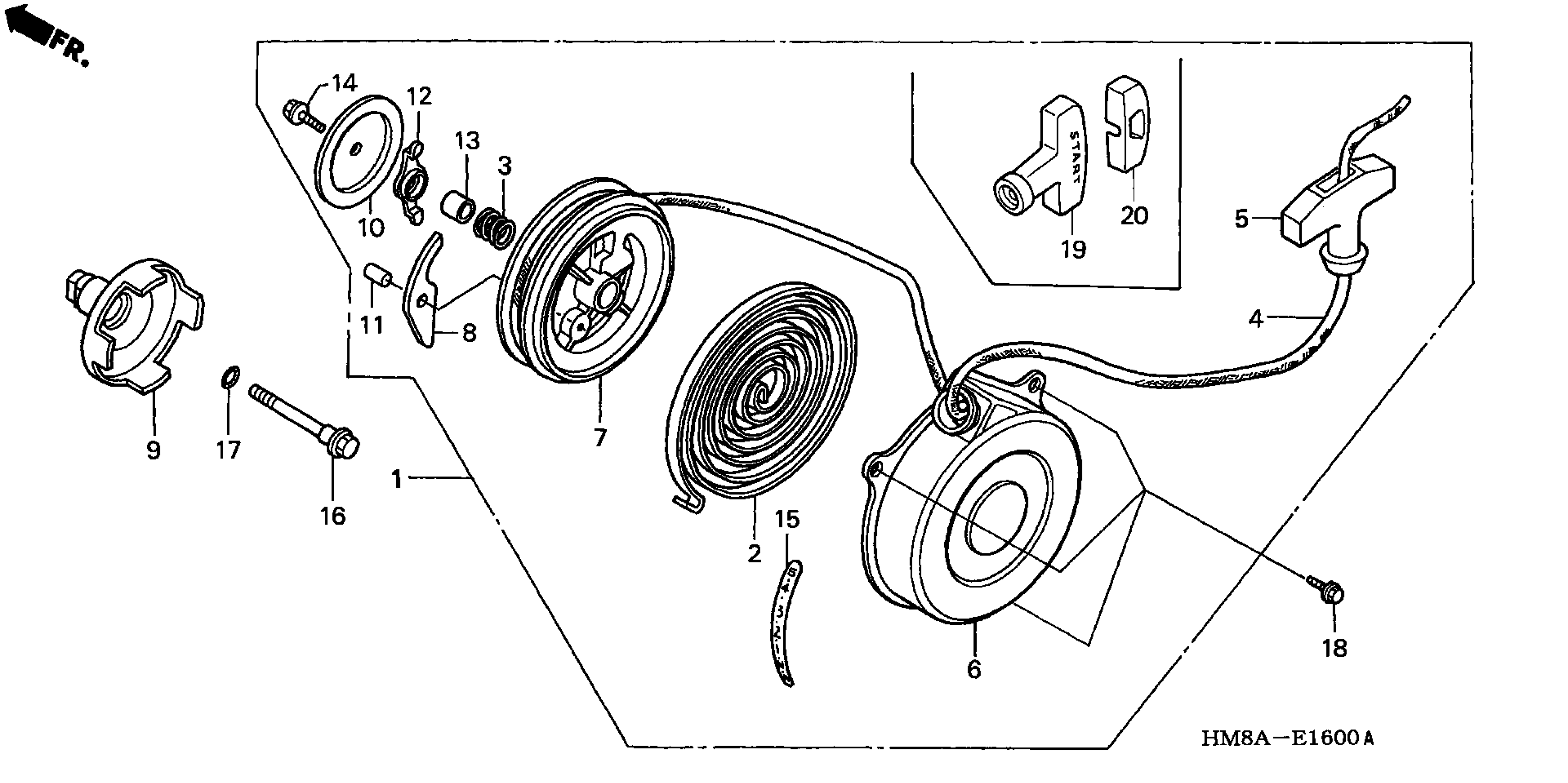

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 RECOIL STARTER Diagram

Description

Price

STARTER ASSY., RECOIL

28400-HM8-A61

Unavailable

SPRING, RECOIL STARTER

28402-HB6-004

$30.33

SPRING, FRICTION

28404-HN5-M01

Unavailable

ROPE, RECOIL STARTER

28407-HN5-M01

$11.61

KNOB, STARTER

28408-HN5-M01

$18.42

CASE, RECOIL STARTER

28410-HM8-A61

$26.64

REEL, RECOIL STARTER

28420-HM8-A61

$12.88

RATCHET, STARTER

28422-ZE1-003

$4.36

PULLEY, RECOIL

28430-HM8-A40

$82.51

PLATE, FRICTION

28434-HN5-M01

$13.19

PIN, STARTER RATCHET

28432-HB6-004

$2.26

GUIDE, RATCHET

28433-HN5-M01

$4.99

COVER, SPRING

28446-968-004

$5.32

BOLT

28448-HN5-M01

$4.52

BOLT, FLANGE UBS (10X66)

90001-HM8-000

$4.61

O-RING (1.5X9.5)

91306-MG3-000

$2.12

BOLT, FLANGE (6X14)

90105-MCE-750

$1.30

CAP, KNOB

28405-HN5-M01

$4.94
