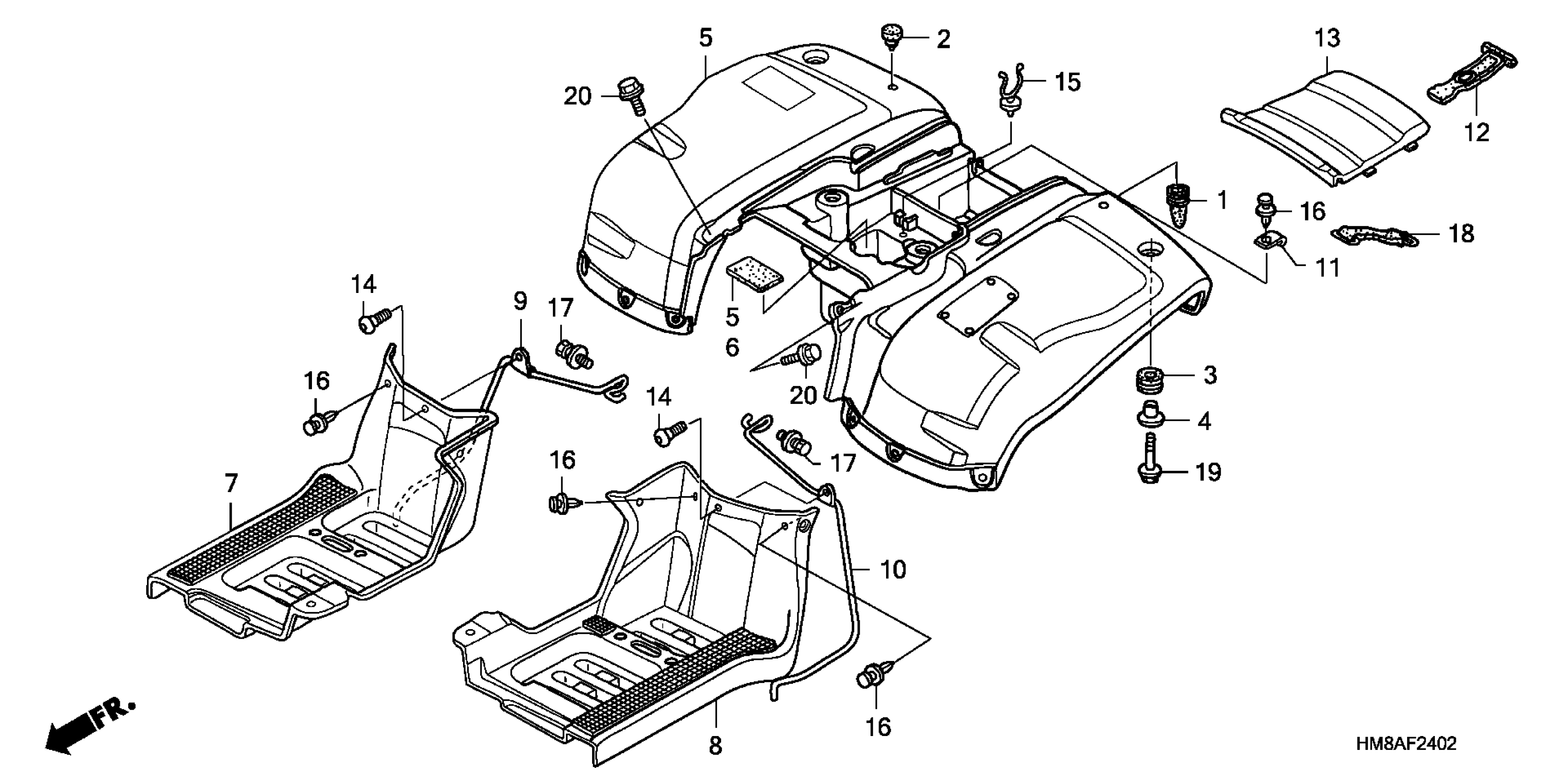

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 REAR FENDER (TM/TE '05) Diagram

TUBE, DRAIN

17358-VM4-000

$10.24

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HM8-B00ZA

$186.32

FENDER, RR. *R232* (PATRIOT RED)

80100-HM8-B00ZB

$197.64

FENDER, RR. *Y151R* (STARBURST YELLOW)

80100-HM8-B00ZC

$197.66

RUBBER, BATTERY MOUNTING

80102-HN2-300

$1.49

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HM8-B00ZA

$63.05

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HM8-B00ZA

$63.05

STAY, R. RR. SPLASH GUARD

80123-HM8-B00

$7.58

STAY, L. RR. SPLASH GUARD

80124-HM8-B00

$7.58

STAY B, TOOL BOX

80132-HM8-000

$1.64

BAND, TOOL BOX

80214-HM5-850

$2.56

COVER, TOOL BOX *NH1* (BLACK)

80311-HM8-B00ZD

$12.18

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

CLAMP, HARNESS

90119-HA7-670

$3.72

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

BOLT-WASHER (6X16)

93404-06016-07

$1.55

BAND A, BATTERY

95012-11001

$2.92

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6MM)

90111-187-000

$5.59
