Partiron

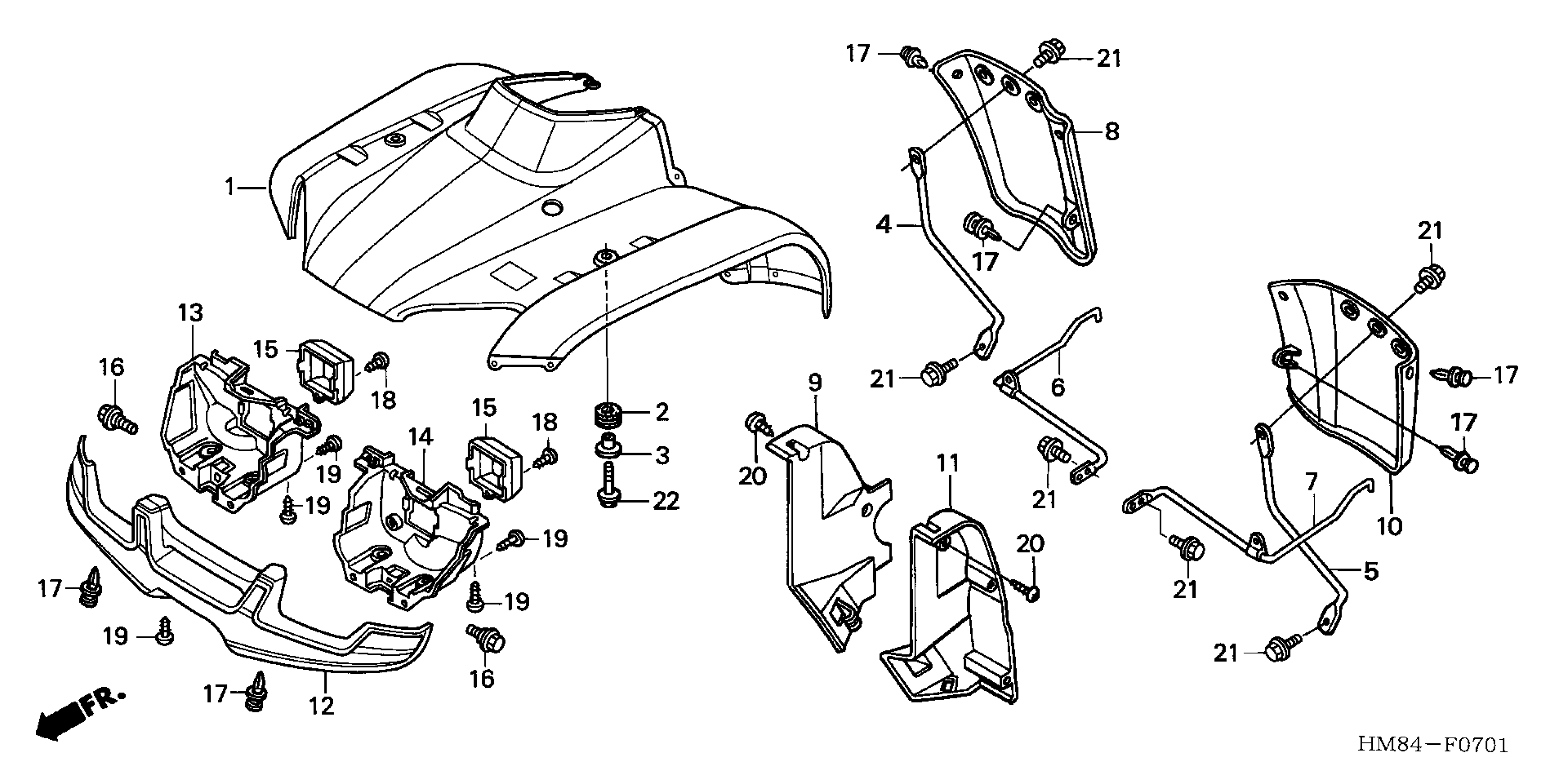

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 FRONT FENDER ('05) Diagram

#

Description
Price

1

FENDER SET, FR. (TYPE2) (WL) This part replaces 61100-HM8-B00ZA.

61150-HM8-B40ZB

$158.20

1

FENDER SET, FR. (TYPE1) (WL) This part replaces 61100-HM8-B00ZB.

61150-HM8-B40ZA

$179.96

1

FENDER SET, FR. (TYPE3) (WL) This part replaces 61100-HM8-B00ZC.

61150-HM8-B40ZC

$168.37

1

FENDER SET, FR. (TYPE1) (WL)

61150-HM8-B40ZA

$179.96

1

FENDER SET, FR. (TYPE2) (WL)

61150-HM8-B40ZB

$158.20

1

FENDER SET, FR. (TYPE3) (WL)

61150-HM8-B40ZC

$168.37

2

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

4

STAY, R. FR. FENDER

61105-HM8-B00

$13.87

5

STAY, L. FR. FENDER

61106-HM8-B00

$12.99

6

STAY, R. SPLASH GUARD CENTER

61107-HM8-B00

$8.32

7

STAY, L. SPLASH GUARD CENTER

61108-HM8-B00

$7.82

8

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61861-HM8-B00ZA

$15.64

9

FENDER, R. (INNER)

61862-HM8-B00

$9.28

10

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61866-HM8-B00ZA

$15.64

11

FENDER, L. (INNER)

61867-HM8-B00

$8.72

12

GRILLE, FR. *NH1* (BLACK)

66300-HM8-B00ZA

$18.48

13

COVER, R. HEADLIGHT

66301-HN7-010

$31.45

14

COVER, L. HEADLIGHT

66302-HN7-010

$31.45

15

CAP, HEADLIGHT TAIL

66303-HN5-670

$4.28

16

BOLT, FLANGE (6MM)

90111-162-000

$2.66

17

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

18

SCREW, TAPPING (4X12)

93903-24320

$0.90

19

SCREW, TAPPING (5X12)

93903-25220

$0.90

20

SCREW, TAPPING (6X16)

93904-26210

$0.56

21

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

22

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
