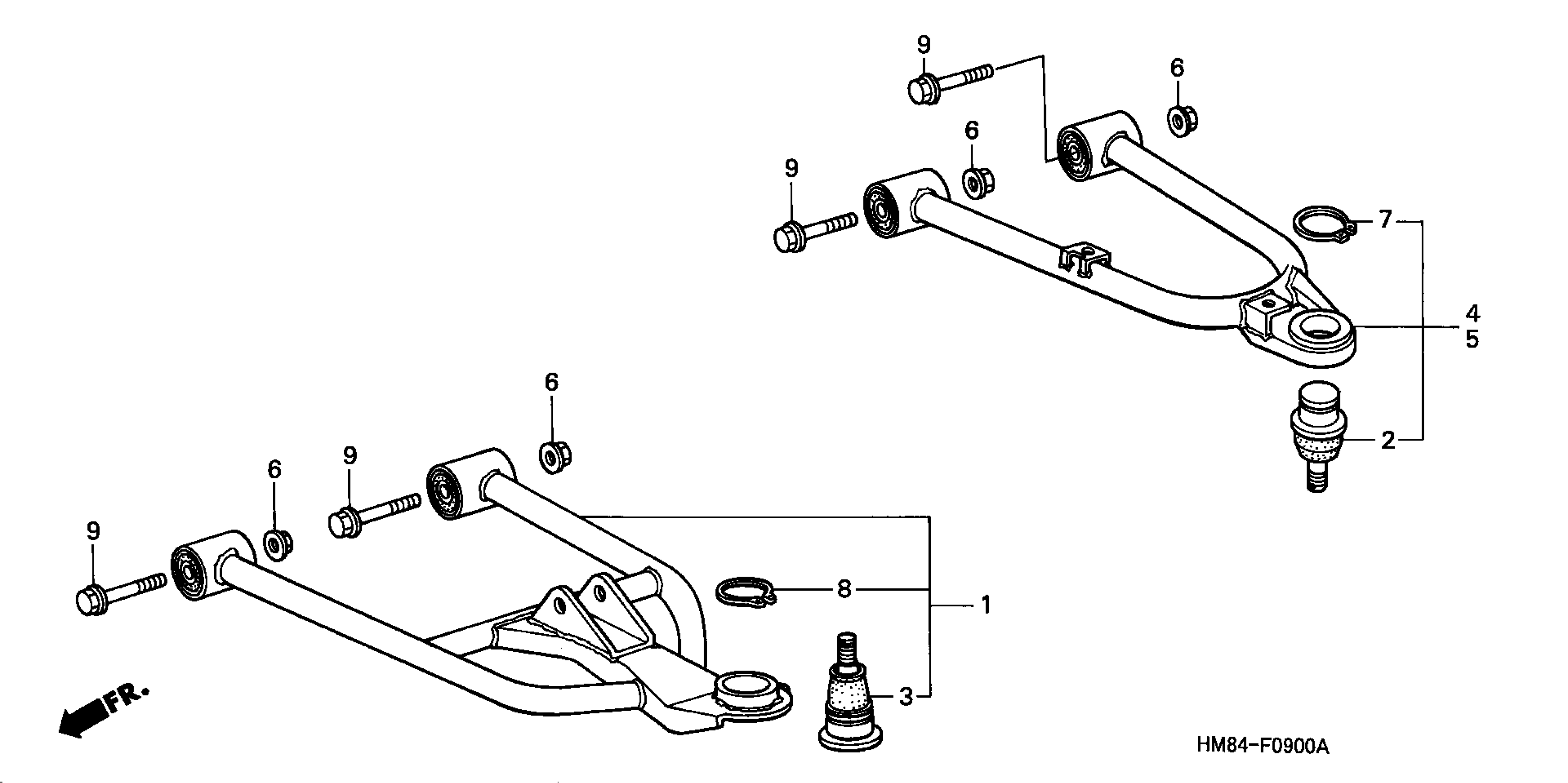

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 FRONT ARM Diagram

#

Description
Price

1

ARM ASSY. (LOWER)

51350-HM8-000

$399.68

2

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$16.93

2

JOINT A, ARM BALL

51355-HP5-601

$16.93

3

JOINT A, ARM BALL

51355-HM8-005

$81.44

4

ARM ASSY., R. (UPPER)

51370-HM8-A00

$379.59

5

ARM ASSY., L. (UPPER)

51380-HM8-A00

$389.09

6

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

7

CIRCLIP (OUTER) (32MM)

94514-32000

$0.91

8

CIRCLIP (OUTER) (40MM)

94514-40000

$1.86

9

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

9

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
