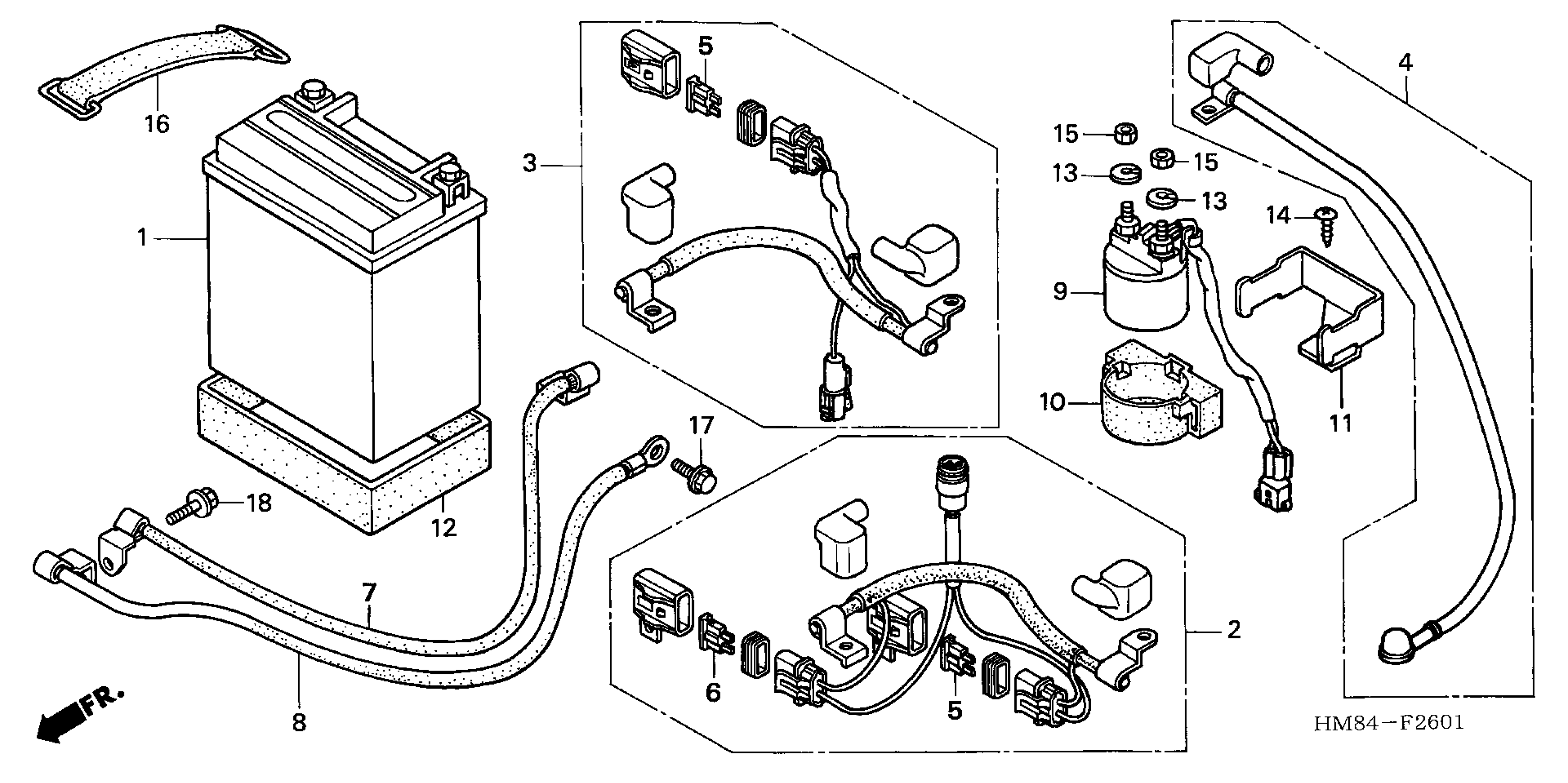

Honda TRX250TEA (05) FOURTRAX RECON ES, USA, VIN# 1HFTE214-54500001 BATTERY ('05) Diagram

BATTERY (YTX12-BS) This part replaces 31500-HF1-678AH.

31500-HS0-AK1AH

Unavailable

CABLE, STARTER BATTERY

32401-HM8-B10

$61.85

CABLE, STARTER MOTOR

32402-HM8-010

$44.57

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

FUSE, BLADE (30A) This part replaces 32507-SM4-003.

98200-33000

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49

CABLE, BATTERY GROUND

32601-HM8-B00

$24.30

CABLE, FRAME GROUND

32603-HM8-B00

$37.54

SWITCH ASSY., STARTER MAGNETIC

35850-HM8-B00

$57.09

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

RUBBER, BATTERY BAND

50383-HF1-670

$8.08

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
