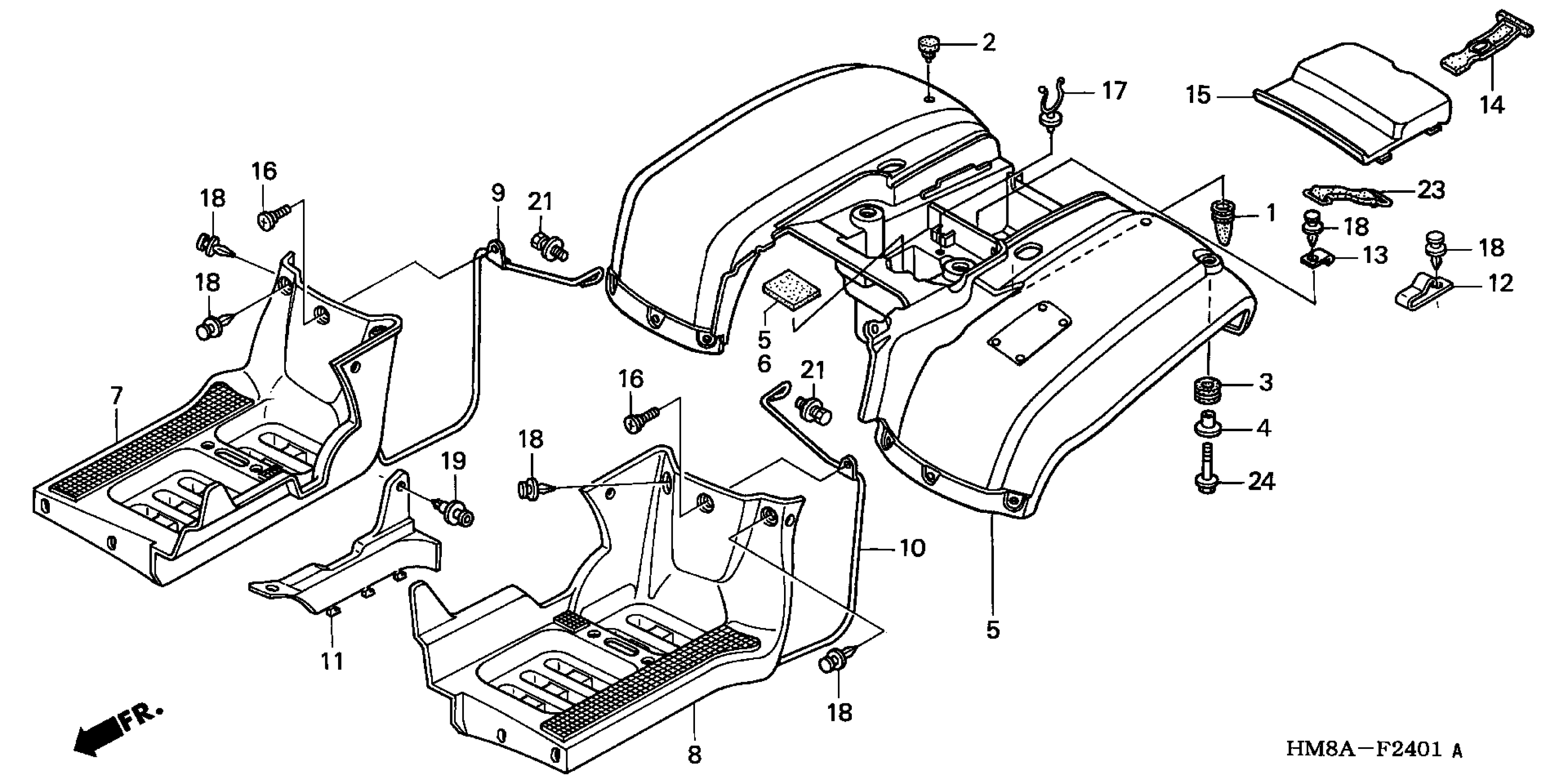

Honda TRX250TEA (04) FOURTRAX RECON ES, USA, VIN# 478TE214-44400001 REAR FENDER (TE '02-'04) Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$9.44

2

RUBBER, STAND STOPPER

50505-GA7-730

$2.06

3

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

5

FENDER, RR. *G152* (WOL) (ADVENTURE GREEN)

80100-HM8-A40ZA

$471.31

5

FENDER, RR. *R232* (WOL) (PATRIOT RED)

80100-HM8-A40ZB

$479.91

5

FENDER, RR. *Y151R* (WOL) (STARBURST YELLOW)

80100-HM8-A40ZD

$483.50

6

RUBBER, BATTERY MOUNTING

80102-HN2-300

$1.26

7

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HM8-A50ZA

$127.66

8

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HM8-A50ZA

$127.65

9

STAY, R. RR. SPLASH GUARD

80123-HM8-A50

Unavailable

10

STAY, L. RR. SPLASH GUARD

80124-HM8-A50

$100.18

11

COVER, R. ENGINE SUB *NH1* (BLACK)

80125-HM8-A50ZA

Unavailable

12

STAY A, TOOL BOX

80131-HM8-A40

Unavailable

13

STAY B, TOOL BOX

80132-HM8-000

$1.47

14

BAND, TOOL BOX

80214-HM5-850

$2.29

15

COVER, TOOL BOX *G152* (ADVENTURE GREEN)

80311-HM8-A30ZA

$30.66

15

COVER, TOOL BOX *R232* (PATRIOT RED)

80311-HM8-A30ZB

$30.93

15

COVER, TOOL BOX *Y151R* (STARBURST YELLOW)

80311-HM8-A30ZD

$28.56

16

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

17

CLAMP, HARNESS

90119-HA7-670

$3.56

18

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

19

CLIP, LID

90658-HN5-671

$2.06

21

BOLT-WASHER (6X16)

93404-06016-07

$1.63

23

BAND A, BATTERY

95012-11001

$2.80

24

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
