Partiron

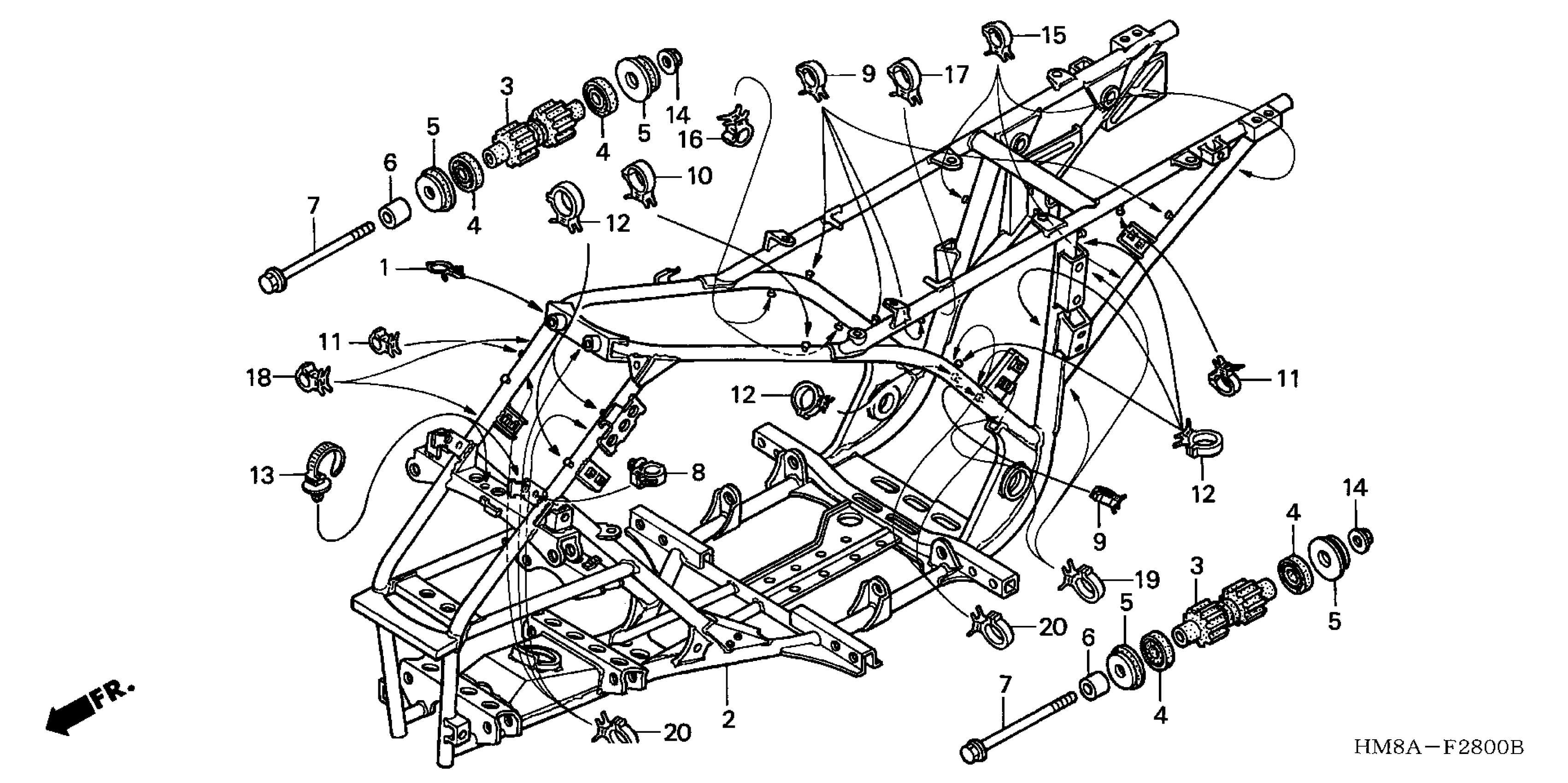

Honda TRX250TEA (04) FOURTRAX RECON ES, USA, VIN# 478TE214-44400001 FRAME Diagram

#

Description
Price

1

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.65

2

FRAME

50100-HM8-A50

$1,669.00

3

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-003

$37.61

4

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$18.33

5

RUBBER C, MOUNTING

50204-HM8-000

$6.49

6

COLLAR, ENGINE HANGER

50205-HM8-000

$7.60

7

BOLT, FLANGE (10X145)

90115-HM8-003

$6.13

8

CLAMP, HARNESS

90652-HC4-003

$5.54

9

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

10

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

11

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

12

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

13

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.78

14

NUT, FLANGE (10MM)

94050-10000

$1.41
