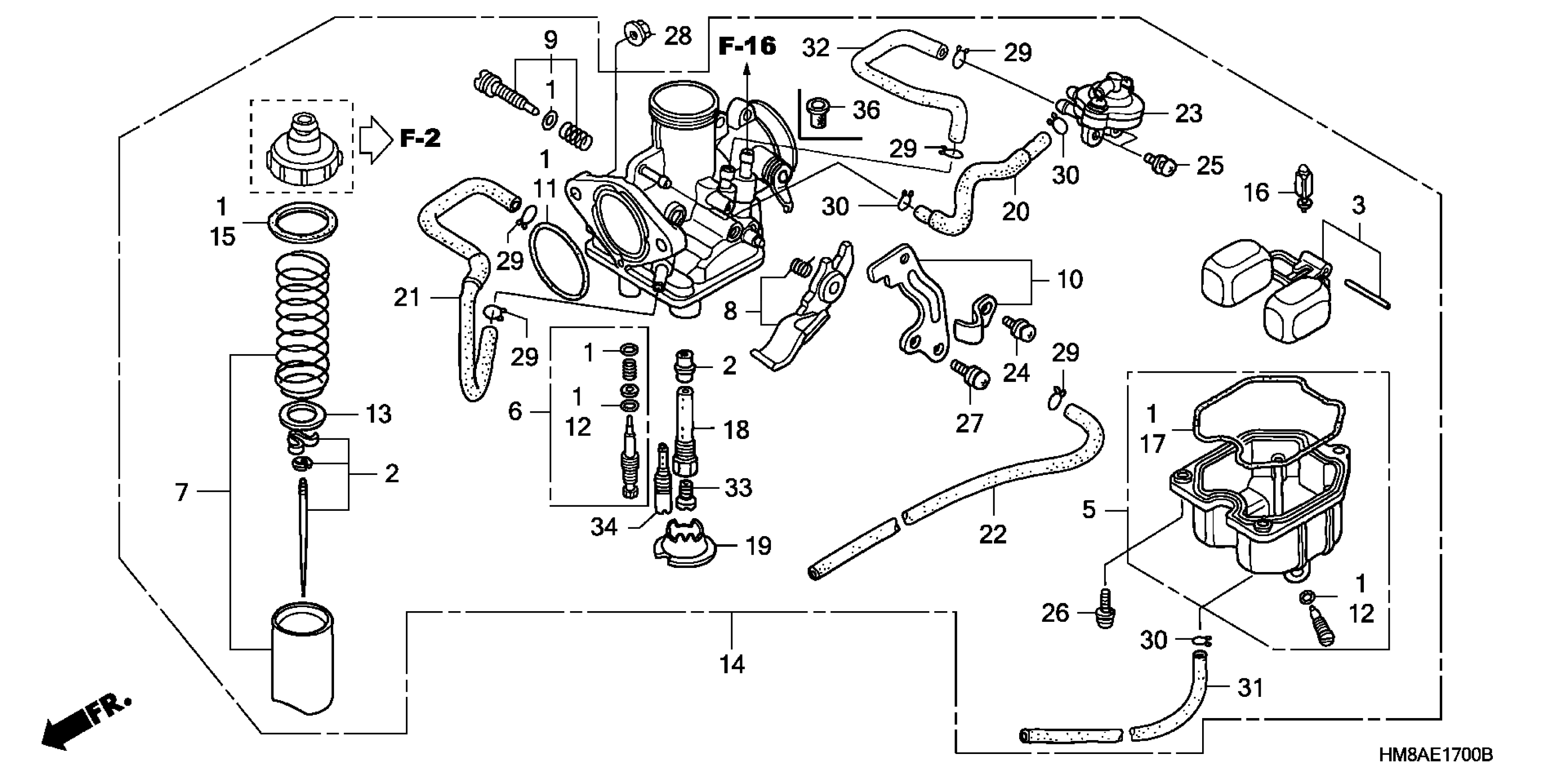

Honda TRX250TEA (04) FOURTRAX RECON ES, USA, VIN# 478TE214-44400001 CARBURETOR Diagram

GASKET SET

16010-HM8-000

$22.41

NEEDLE SET, JET

16012-HM8-A41

$55.90

FLOAT SET

16013-HM8-A41

$37.64

CHAMBER SET, FLOAT

16015-HN6-003

$123.30

SCREW SET A

16016-HM8-000

Unavailable

VALVE SET, THROTTLE

16022-HM8-A41

Unavailable

LEVER SET, CHOKE

16025-KC2-881

Unavailable

SCREW SET B

16028-KEB-G01

$12.44

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

PLATE SET, STAY

16035-HM8-000

$39.02

O-RING (2.4X29)

16075-GHB-B70

$7.81

O-RING (1.3X4.3)

16075-GHB-640

$2.92

PLATE B, VALVE

16092-HM8-A01

$5.62

CARBURETOR ASSY. (PDC1E A)

16100-HM8-A41

$349.48

GASKET, TOP

16110-KN4-651

$7.69

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$32.50

VALVE, FLOAT

16155-413-751

$32.50

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

HOLDER, NEEDLE JET

16165-HM8-000

$35.15

HOLDER, JET

16168-382-014

$9.81

TUBE

16197-HM8-000

$2.67

TUBE

16198-HM8-000

$2.92

TUBE

16199-HM8-000

Unavailable

VALVE ASSY., AIR CUT

16510-HM8-000

Unavailable

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

SCREW-WASHER (4X14)

93892-04014-08

$1.49

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

SCREW-WASHER (5X12)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B8)

95002-02089

$1.49

CLIP, TUBE (B6.5)

95002-02659

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X290)

95005-35001-50M

$13.72

BULK HOSE, VACUUM (4.5X1000) (4.5X140)

95005-45001-20M

$34.14

JET, MAIN (#95)

99101-GHB-0950

$8.77

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.98

JET, SLOW (#38)

99103-MT2-0380

$22.12
