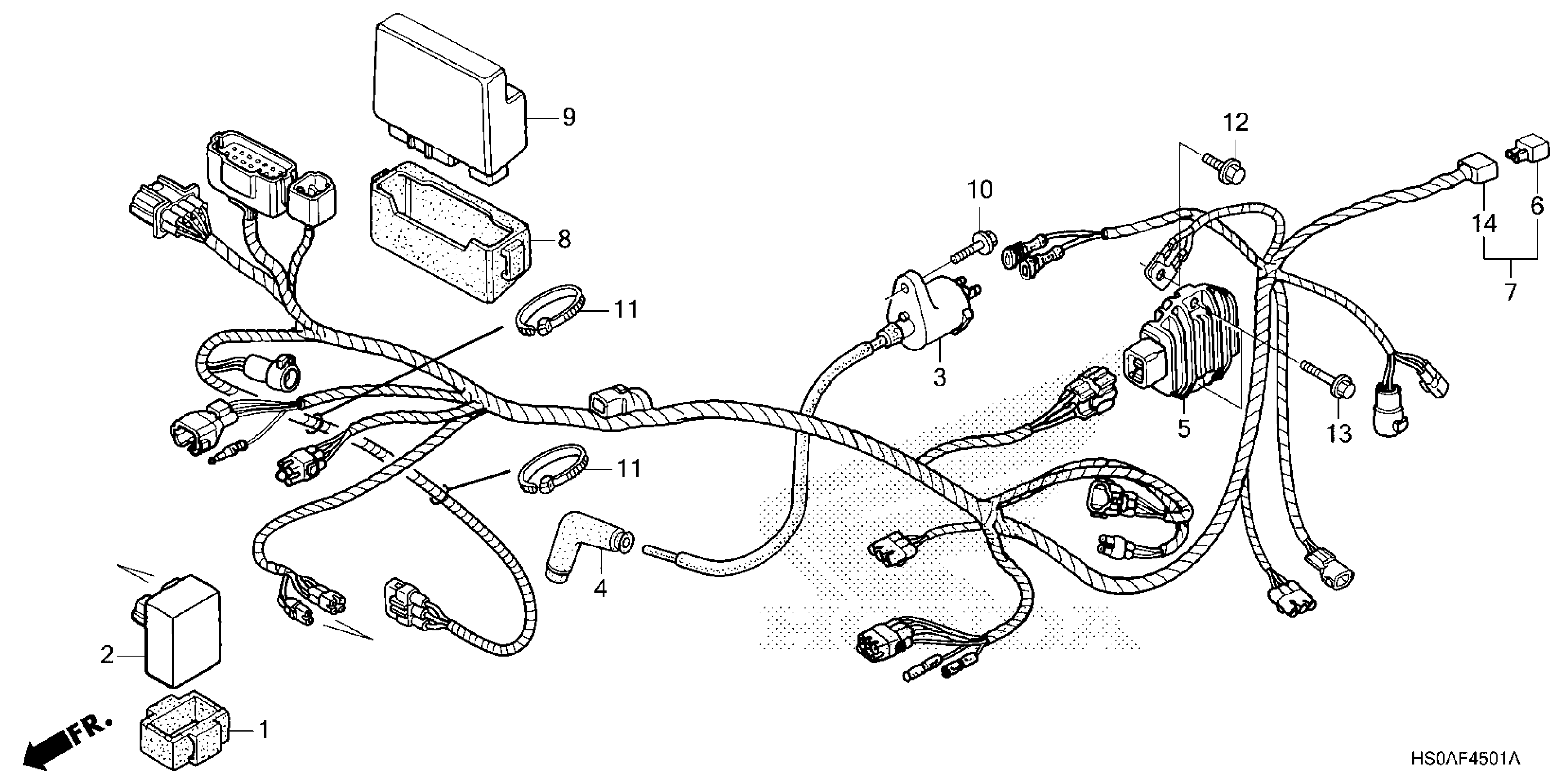

Honda TRX250TE1AC (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54C-L4400001 WIRE HARNESS (2) Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HB6-010

$3.51

MODULE, IGNITION CONTROL (CDI)

30410-HN6-000

$117.72

COIL, IGNITION

30510-HN6-000

$24.57

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

RECTIFIER ASSY., REGULATOR

31600-HM8-B00

$51.70

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS

32100-HM8-B50

$994.38

SUSPENSION, CONTROL UNIT

38901-HN5-A10

$19.02

CONTROL UNIT, CHANGE This part replaces 38910-HM8-A51.

38910-HM8-A52

$227.12

CONTROL UNIT, CHANGE

38910-HM8-A52

$227.12

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
