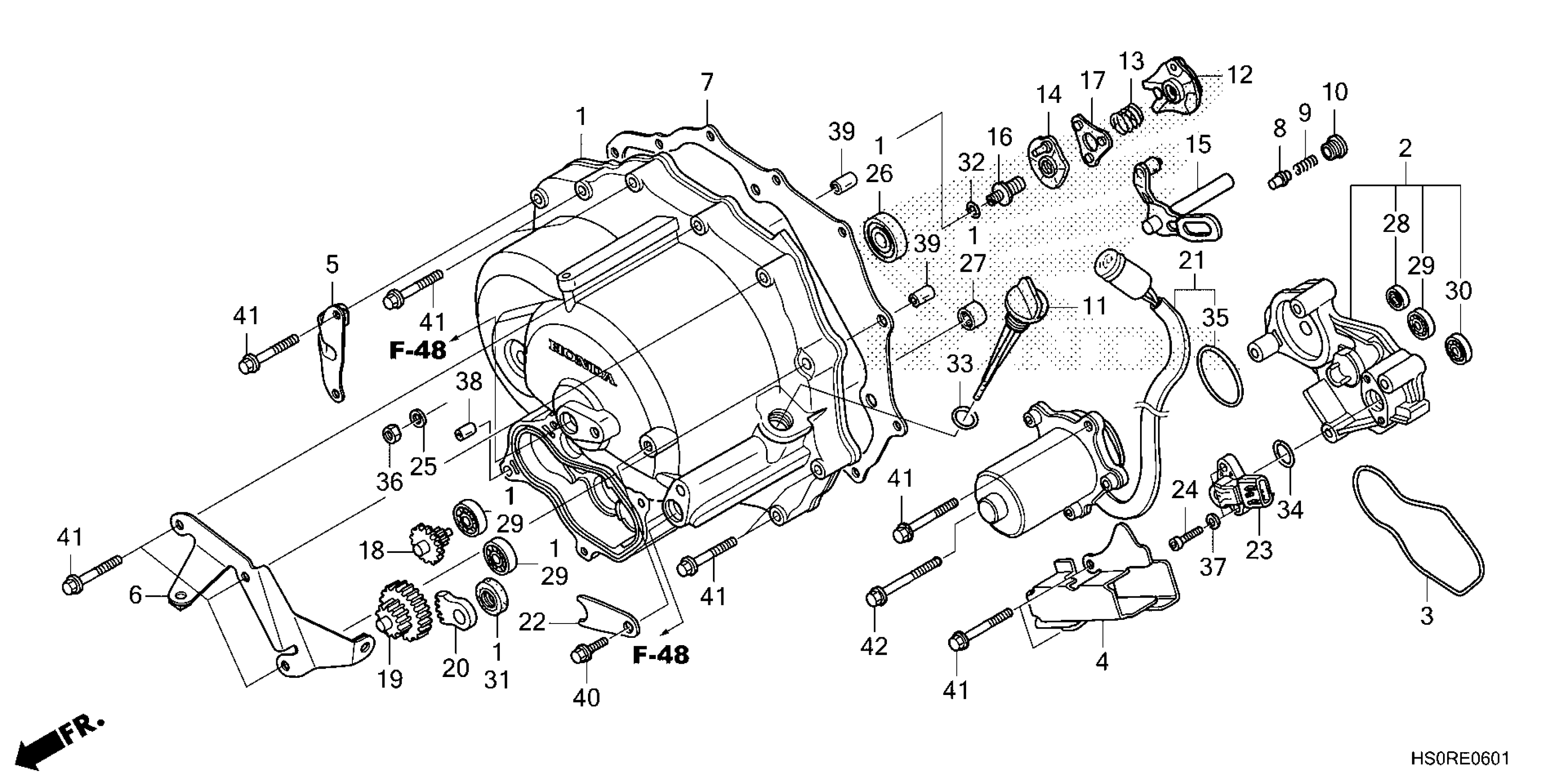

Honda TRX250TE1A (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE540-TJ200001 TO 1HFTE540-TJ299999 FRONT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER, FR. CRANKCASE

11330-HM8-A50

$206.44

2

COVER, REDUCTION GEAR

11335-HM8-A50

$51.34

3

O-RING, REDUCTION GEAR COVER

11337-HM8-A50

$5.25

4

PROTECTOR, ANGLE SENSOR

11339-HM8-A50

$28.54

5

STAY, R. FR. ENGINE COVER

11365-HM8-B00

$8.03

6

STAY, L. FR. ENGINE COVER

11385-HM8-B00

$8.00

7

GASKET, FR. CRANKCASE COVER

11394-HM8-000

$26.03

8

VALVE, RELIEF

15231-HM3-670

$12.43

9

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

10

CAP, RELIEF VALVE

15235-HM3-670

$21.69

11

DIPSTICK, OIL

15651-HM8-000

$10.74

12

PLATE, CLUTCH CAM

22820-HN6-000

$18.90

13

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

14

PLATE, CLUTCH LIFTER

22830-HB6-000

$21.17

15

SUB-LEVER, CLUTCH LIFTER

22840-HM8-000

$35.26

16

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$6.07

17

RETAINER, BALL

22860-HB3-000

$7.81

18

GEAR, REDUCTION (41T/10T)

24615-HN0-771

$16.62

19

GEAR, REDUCTION (40T/12T)

24616-HN0-771

$18.28

20

GEAR, REDUCTION (7/43T)

24617-HN0-771

$8.13

21

MOTOR ASSY., CONTROL

31300-HM8-A51

$229.27

22

PLATE, WIRE GUIDE

31305-HM8-A50

$2.11

23

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

24

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

25

WASHER (8MM)

90485-040-000

$1.77

26

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

27

BEARING, NEEDLE (10X14X10) (TORRINGTON)

91021-HN0-671

$13.89

27

BEARING, NEEDLE (1010) (TOYO)

91021-148-004

$23.20

28

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

29

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

30

BEARING, RADIAL BALL (698ZZ)

91070-HN0-A11

$11.15

31

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

31

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

32

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

33

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

34

O-RING (16.8X1.9)

91308-HM8-A51

$2.70

35

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

36

NUT, HEX. (8MM)

94030-08000

$1.49

37

WASHER, PLAIN (5MM)

94101-05800

$1.49

38

PIN A, DOWEL (8X10)

94301-08100

$2.25

39

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

41

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

42

BOLT, FLANGE (6X45)

95701-06045-08

$2.06
