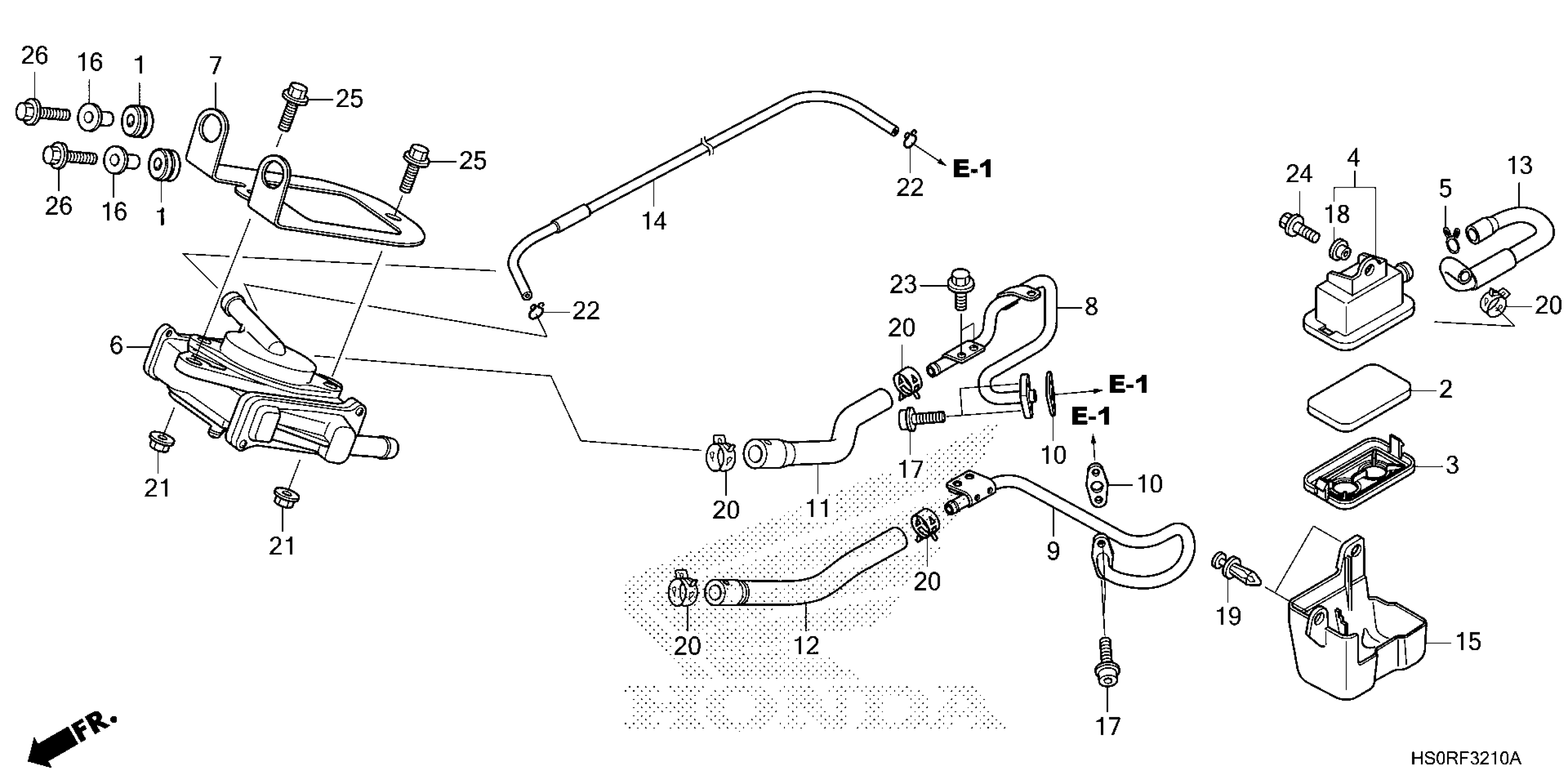

Honda TRX250TE1A (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE540-TJ200001 TO 1HFTE540-TJ299999 AIR SUCTION VALVE Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

FILTER, SUB-AIR CLEANER

17255-HS0-A00

$1.48

COVER, SUB-AIR CLEANER

17256-KBH-000

$12.15

CASE, SUB-AIR CLEANER

17256-MR7-010

$14.95

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

VALVE ASSY., AIR SUCTION

18600-HS0-A01

$106.77

STAY, AIR SUCTION VALVE MOUNT

18601-HS0-A00

$1.82

PIPE, R. AIR SUCTION

18640-HS0-A00

$130.22

PIPE, L. AIR SUCTION

18643-HS0-A00

$113.92

GASKET, AIR FEED PIPE

18645-HS0-A00

$1.29

HOSE, R. AIR SUCTION (A)

18651-HS0-A00

$24.15

HOSE, L. AIR SUCTION (A)

18652-HS0-A00

$25.83

HOSE, AIR SUCTION (B)

18653-HS0-A00

$17.03

TUBE, PB

18655-HS0-A00

$2.78

PROTECTOR, SUB-AIR CLEANER

18658-HS0-A00

$4.94

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

BOLT, FLANGE SOCKET (6X20)

90097-MY6-880

$4.19

WASHER, CHAIN CASE SETTING

90522-028-000

$2.78

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

CLIP, FUEL HOSE

90678-MN5-000

$2.63

NUT, FLANGE (6MM)

94050-06000

$0.63

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.69

BOLT, FLANGE (6X10)

95701-06010-02

$1.71

BOLT, FLANGE (6X16)

95701-06016-08

$1.40

BOLT, FLANGE (6X20)

95701-06020-08

$0.42

BOLT, FLANGE (6X22)

95701-06022-08

$1.88
