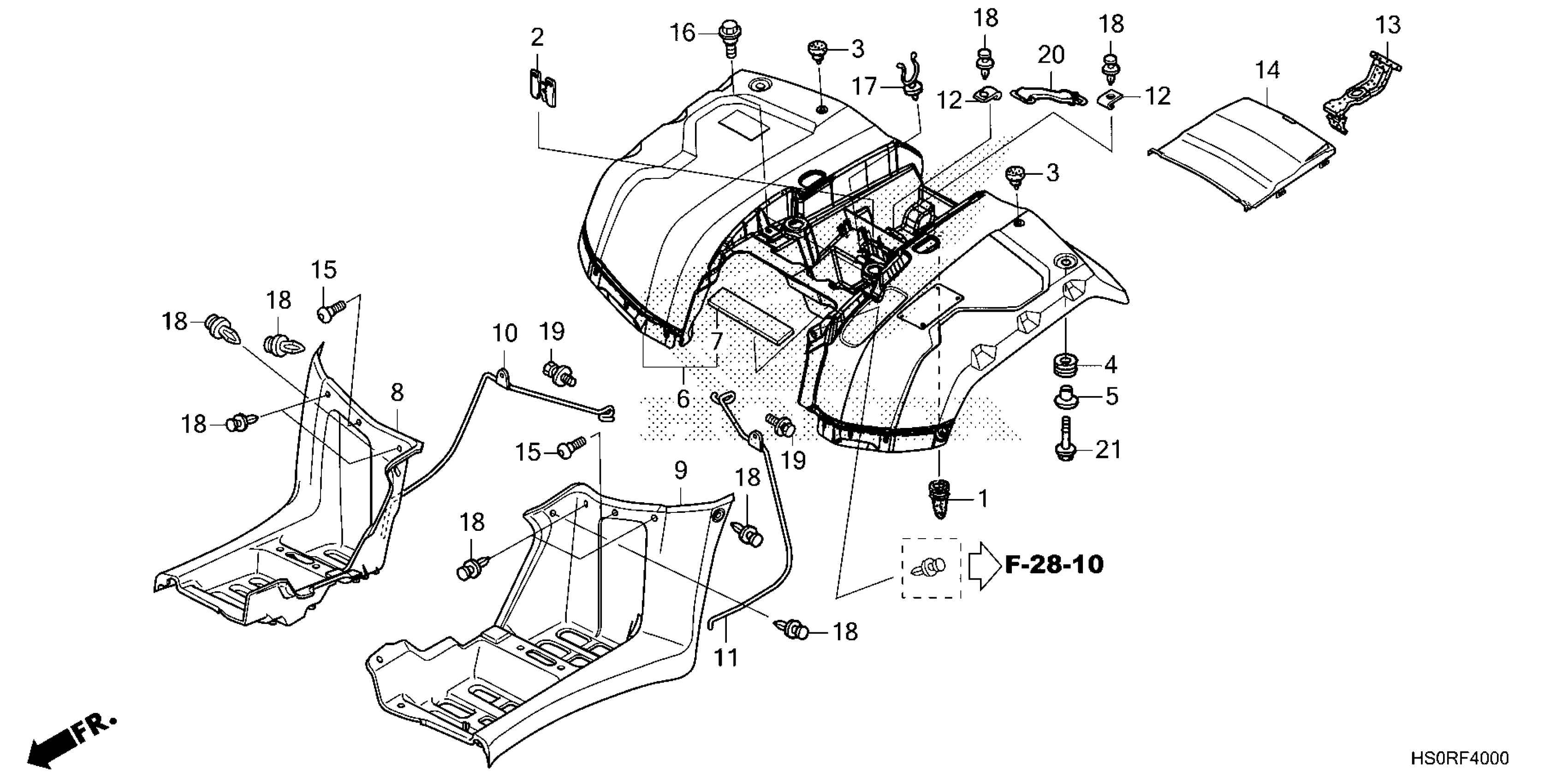

Honda TRX250TE1A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-R4800001 TO 1HFTE54A-R4899999 REAR FENDER Diagram

TUBE, DRAIN

17358-VM4-000

$9.44

STAY, FUSE CONNECTOR

50328-HN2-000

$1.48

RUBBER, STAND STOPPER

50505-GA7-730

$2.15

RUBBER, FR. FENDER MOUNTING (Honda Code 4735148)

61103-HM5-850

$1.43

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

FENDER, RR. *R401R*

80100-HS0-AQ0ZA

$158.08

FENDER, RR. *G215R*

80100-HS0-AQ0ZB

$158.08

FENDER, RR. *GY159R*

80100-HS0-AQ0ZC

$158.08

RUBBER, BATTERY MOUNTING

80102-HN2-300

$1.32

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HM8-B00ZA

$56.37

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HM8-B00ZA

$56.37

STAY, R. RR. SPLASH GUARD

80123-HM8-B00

$7.02

STAY, L. RR. SPLASH GUARD

80124-HM8-B00

$7.02

STAY B, TOOL BOX

80132-HM8-000

$1.54

BAND, TOOL BOX

80214-HM5-850

$2.40

COVER, TOOL BOX *NH1* (BLACK)

80311-HM8-B00ZD

$10.89

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.25

BOLT, FLANGE (6MM)

90111-187-000

$7.39

CLAMP, HARNESS

90119-HA7-670

$3.56

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.57

BOLT-WASHER (6X16)

93404-06016-07

$1.71

BAND A, BATTERY

95012-11001

$2.80

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
