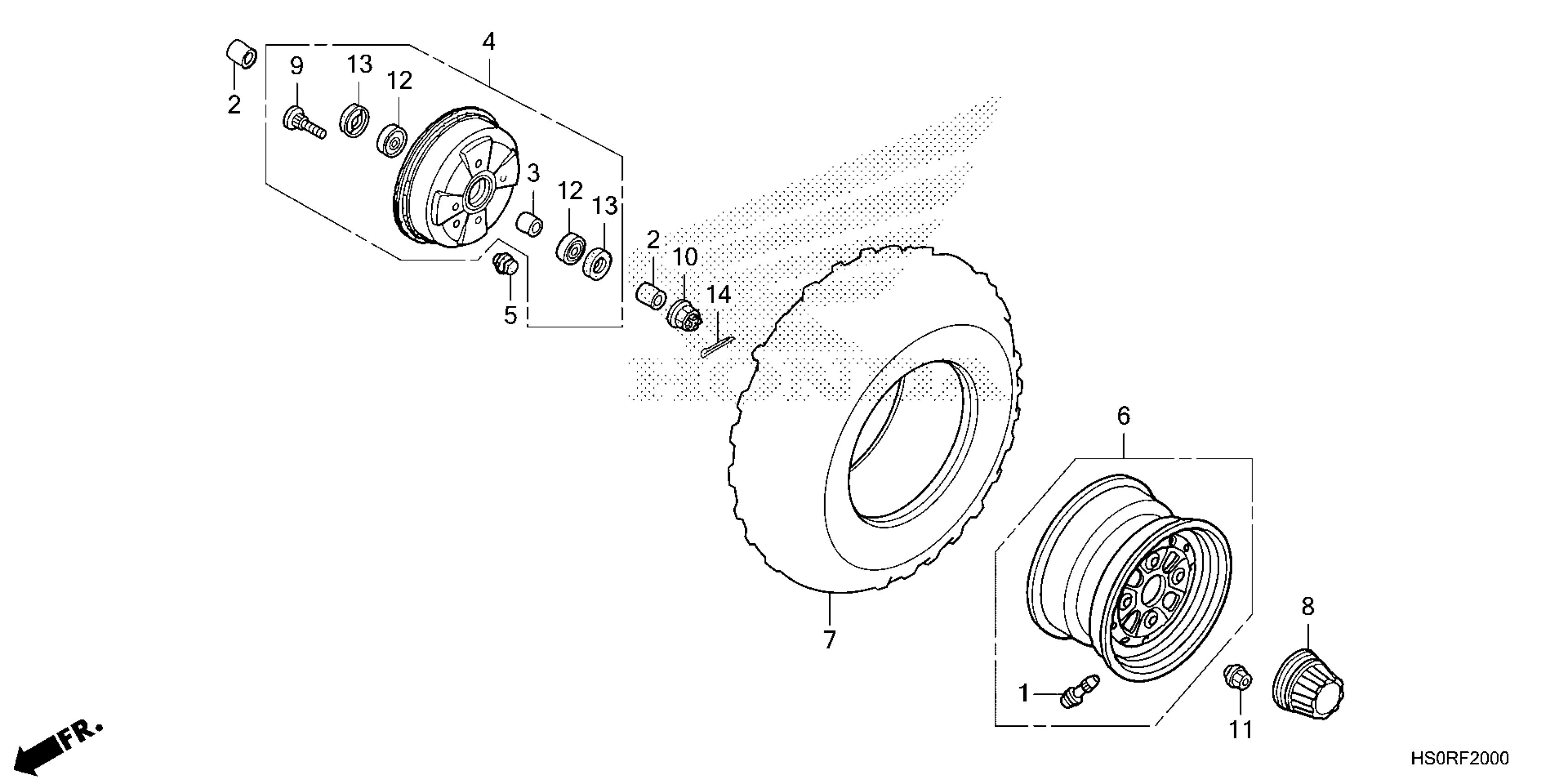

Honda TRX250TE1A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-R4800001 TO 1HFTE54A-R4899999 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$5.37

COLLAR, FR. WHEEL

44312-HC4-840

$2.92

COLLAR, FR. WHEEL

44312-HF1-670

$13.41

HUB ASSY., FR. WHEEL (MSDS) HUB, FR. WHEEL

44600-HM8-000

$61.63

PLUG, ADJUSTING HOLE

44602-HM5-A10

$4.10

WHEEL SUB-ASSY., FR. (TYPE2)

44650-HM8-700ZA

$57.69

TIRE (22X7-11) (CST) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)

44711-HM8-B61

$98.80

CAP, WHEEL CENTER

44732-HC4-010

$23.29

BOLT, WHEEL (10X33)

90103-HA0-300

$7.88

NUT, CASTLE (18MM)

90304-HM5-A80

$7.30

NUT, WHEEL

90314-HM5-A10

$3.39

BEARING, RADIAL BALL (6004) (OD 42MM)

91053-HC4-000

$19.94

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$19.94

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

PIN, COTTER (4.0X30)

94201-40300

$1.49
