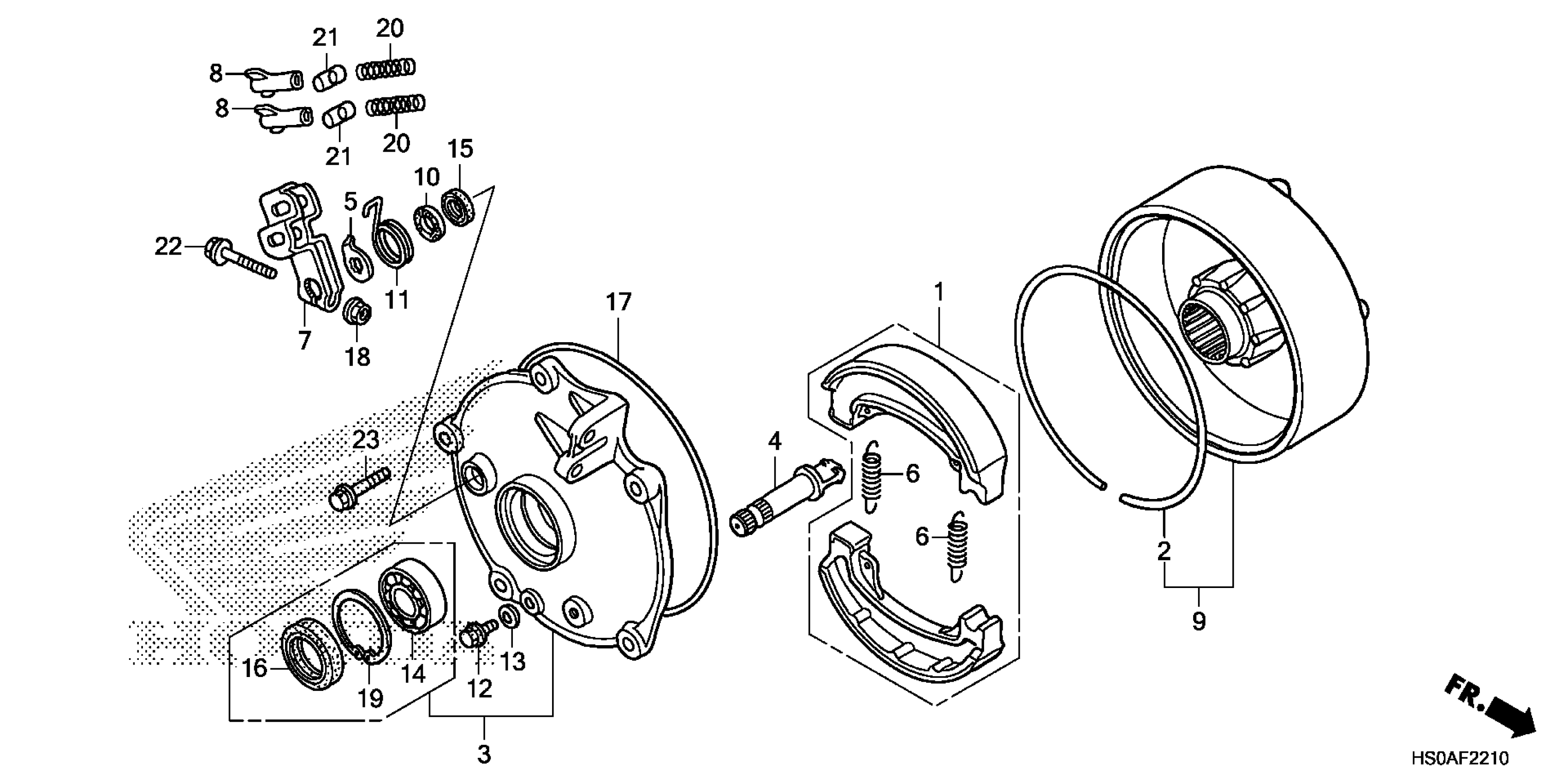

Honda TRX250TE1A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-N4600001 TO 1HFTE54A-N4699999 REAR BRAKE DRUM Diagram

SHOE SET, BRAKE (ASK)

06430-HM8-A00

$36.82

RING, DAMPER

42624-HB3-000

$18.51

PANEL SET, RR. BRAKE

43010-HM8-000

$256.43

CAM, RR. BRAKE

43141-KB4-003

$36.47

INDICATOR, RR. BRAKE

43145-HM8-000

$4.01

SPRING, BRAKE SHOE (THIS APPLICATION-FRONT)

43151-329-000

$2.75

ARM, RR. BRAKE

43410-HM8-000

$18.67

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

DRUM ASSY., RR. BRAKE

43620-HM8-000

$288.99

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

SPRING, BRAKE ARM RETURN

45411-GB4-680

$4.53

BOLT, SEALING (8MM)

90109-371-000

$2.58

WASHER (8MM)

90471-580-000

$2.92

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$43.95

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.80

DUST SEAL (43X58X10)

91252-HM8-003

$13.05

O-RING (166X2.6)

91355-HM8-003

$6.45

NUT, FLANGE (6MM)

94050-06000

$1.49

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.79
