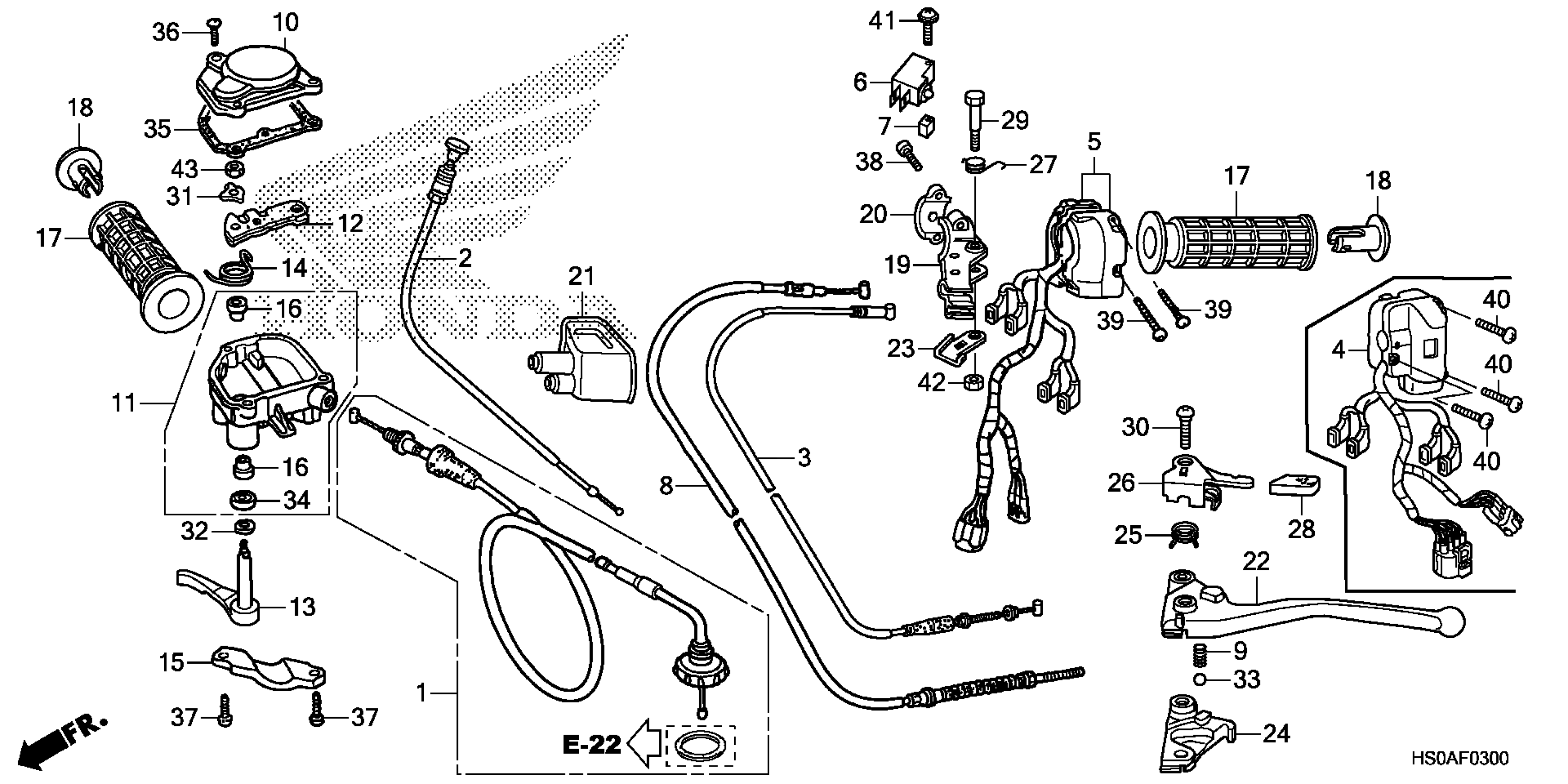

Honda TRX250TE1A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-N4600001 TO 1HFTE54A-N4699999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HM8-B00

$48.19

2

CABLE, CHOKE

17950-HM8-B20

$8.68

3

CABLE, REVERSE ASSIST

22880-HM8-B00

$8.99

4

SWITCH ASSY., ELECTRIC SHIFT

35140-HS0-AF1

$76.25

6

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$17.31

6

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$17.31

7

COLLAR, STOP SWITCH

35345-HF1-830

$5.98

8

CABLE, HAND BRAKE

43460-HS0-A00

$10.57

9

SPRING, PLUNGER

47155-MGE-D00

$3.60

10

COVER, THROTTLE CASE

53141-HP1-000

$34.98

11

CASE ASSY., THROTTLE LEVER (FOR CASE WITH SWITCH PLEASE USE 53143-HN0-305)

53143-HM7-305

$48.58

12

ARM, THROTTLE

53144-HA0-010

$7.67

13

LEVER, THROTTLE

53145-HA0-770

$23.07

14

SPRING, THROTTLE RETURN

53146-HM8-000

$3.08

15

HOLDER, THROTTLE CASE

53147-HM5-850

$3.58

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.96

17

GRIP, HANDLE

53165-HP5-600

$3.70

18

GUARD, HANDLE END

53167-HP5-600

$2.25

19

BRACKET, BRAKE LEVER

53172-HN5-M50

$16.88

20

HOLDER, LEVER BRACKET

53173-376-000

$10.49

21

COVER, L. HANDLE

53177-HN5-M40

$6.24

22

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HR6-A60.

53178-HR6-305

$20.53

22

LEVER, L. HANDLEBAR (COO)

53178-HR6-305

$20.53

23

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$1.89

24

ARM, REVERSE ASSISTANT

53179-HR6-A60

$5.07

25

SPRING, PARKING LEVER (A)

53191-HR6-A60

$2.15

26

LEVER, PARKING BRAKE LOCK

53192-HR6-A60

$8.17

27

SPRING, PARKING LEVER RETURN

53193-HN5-C20

$3.08

28

CAP, PARKING LEVER

53193-HR6-A60

$2.71

29

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$8.57

30

SCREW, PARKING LEVER PIVOT

90115-HR6-A60

$1.06

31

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

32

WASHER (9X20)

90504-HA0-000

$2.20

33

BALL, STEEL (#6) (3/16)

91101-MAM-A80

$0.17

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.90

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.90

35

GASKET, THROTTLE CASE

91532-HA0-020

$6.12

36

SCREW, PAN (4X16)

93500-04016-0G

$0.86

37

SCREW, PAN (5X14)

93500-05014-0G

$3.54

38

SCREW, PAN (5X18)

93500-05018-0G

$0.45

40

SCREW, PAN (5X28)

93500-05028-0G

Unavailable

41

SCREW-WASHER (4X20)

93893-04020-07

$0.88

42

NUT, HEX. (6MM)

94001-06070-0S

$1.37

43

NUT, HEX. (6MM)

94002-06000-0S

$1.37
