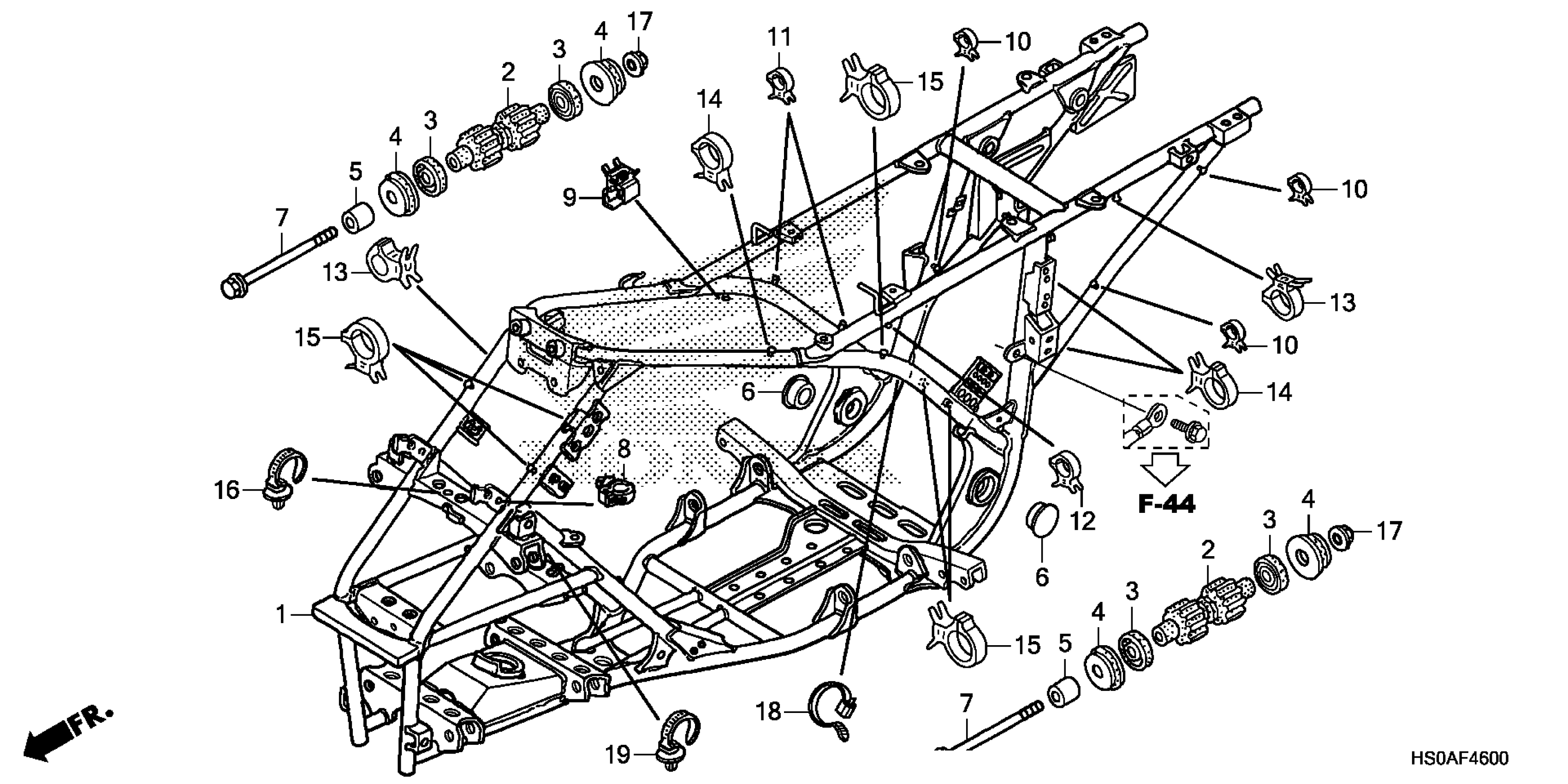

Honda TRX250TE1A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-N4600001 TO 1HFTE54A-N4699999 FRAME Diagram

FRAME

50100-HS0-AF0

$731.94

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-B41

$16.90

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$18.73

RUBBER C, MOUNTING

50204-HM8-000

$6.66

COLLAR, ENGINE HANGER

50304-HN8-000

$5.04

CAP, MAIN STAND PIPE

50750-MB0-000

$5.64

BOLT, FLANGE (10X145)

90115-HM8-003

$6.29

CLAMP, HARNESS

90652-HC4-003

$5.68

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$2.81

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

Unavailable

NUT, FLANGE (10MM)

94050-10000

$1.43

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

Unavailable
