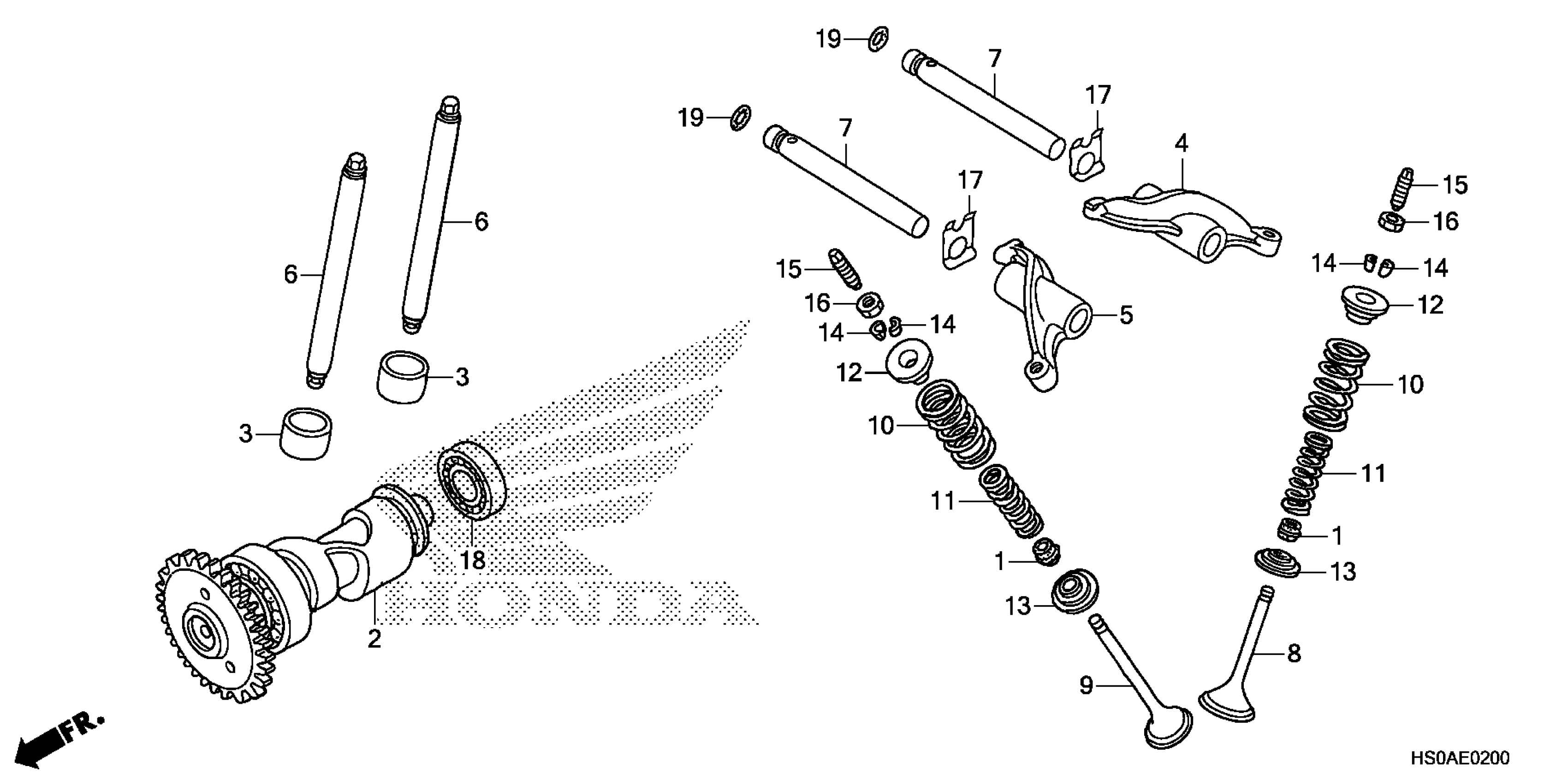

Honda TRX250TE1A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE54A-N4600001 TO 1HFTE54A-N4699999 CAMSHAFT@VALVE Diagram

SEAL, VALVE STEM

12209-HM8-A41

$10.17

CAMSHAFT

14100-HM8-A40

$128.69

FOLLOWER, CAM

14421-HM7-000

$33.82

ARM, IN. VALVE ROCKER

14431-HN6-000

$49.88

ARM, EX. VALVE ROCKER

14432-HN6-000

$49.88

ROD, PUSH

14440-HN6-000

$22.56

SHAFT, ROCKER ARM

14451-HN6-000

$12.91

VALVE, IN.

14711-HM8-A40

$34.64

VALVE, EX.

14721-HM8-A40

$57.96

SPRING, VALVE (OUTER)

14751-HN6-000

$8.99

SPRING, VALVE (INNER)

14761-HN6-000

$6.49

RETAINER, VALVE SPRING

14771-107-020

$7.95

SEAT, VALVE SPRING

14775-HM8-A40

$7.58

COTTER, VALVE

14781-HA0-770

$3.43

SCREW, TAPPET ADJUSTING

90012-415-000

$5.74

NUT, TAPPET ADJUSTING

90206-250-000

$3.07

WASHER, SPRING

90402-HN6-000

$3.36

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-004.

91008-HB3-003

$23.65

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-005.

91008-HB3-003

$23.65

BEARING, RADIAL BALL (16002)

91008-HB3-003

$23.65

O-RING (7.7X2.5)

91303-428-003

$1.83
