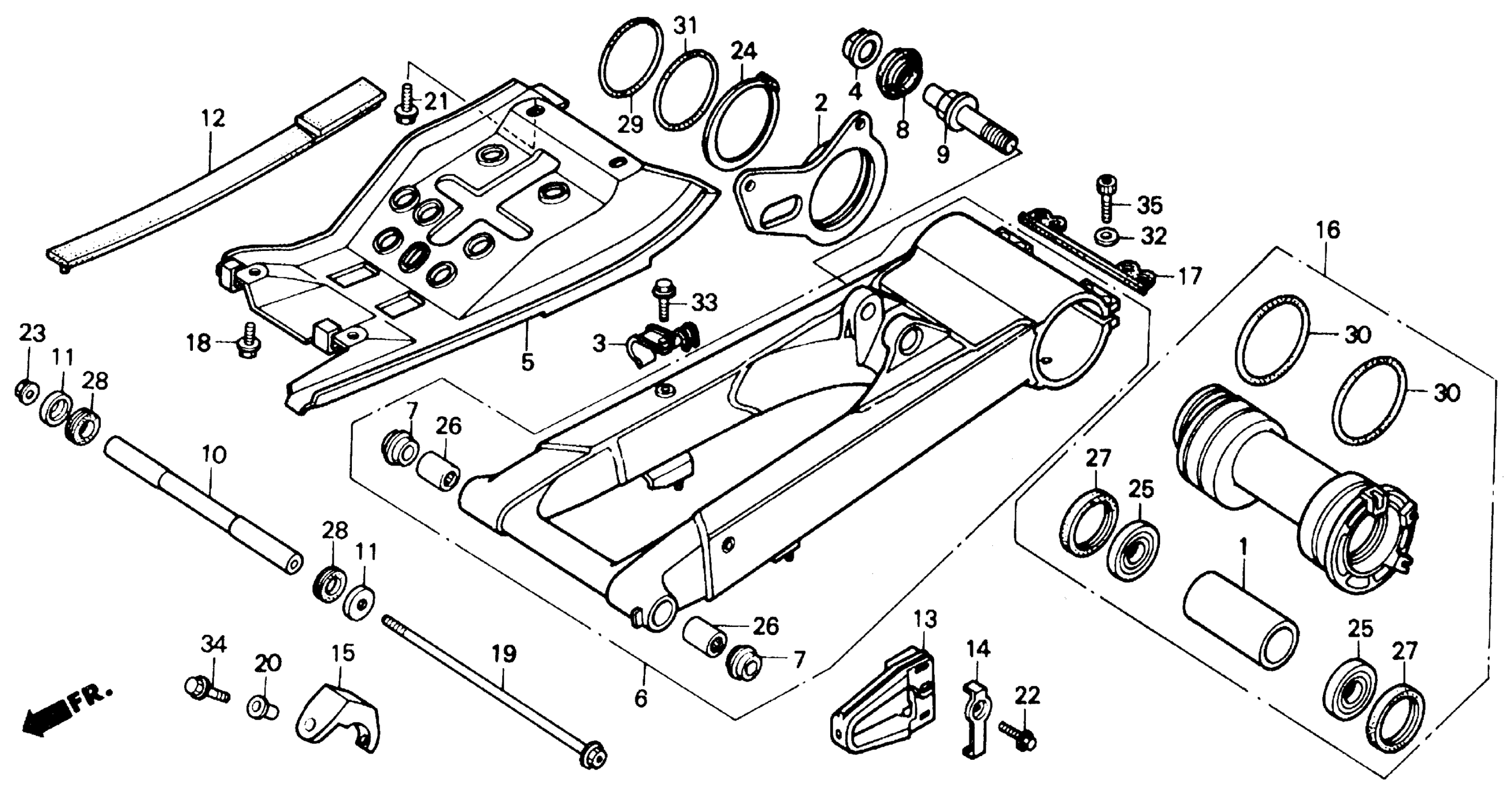

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 SWINGARM 88,89 Diagram

#

Description
Price

1

COLLAR, RR. AXLE

42621-HB9-770

$87.00

2

STAY, RR. CALIPER

43211-HB9-770

Unavailable

3

CLAMP, BRAKE HOSE

43311-HB9-770

Unavailable

4

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

5

PLATE, SKID (NOT AVAILABLE)

50355-HB9-770

Unavailable

6

SWINGARM ASSY. (WOL) | Use up to Frame SN KK301357 This part replaces 52000-HB9-770.

52000-HB9-771

Unavailable

6

SWINGARM ASSY. (WOL)

52000-HB9-771

Unavailable

7

BUSH, PIVOT THRUST

52109-HB9-771

Unavailable

8

RUBBER, SWINGARM

52111-HB9-770

Unavailable

9

BOLT, TORQUE LINK

52121-HB9-770

$13.75

10

COLLAR, SWINGARM

52141-HB9-770

Unavailable

11

CAP, DUST SEAL

52144-HA2-005

Unavailable

12

SLIDER, SKID PLATE

52156-HB9-000

Unavailable

13

SLIDER, CHAIN

52170-HB9-770

Unavailable

14

STAY, CHAIN SLIDER

52171-HB9-770

Unavailable

15

SLIDER, CHAIN (LOWER)

52175-HB9-771

Unavailable

16

HOLDER ASSY., BEARING

42500-HN1-A40

$518.69

16

HOLDER ASSY., BEARING This part replaces 42500-HN1-000.

42500-HN1-A40

$518.69

16

HOLDER ASSY., BEARING This part replaces 52200-HB9-770.

42500-HN1-A40

$518.69

17

SEAL, BEARING HOLDER

52202-HB9-770

$14.67

18

BOLT, FLANGE (8X16) This part replaces 90115-HA2-670.

90123-KV0-000

$4.51

18

BOLT, FLANGE (8X16)

90123-KV0-000

$4.51

19

BOLT, RR. SWINGARM

90117-HA2-000

Unavailable

20

COLLAR, REFLECTOR SETTING

90129-MA2-000

Unavailable

21

BOLT, FLANGE (8X18.5)

90156-HB9-770

Unavailable

22

BOLT, FLANGE (6X16)

90181-HB9-770

$2.51

23

NUT, U (14MM)

90305-GE8-003

$3.86

24

CIRCLIP (OUTER) (70MM)

90665-964-000

$13.19

25

BEARING (40X62X12)

91051-HA2-013

$35.80

26

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

27

DUST SEAL (52X62X7)

91252-HA2-003

$16.85

27

DUST SEAL (52X62X7)

91252-HB9-771

$17.87

28

DUST SEAL (27X31.8X5) (NOK) This part replaces 91253-HA2-003.

91253-HA2-005

Unavailable

28

DUST SEAL (27X31.8X5) (NOK)

91253-HA2-005

Unavailable

29

O-RING, ROTARY CASE

91351-737-752

$5.53

30

O-RING, BEARING HOLDER (81X3)

91353-HA2-670

$7.39

31

O-RING (69X2)

91302-MS2-003

$4.13

31

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

32

WASHER, PLAIN (8MM)

94102-08000

$1.49

33

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

34

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

35

BOLT, SOCKET (8X32)

96700-08032-10

$1.62
