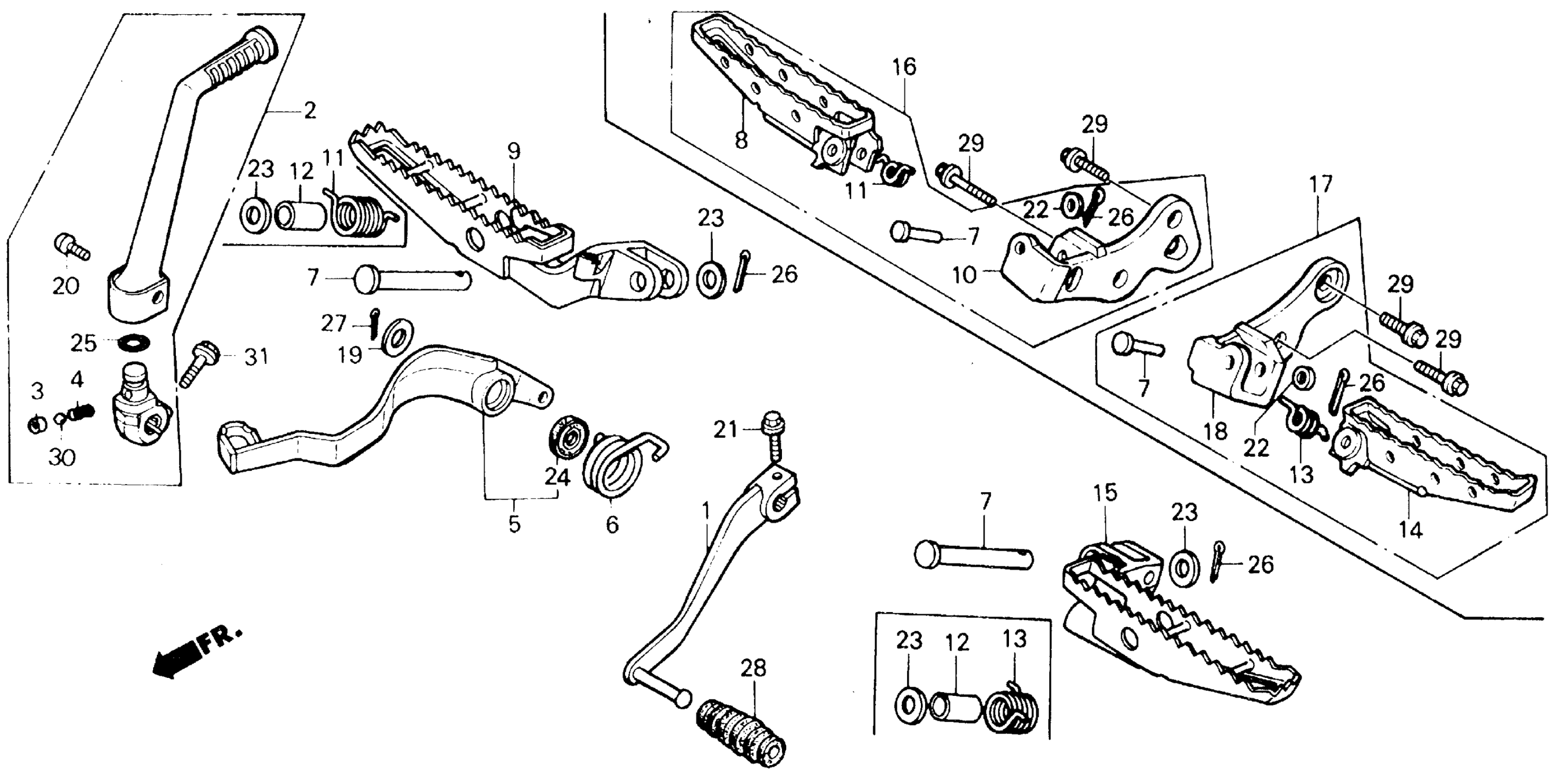

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-HB9-000

Unavailable

2

ARM ASSY., KICK STARTER

28300-HB9-770

Unavailable

3

PLUG, KICK ARM

28302-965-000

$2.59

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

PEDAL, BRAKE

46500-HB9-770

Unavailable

6

SPRING, BRAKE PEDAL

46514-HB9-000

Unavailable

7

PIN, STEP JOINT

50603-HA5-000

Unavailable

9

STEP, R.

50610-HB9-741

Unavailable

11

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

11

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

12

COLLAR, STEP JOINT (NOT AVAILABLE)

50618-HB9-770

Unavailable

13

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

13

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

15

STEP, L.

50620-HB9-741

Unavailable

19

PLATE, PILLION STEP SIDE

50715-ML4-000

$3.48

20

BOLT, KICK ARM This part replaces 90101-HB9-770.

90101-KT1-780

Unavailable

20

BOLT, KICK ARM

90101-KT1-780

Unavailable

21

BOLT, FLANGE (6X20)

90118-968-000

$4.24

23

WASHER, SPECIAL (10MM)

90432-HA2-670

$3.28

24

OIL SEAL (19X25X3)

91206-965-003

Unavailable

25

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

26

PIN, COTTER (2.0X15)

94201-20150

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, COTTER (3.0X45)

94201-30450

$1.49

28

RUBBER, SHIFT PEDAL

95011-40000

$1.49

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

31

BOLT, FLANGE (8X25)

96300-08025-07

$2.09
