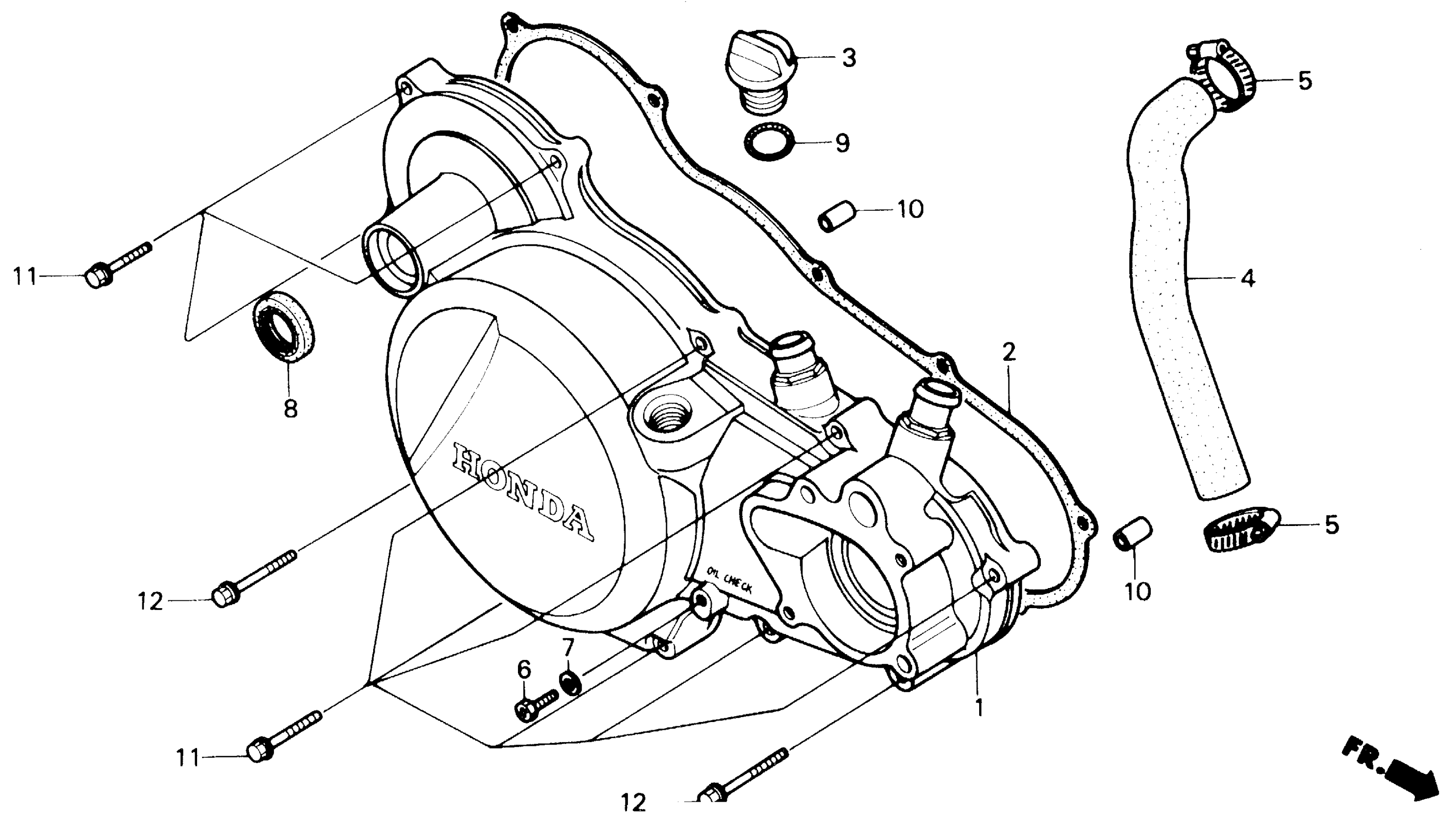

Honda TRX250RA (89) FOURTRAX 250R, JPN, VIN# JH3TE120-KK300001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11340-HB9-770

Unavailable

2

GASKET, R. CRANKCASE COVER

11395-HA2-P00

$25.60

2

GASKET, R. CRANKCASE COVER This part replaces 11395-HA2-003.

11395-HA2-P00

$25.60

2

GASKET, R. CRANKCASE COVER This part replaces 11395-HA2-306.

11395-HA2-P00

$25.60

3

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

4

HOSE, WATER

19501-HA2-000

Unavailable

5

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

6

BOLT, OIL CHECK

90037-360-000

$3.26

7

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

8

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

8

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

9

O-RING (16MM)

91303-800-000

$2.23

10

PIN A, DOWEL (8X14)

94301-08140

$2.25

11

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

12

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
